Sony WRR-862B Portable/Camera Mount UHF Diversity Dual Receiver Kit (Frequency Set 30-33)

SKU: US 619657
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

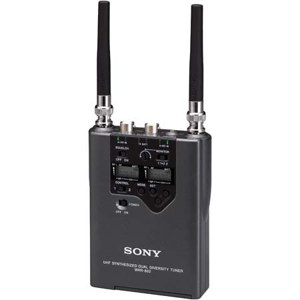

Sony WRR-862B66: Picture 1 regular
image does not represent actual item

About the Sony WRR-862B66

The WRR-862B is a two-channel (simultaneous), UHF-synthesized Dual Diversity Tuner. This affordable diversity tuner has been introduced to meet the demand for two-channel reception in ENG and EFP applications. Two space-diversity receiver modules are built in to its rugged, compact and extremely lightweight body that is made from die-cast magnesium.

This makes the WRR-862B especially suitable for mounting onto Sony professional camcorders with the supplied attachment kit/case, as well as a variety of other portable applications, including use as a redundant single channel system for "critical applications".

The WRR-862B is available on channels 14/16 (14-17), 30/32 (30-33), 62/64 (62-65) and 66/68 (66-69).

Two independent PLL synthesized diversity tuners in one compact unit. Includes built-in antenna divider. Each tuner offers 188 tunable frequencies across a 24MHz range Designed to easily mount on most Sony professional camcorders.

Includes LED A/B antenna status, battery status and AF & RF indication. LCD includes: Group, channel, frequency, squelch level, battery alarm and back-light mode. Approx. 5 hours of continuous operation (w 4 "AA" alkaline batteries). Can power from internal batteries of receive DC power directly from Sony camcorder. (with supplied cable)

Selectable between OFF, 5dBu, 10dBu & 15dBu Integrated 1/8" stereo mini-jack headphone output with variable level control, allows selection of tuner 1 only, 1 + 2 (mixed) or tuner 2 only. Provides extra dutabliity for use in extreme environments Supplied mounting hardware works with standard Sony camcorder mounting bracket (A-8278-057-A).

Sony WRR-862B66 Features

  • Two channel, Dual Diversity Tuner
  • Wide operating frequency ranges
  • 188 PLL-synthesized channels
  • Compact, lightweight
  • LED and full-status LCD indication
  • Long operating time
  • Dual power
  • Switchable RF squelch
  • Headphone monitor out
  • Rugged, die-cast magnesium, construction
  • Can be mounted to any Sony professional camcorder

Sony WRR-862B66 Specifications

Receiving frequencies 2 channels (each selectable between 188 synthesized frequencies within a 24 MHz range). Operating within the 782-806 MHz band
Reception system Space diversity, dual conversion superheterodyne
System Dynamic Range >96dB (101dB typical)
Ref/Maximum deviation +/- 5kHz, +/- 40kHz
Signal to Noise Ratio > 60dB (65dB typical) @ ref deviation
Selectivity >60dB @ +/-250kHz
RF squelch Selectable: 5dBu, 10dBu, 15dBu
Frequency Response 40Hz - 18kHz
Distortion < 1% (max deviation @ 1kHz)
Output level -58dB (@ref deviation)
Monitor output 3.5mm minijack (channel 1/2/mix-selectable)
Power requirements batteries: 4-"AA" alkaline batteries (230mA @DC 6V), External (via accessory cable 135mA @ DC 12V)
Battery life 5 hours or more
Dimensions 3/ 5/8" x 4 3/4" x 1 3/16"
Weight 14.1 oz incl batteries
