Azden
Used

Azden Dual Channel Camera Mount Wireless Microphone System - Includes: 200UPR Receiver and (2) 10BT Body Pack Transmitters.

SKU: US 606220
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

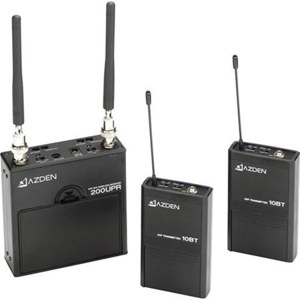

Azden Dual Channel Camera Mount Wireless Microp...: Picture 1 regular
image does not represent actual item

About this item

The 200ULT is a complete dual-channel wireless system that consists of the 200UPR receiver and two 10BT transmitters. The 200UPR receiver allows the use of two wireless transmitters at the same time. It features twin-antennas, a 3.5mm -64dbB 2-channel mic level output jack, two recessed On/Off switchs, two Power On/ Signal Received LED and 2 sets of channel selectors to set the desired frequency for each receiver.

Using crystal-control and PLL synthesis the 200UPR operates for better than 8 hours on 6 "AA" batteries. The receiver comes with a "hot-shoe" mount, a 3.5mm to 3.5mm output cable and a 3.5mm to twin XLR cable. Also included are two 10BT body-pack transmitters supplied with Azden EX-503 omni-directional lapel microphones and metal belt-clips.

In addition to the 3.5mm mic input jack the transmitter has a Power On switch with an associated LED a separate Standby switch for audio muting and a set of channel selector switches. The 10BT runs better than 8 hours on a single 9V battery.

Technical Specs

Receiver Model 200UPR
Frequency Range UHF 63-Channel Selectable (793.750 - 805.875MHz)
Type of Reception 2 Channel Receiver
Oscillator PLL Synthesized
RF Squelch Level 13dBµV
Frequency Response 50Hz - 15kHz
S/N Ratio >70dB A Weighted
Audio Distortion <1% @ 1kHz
Operating Temp. 0°C - 45°C (32°F - 113°F)
MIC Out -64dBm @ 600 Ohms W - 3.5mm Mini-Jack
Power Requirement 6 - 1.5V AA Alkaline Batteries or 12VDC @ 200mA - 6 - 8 Hours
Dimensions 105W x 105H x 35D mm (4.13W x 4.13H x 1.38D inches)
Weight Approx. 490g Including Batteries (17.28oz)
Transmitter Model 10BT Transmitter
Frequency Range UHF 63-Channel Selectable (793.750 - 805.875MHz)
Oscillator PLL Synthesized
RF Power 10mW (30mW Max.)
Frequency Response 50Hz - 15kHz
Max. Deviation ±75kHz @ 1kHz Modulation, MIC Input -11dBm
S/N Ratio >70dB "A" Weighted
Audio Distortion <1% @ 1kHz
MIC Sensitivity ±40kHz @ -22dBm MIC Input (0dBm+0.775V) - 3.5mm Mini Jack
Operating Temp. 0°C - 50°C (32°F - 122°F)
Power Requirement 1 - 9V Alkaline Battery - 6 - 8 Hour
Dimensions 62W x 100H x 22D mm (2.44W x 3.94H x 0.87D inches)
Weight Approx. 120g Including Battery (4.23oz)
