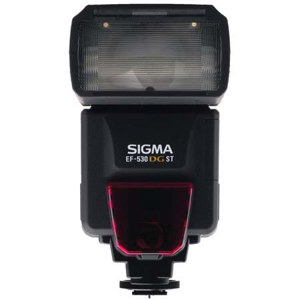

ELECTRONIC FLASH EF-530 DG ST.
EF-530 DG ST features a powerful Guide Number of 174 ft / 53m and is designed to work with the latest TTL auto exposure systems of all popular manufacturers' digital and film SLR cameras.
It features TTL automatic flash exposure control for easy operation. The auto zoom function automatically sets the optimum illumination angle in accordance with the lens' focal length in a range from 24mm to 105mm. When the built-in Wide Panel is used, the flash can cover the angle of 17mm.
For bounce flash, the flashgun head can be tilted up by 90 degrees, to the left by 180 degrees, or to the right by 90 degrees. It can also be tilted down by 7 degrees allowing ease of use for close-up photography. In addition to automatic mode, the flashgun also features a manual flash mode, making it possible to set the flash power level to full or 1/16.
When the flashgun is fully charged, a confirmation "ready" light will be emitted and the flash exposure level can be checked through the cameras viewfinder. Other features incorporated into this flashgun include the Auto Power-Off function to help save battery power.
@ 24mm - 92 ft / 28 M
@ 28mm - 95 ft / 29 M
@ 35mm - 102 ft / 31 M
@ 50mm - 132 ft / 40 M
@ 70mm - 149 ft / 45 M
@ 85mm - 158 ft / 48 M
@ 105mm - 174 ft / 53 M
|Power Source||Four AA alkaline or AA NiCd or Ni-MH (Nikel Metal Hybride) batteries|
|Variable Power||Full to 1/16|
|Recycle Time||6 seconds (when using alkaline batteries)
Approx. 4 seconds (when using NiCd, Ni-MH batteries)
|Number Of Flashes||Approx. 220 flashes (when using alkaline batteries)
Approx. 100 flashes (when using NiCd, Ni-MH batteries)
|Illumination Angle||Automatically set in accordance with the focal length of the lens, in a range from 24 mm to 105 mm. Also covers the angle of a 17-mm lens when used with the built-in Wide Panel.|
|Bounce Angle (Up)||0, 60, 75, 90 degrees|
|Bounce Angle (Right)||0, 60, 75, 90 degrees|
|Bounce Angle (Left)||0,60,75,90,120,150,180 degrees|
|Tilt angle (Down)||0, 7 degrees|
|Dimensions (W X H X D)||3.0 X 5.5 X 4.6 inch / 77 × 139 × 117mm|
|Weight||10.8 oz. / 305g (without batteries)|
