PocketWizard
Used

Pocket Wizard Minitt1 Trnsmt Canon Dslr

SKU: US 618780
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

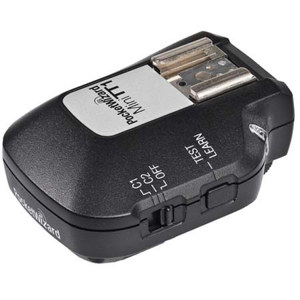

PocketWizard MiniTT1: Picture 1 regular
image does not represent actual item

About the PocketWizard MiniTT1

The PocketWizard smallest MiniTT1 Transmitter locks onto the camera's hot shoe supporting an on-camera flash with its own hot shoe while working with remote PocketWizard units. Remotes can be one or more PocketWizard FlexTT5 Transceivers connected to Canon E-TTL II flashes or any PocketWizard Receiver for triggering flash or remote cameras.

The MiniTT1 Transmitter is easy to use; just slide in place and begin to shoot. The new PocketWizard ControlTL System interprets the complex E-TTL II data being sent through the camera's hot shoe and digitally transmits it in a reliable radio signal. Change the flash compensation dial on the camera and those commands pass seamlessly through the system to your remote flash. Adjust your shutter speed, aperture or ISO and the system corrects for those changes.

A ratio command set on the flash or command unit passes through the MiniTT1 to set the remotes. PocketWizard ControlTL radio communication allows you to shoot farther, faster, around corners, through walls even at high noon in bright daylight. Now you can deploy a wireless flash system wherever you want, without infrared limitations, in seconds.

Use the MiniTT1 for standard triggering with any PocketWizard Receiver including the FlexTT5, PlusII or MultiMAX. When used this way with a digital camera, you can take advantage of PocketWizard's HyperSync Technology that allows up to 1/500th of a second camera sync with many camera/strobe set-ups. HyperSync allows you to advance the timing of your flash trigger so that faster then X-sync speeds can be achieved.

A new PocketWizard Utility program is provided to support the MiniTT1 via a USB port. The Utility allows you to configure your channel settings, dial in your HyperSync timing, adjust your sleep-mode timers and update your product to the latest firmware.

The PocketWizard MiniTT1 Transmitter is the start of a new era in wireless trigger control.

The PocketWizard MiniTT1 is commonly used for Family photos, Landscape/scenery, Portraits, Sports/action, Travel, Weddings, Wildlife photos and more.The PocketWizard MiniTT1 is most used by customers who consider themselves to be a Semi-pro photographer among others.The PocketWizard MiniTT1 is popular because customers like the following qualities of the PocketWizard MiniTT1: Easy to use, Lightweight, Packs small / compresses, Reliable and Strong construction.

PocketWizard MiniTT1 Features

  • PocketWizard's newest firmware platform taps into the camera's digital communications to enable an entirely new level of remote flash capabilities through proven radio system, beginning with remote TTL for Canon E-TTL II systems.
  • Dedicated E-TTL II Triggering
  • Change any of your control settings on your flash or camera and the system adjusts for those changes. Change your flash compensation to tweak the exposure or make adjustments in shutter speed, aperture or ISO and the system communicates the changes to your flash.
  • Eight Frames per Second
  • HyperSync allows photographers to achieve faster X-sync speeds, up to 1/500th second, with full power flash. Now you can cut the ambient light and use wide-open apertures, outdoors in bright sunlight. HyperSync works with TTL speedlights and full size studio flash.
  • FP/High Speed Sync
  • The MiniTT1 Transmitter is the smallest PocketWizard ever, utilizing an internal antenna and common coin-cell battery. At just 2.3oz (65 grams) you barely realize it's on the camera.
  • Built-in Hot Shoe
  • The MiniTT1 operates on the same channels as all other PocketWizards and will work with any unit you may already have.
  • The MiniTT1 has two channel configuration settings; C1 and C2. Each can be programmed as needed with up to 20 ControlTL channels for TTL photography, or 32 standard channels for manual flash photography. TTL and manual flashes can be combined in a lighting situation.
  • Use the supplied PocketWizard Utility software with the on-board USB port to program the MiniTT1 to any PocketWizard channel and zone as well as many other custom settings. The MiniTT1 can be upgraded whenever updates and feature enhancements are available (many planned!).
  • The MiniTT1 Transmitter will go to sleep 10 seconds after your camera does to conserve energy. Just touch the shutter button half way to wake both the camera and the MiniTT1. It works on the supplied CR2450 coin cell battery that provide hundreds of hours of battery life.

PocketWizard MiniTT1 Specifications

TTL Compatibility Canon E-TTL II
Frequency 340 - 354 MHz
Channels 52 Channels over 26 Frequencies
Antenna Internal
Transmit output power Less than 0.001 watt (1/1000 of a watt or 1 milliwatt)
Maximum Range (In optimum conditions) 800 feet (240 Meters) for E-TTL II triggering
1200 feet (365 Meters) for standard triggering
Mounting Hot-shoe only
Maximum Shooting Rate 8 fps for E-TTL II & normal triggering
Power / Channel Switch OFF - C.2 - C.1
Status Indicator LED, Green, Amber, Red status indications
Voltage Present 3.3 VDC (all pins) - safe for all cameras
Hot Shoe voltage protection Hot Shoe: up to 50V
USB USB Compliant 2.0, Mini-B Connector
Operating Temperature above -15C (5 F) and below 50 C (120 F)
Storage Temperature (without battery) above -30 C (-22 F) and below 85 C (185 F)
Construction High impact plastic, captive battery door
Hot shoe made of glass reinforced resin
Power 3 V Lithium battery, CR2450 (included) or CR2354 Lithium coin cell type
Battery Life Hundreds of hours of camera "awake time" depending on shooting habits
Dimensions 2.8" (7.1 cm) long x 1.9" (4.9 cm) wide x 1.3" (3.3 cm) tall
Weight 2.3 oz (65 grams), 2.0 oz (57 grams) without battery
Warranty PocketWizard 1 year limited warranty
