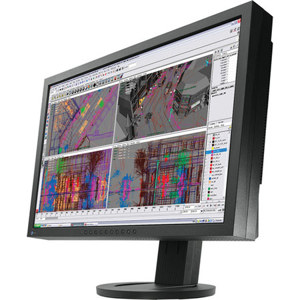

Eizo SX2262W: Picture 1 regular
image does not represent actual item

About the Eizo SX2262W

The FlexScan SX2262W 22" LCD Computer Display from Eizo is a high-quality computer monitor built with color-critical applications in mind. The display supports a wide color gamut - at any instant, it is capable of displaying 16.77 million colors from a palette of 278 trillion via either of its DVI input ports. When you connect it via DisplayPort, it can display 1.07 billion colors simultaneously from the same palette. It features a 1920 x 1200 native resolution, 1000:1 contrast ratio, 280cd/m2 brightness rating, 12ms response time and 178deg./178deg.viewing angles.

An integrated 2-port USB 2.0 hub makes it easy to connect peripheral devices to the display. A number of preset modes, including an eco mode that adjusts brightness based on ambient light, are available for your convenience. The display can connect to your computer via DVI-I, or DisplayPort. It ships with a FlexStand desktop stand that features adjustments for height, tilt, swivel and pivot.

Eizo SX2262W Features

  • Wide Color Gamut: The monitor reproduces 95% of Adobe RGB color space so it can display most colors in a digital photo taken in Adobe RGB mode. It also has an sRGB mode to accurately reproduce colors in this narrower but commonly used color space, such as those seen on web pages taken in sRGB mode
  • High Resolution Screen: The FlexScan SX2262W features a 1920 x 1200 native resolution. Compared to the 1680 x 1050 native resolution of most 22" monitors, this is approximately 30% more information in the same amount of screen space
  • Three Inputs Including DisplayPort: Connect with up to three PCs via the monitor's dual DVI-I inputs which accept digital and analog signals and the DisplayPort (digital) input terminals. DisplayPort is next-generation connectivity that transmits both video and audio signals
  • 10-bit Simultaneous Display: The monitor can display 10-bit color from a 16-bit look-up table via its DisplayPort input. This is more than 1 billion colors shown simultaneously which is 64 times greater than the 16.7 million colors of 8-bit display
  • Brightness and Color Uniformity with DUE: Fluctuations in brightness and chroma on different parts of the screen are characteristic of LCD panels. Generally, the larger the screen, the more noticeable these uniformity errors become
  • Preset Modes: To ensure you get the right settings without having to fiddle with the OSD menu, this monitor comes with three customizable preset modes for assigning your own values for brightness, contrast, color temperature and gamma
  • Detailed Color Control: The OSD menu and bundled ScreenManager Pro for LCD software offers adjustment of brightness, gamma, saturation, hue, gain and color temperature from 4000K to 10,000K in 500K increments
  • More Effective Software Calibration: In creative design work, Software Calibration is typically necessary to achieve accurate color values. The FlexScan SX2262W, however, already provides extensive color adjustment functions in the OSD menu
  • Brightness and Color Temperature Stability: To ensure proper display of color, the FlexScan SX2262W comes equipped with patented Eizo technology that stabilizes the monitor's brightness level after startup or coming out of power saving mode
  • Fast Response Time: An overdrive circuit is included to reduce gray-to-gray response time to 5ms and ensure that movies and other moving images look clean and sharp with an absolute minimum of blurring and ghosting
  • Placement Flexibility: The FlexScan SX2262W comes with a "FlexStand" that offers tilt, swivel, 90 Deg. rotation for portrait mode viewing and 6.9" (17.4cm) of height adjustment. Its innovative, bearing-less design reduces mechanical wear and the amount of torque required to adjust height
  • Scale Non-Native Resolutions to Full Screen: When working at less than native resolution or aspect ratios other than 16:10, you can use the scaling function to enlarge your work proportionally or expand it to fill the screen. You can then smooth or sharpen the image in five increments
  • Color Vision Deficiency Simulation: To avoid creating inconveniences and even dangers for those with color vision deficiency, care must be taken when choosing color schemes for everyday items such as maps, road signs, web sites and power indicator lights
  • Optimized Brightness with Auto EcoView: A sensor on the front of the monitor measures ambient light and optimizes the screen's brightness to ensure the screen is never too bright or too dark. If preferred, Auto EcoView can be deactivated in the OSD menu
  • On-Screen Button Guide: Graphics professionals often work in a dimly lit environment which can make it difficult to read a monitor's adjustment buttons. The SX2262W, however, includes an on-screen button guide that labels what each of the buttons are for so you can easily navigate the OSD menu
  • Energy and Environmental Efficiency Index: A user-activated EcoView Index displays the level of power savings and equivalent amount of C02 reduction compared to using the monitor without Auto EcoView activated and with the screen set at a brightness of 100%
  • Simple Color Matching with Eizo EasyPIX: With the EasyPIX software you can match the monitor's color and brightness with that of the photo paper and then create a monitor profile with the bundled EX1 color sensor

Eizo SX2262W Specifications

Panel Size 22" / 56 cm (558 mm diagonal)
Active Display Size (H x V) 473.8 x 296.1 mm
Panel Type VA (with overdrive circuit)
Viewing Angles (H, V) 178 Deg., 178 Deg. (at contrast ratio of 10:1)
Brightness 280 cd/m2
Contrast 1000:1
Response Time (Typical) Gray-to-gray: 6 ms, black-white-black: 12 ms
Native Resolution 1920 x 1200 (16:10)
Pixel Pitch 0.247 x 0.247 mm
Display Colors DVI: 16.77 million from a palette of 278 trillion
DisplayPort: 1.07 billion from a palette of 278 trillion
Wide Gamut Coverage Adobe RGB: 95%, 92% vs. NTSC
Look-Up Table 16 bits per color
Dot Clock Analog: 170 MHz, Digital: 164.5 MHz
Analog Scanning Frequency (H, V) 31 - 76 kHz, 49 - 86 Hz
Digital Scanning Frequency (H, V) 31 - 76 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Video Input Terminals DVI-I 29 pin x 2 (with HDCP), DisplayPort (with HDCP)
USB Ports / Standard 1 upstream, 2 downstream / USB 2.0
Plug & Play VESA DDC 2B
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Power Consumption 45 W (typical)
90 W (maximum)
Power Save Mode Less than 0.9 W
Height Adjustment Range 174 mm
Tilt / Swivel / Pivot 30 Deg. Up, 0 Deg. Down / 172 Deg. Right, 172 Deg. Left / 90 Deg.
Preset Modes Color Mode (Text, Picture, Movie, sRGB, User1, User2, User3), Auto Fine Contrast
EcoView Settings Auto EcoView, EcoView Index
Screen Adjustment Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal)
Color Adjustment Brightness, Contrast, Independent 6-Color Control, Gamma, Temperature, Saturation, Hue, Gain, Contrast and Outline Enhancer, Reset
Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a and DVI DMPM), Eco Timer
Certifications and Standards CUDO certified mark, TCO'03, TUV/Ergonomics (including ISO 9241-307 [Pixel fault class I]), TUV/GS, c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, RoHS, WEEE, CCC, GOST-R
Dimensions (W x H x D) With Stand: 20.1 x 13.7 - 20.5 x 9.5 - 10.1" (51.1 x 34.8 - 52.2 x 24.1 - 25.6cm)
Without Stand: 20.1 x 13.1 x 3.4" (51.1 x 33.3 x 8.5cm)
Weight With Stand: 23.6 lb (10.7kg)
Without Stand: 14.6 lb (6.6kg)
