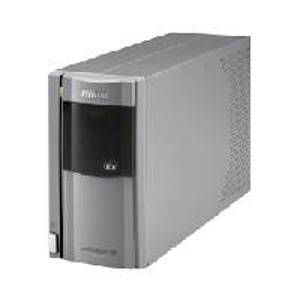

oolscan IV ED, a high quality, high-speed desktop film scanner that offers 35mm SLR camera owners the ability to scan, enhance, catalogue, preserve and restore images from positive and negative film. An affordable desktop film scanner with the features, technology and quality previously only available in high-end film scanners, the Nikon Coolscan IV ED is designed for photo enthusiasts who are looking to digitize their images for a variety of applications, such as sending photos by e-mail, designing web pages, or archiving and cataloguing images to preserve memories captured on film.
Nikon Scan 3.0 software gives photographers the option to scan images with push button simplicity or extend their creative control through the use of Applied Science Fiction's Digital ICE3 technology for color and defect correction and enhancement of scanned images.
The ideal complement to any SLR, including the Nikon F5, F100 and N80 35mm cameras, the Nikon Coolscan IV ED is an integral component of the Nikon Total Imaging System (TIS) of 35mm cameras, lenses and accessories, offering photographers a complete imaging solution for bridging the gap from 35mm and Advanced Photo System (IX240) film to digital technology.
The ease of use for the Coolscan IV ED is extended to include not only the actual digitizing of images, but to the general set-up. The scanner offers "out of the box" plug-and-play simplicity through Nikon Scan 3.0 software, which acts as an interface between the scanner and computer, making it possible to preview the image to be scanned, adjust scanner settings and scan the image. Nikon Scan 3.0 offers unprecedented control with features and qualities that are familiar to Adobe Photoshop users.
The Nikon Coolscan IV ED permits a variety of options for enhancing and restoring scans of positive and negative film, depending on the user's level of expertise. Through Nikon Scan 3.0, a new scene analysis function automatically corrects tone and color in negatives. In addition, Nikon's sophisticated Color Management System ensures colors from the scanner are reproduced accurately on different output devices such as printers and monitors.
The Color Management System, which works in tandem with ColorSync on the Mac OS platform and ICM 2.0 on the Windows platform, allows users to scan and deliver the image directly into Photoshop in any of ten popular color working spaces. The software also offers the option of autofocus with manual override.
Users can scan 35mm film in just 42 seconds and optionally scan Advanced Photo System (IX240) film and prepared Microscope slides. The Coolscan IV ED features a high resolution of 2,900 dpi with 68.7 billion colors in 36-bit color with files sizes up to 68MB.
|Scanner Type||35mm film scanner|
|Image sensor||2,870-pixel monochrome linear CCD|
|Film types||35mm/Advanced Photo System Film (IX240)(Advanced Photo System adapter optional), Slide glass for microscope (with optional adapter) (positive, negative, color, or monochrome)|
|Optical Resolution||2,900 dpi|
|Maximum Resolution||see above no interpolation|
|Color depth||16-bits, 8-bits per color channel (user selectable)|
|Illumination||R, G, B and D-LED Array|
|Focus system||Autofocus and Manual Focus|
|Scan speed||Approx 42 seconds at 2,900 dpi (35mm), 8-bit output (typical scan time with display, Windows, CMS off)|
|Batch scanning||35mm (135) strip film; 2 to 6 frames, IX240 film cartridge; 15,25,40 frames (with optional adapter)|
|Power requirements||100-240 VAC, 0.3-0.2A, 50/60Hz|
|Dimensions||3.7 x 6.6 x 12.4 in. (93 x 169 x 315mm)|
|Weight||6.6 lbs (3kg)|
|System requirements||Mac OS 8.6-9.2.2, only built-in USB supported
Windows 98 Second Edition, Windows Me, and Windows 2000, Windows XP (must use Nikon Scan 3.1.2 or later for XP), only built-in USB supported
|Special features||Digital ICE¦: Digital ICE - automatic removal of surface defects; Digital ROC - automatic restoration of lost color values and exposure correction; Digital GEM - automatic minimization of film grain in scanned images
Color Management System: Built in; uses standard ICC profiles to color match across input devices. Apple ColorSync and Microsoft ICM
