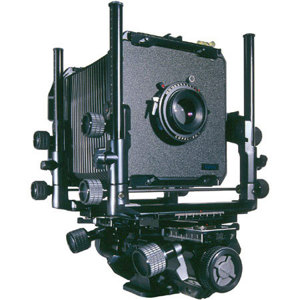

Toyo 45GII: Picture 1 regular
image does not represent actual item

About the Toyo 45GII

The workhorse of traditional view cameras, the 45GII is at the heart of the Toyo G Series modular camera system. It's heavy duty all-metal construction, easy to operate center tilt design, and precise all-geared movements with dual locking system make it the industry standard for quality, function and value. The 45GII features Toyo's 360° Non-vignetting Revolving Back, geared fine focus, geared rise, and geared shift in front and rear, and fully interchangeable bellows. The modular frame and rail design allows conversion to 5x7 or 8x10 with full compatibility of accessories.

Toyo 45GII Includes

  • Box

Toyo 45GII Features

  • Heavy duty, all-metal, modular system studio cameras with precision geared focus, rise & shift
  • Non-vignetting 360° Revolving Back with Easyload Bail Arm accepts all type cut film, Polaroid 545 & 550 holders, 6x7, 6x9 and 6x12cm roll film holders
  • Wide frame design utilizes 158mm square lens boards and minimizes internal vignetting
  • Pro black matte finish
  • Interchangeable G/GX 39mm diameter Monorails
  • Uses all TOYO G system accessories
  • Rack and pinion Micro-fine focusing
  • Center tilt maintains focus as you tilt
  • Geared rise
  • Geared shift
  • Independent locks on all movements

Toyo 45GII Specifications

Type Monorail System View Camera
Format 4x5
5x7 or 8x10
6x7, 6x9 and 6x12cm
Camera Movements -
Rise 145mm
Swing 60°
Tilt 80°
Lateral shift 70mm
Back swing 60°
Back tilt 80°
Camera back Non-vignetting 360° Revolving Back
Bellows Interchangeable bellows
Bellows extention 485mm
Tripod socket 1/4" and 3/8" tripod sockets
Lens panel Toyo 158x158mm Flat or Recessed Board, or misc Lensboard Adapters
Sprit level Dual Axis Spirit Level
Dimentions 10.5 x 13 x 11" (266 x 340 x 291mm) LxWxH
Weight 12.1 lbs
