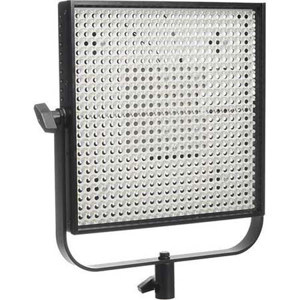

The Litepanels 1x1 Bi-Color has two groups of LEDs (Light Emitting Diodes) set in the one-foot by one-foot square fixture: one group of emitters is comprised of Litepanels proprietary 3200°K LEDs, one of 5600°K LEDs. The fixture is therefore able to supply either tungsten or daylight balanced light and can also provide any color temperature between tungsten or daylight by simply cross-fading between the two groups of LEDs.
The Bi-Color also offers a master dimmer dial that provides intuitive dimming control with no noticeable color shift. Color temperature is also controlled through a separate dial. Both dimming and color temperature can also be controlled via the new integrated DMX feature. To further expand the 1x1 Bi-Color's flexibility, the fixtures can vary the mix between tungsten and daylight LEDs to set the resulting color temperature to any point between 3200°K and 5600°K. Color temperature can be dialed in by using either the onboard dial or digital color temperature settings, or via a DMX lighting controller.
Thus the Bi-Color user can make quick adjustments to match unusual mixes of color temperature, or to enhance skin tones. 1x1 Bi-Color LED fixtures feature Litepanels' fullrange integrated dimmer that enables instant dimming from 0 to 100 percent with minimum shift in color. It provides the same low power requirements, less than 10 percent of the electricity needed to power standard lighting fixtures. Because Litepanels fixtures generate practically no heat at all, there is an additional savings in the energy required for air conditioning.
|Power draw||45 watts @ 12-30 V|
|Power Supply Cord||6' AC|
|LEDs||3200°K and 5600°K|
|Size||12" W x 12" H x 1.75" D (30.48cm x 30.48cm x 43mm)|
|Weight||3 lbs (1.36 kg)|
|Warranty||Litepanels 1 year limited warranty|
