Mamiya M645 AFD Medium Format SLR Camera Value Pack Body w/Lens And Film Back.

SKU: US 692618
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

We’re sorry, this item is no longer available. See similar Items
In Stock

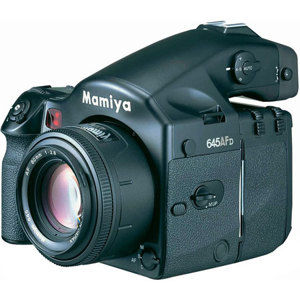

Mamiya M645 AFD Medium Format SLR Camera Value ...: Picture 1 regular
image does not represent actual item

About this item

The Mamiya 645AFD is the world's first true cross-platform camera. Whether you're shooting film or digital, it is the most technologically advanced medium format camera. Responding to the most demanding photographers, the 645AFD is loaded with over 30 enhancements as compared to the original 645AF. Handling like a 35mm SLR, it incorporates features found only on sophisticated 35mm cameras, yet it offers the advantage of a format that's 2.7X larger than 35mm. Ready to conquer the digital world, the 645AFD offers exclusive data transfer from the camera to the digital back utilizing its digital intelligence via MSC (Mamiya Serial Communication). All exposure and digital capture information is displayed in both the viewfinder and main LCD panel on the camera. With exclusive Infrared Autofocus Assist and 10 World-Class AF lenses including 2 zooms, you get the best for both worlds. Choose interchangeable film magazines for 120, 220 or Polaroid film' or, switch to digital capture just by changing the back without changing your entire camera system. Sound extraordinary' It is. The Mamiya 645AFD... Part of your Future. Film or digital.

Technical Specs

Camera Type Medium Format SLR (Single Lens Reflex) Camera
Format 6x4.5cm format (actual image size 56x41.5mm)
Lens Mount Mamiya 645 AF Mount
Compatible with M645 mount (manual focus confirmation, focus aid, stop-down exposure metering)
Viewfinder Fixed prism viewfinder magnification x0.71
Info: Focus mark, Out-of-focus direction marks, Aperture value, Shutter speed, Metering mode (A, S, A/S), Exposure compensation value (difference between set value and actual value), Flash Ready/OK, AE Lock, Bracketing Position
LCD On camera body shows: Aperture value, Shutter speed value, AEL

Battery check, Programmed AE, Programmed AE shift value, Data imprinting mode, Flash Compensation Indicator (Over/Under), Auto-Bracketing indicator

Multiple Exposure indicator, Self-Timer indicator

On Interchangeable Film Magazine Shows: ISO speed, Type of film (120 or 220), Exposure number
Focus Type TTL phase-difference detection type
Focus Screen Interchangeable: Matte (supplied with camera)
Grid (Checker)
Manual Focus Microprism for M645 lenses
Exposure Compensation +/-3 EV (1/3 step)
Exposure Metering 5-segment evaluative center-weighted average (AV) with bright point elimination Spot (S)
Variable Ratio Auto-Shift (A-S)
Exposure Bracketing Enabled with MODE button (1/3,1/2, 2/3 and 1-step units) active until deselected
Metering Range EV 2 to EV 19 (with ISO 100 film, f/2.8 lens)
Shutter /Release Electronically controlled vertical metal focal-plane shutter
Speeds AE 30 to 1/4000 sec. (1/8 step)
Manual 30 to 1/4000 sec. (1/2 step)
X (locks shutter speed to 1/125th sec. while allowing for full control of aperture values)
B (Bulb, electronically controlled)
T (Time, mech. controlled)

/screw-in cable release on shutter button; Remote-Control Terminal on left side of the body: Cble Release RE401 (#211755) 5m and coiled; Cble Release RE402 (#211754) 1m and is straight.
ISO Range ISO 25 to 6400
Flash sync 1/125 sec. or slower, automatically sets to 1/125 when shutter speed dial is set to higher speeds (when Metz flash unit is used). In P mode, the shutter speeds are controlled to 1/125 1/60 sec.
Film Transport Automatic via built-in motor, single or continuous exposures 1.2 frames per second.
Date/Time Yes, Year
Tripod Socket 1/4 inch and 3/8 inch included
Diopter Correction Built-in Diopter adjustment -2.5 to +0.5 (separate diopter correction lenses provide adjustment ranges of -5 to -2 and 0 to +3)
Self Timer 3 to 60 sec. (default setting: 10 sec., can be set in 1 sec. steps between 3 and 10 sec., and in 10 sec steps between 10 and 60 sec.)
Remote Control Terminal On side of body (works with remote triggering devices and electromagnetic cable releases)
PC Terminal X contact (sync speed 1/125th sec. and slower)
Depth Of Field Preview Preview button on front of camera, aperture can be changed during DOF check
Mirror Lock Up Yes, via Mirror Lock Switch on body
Multiple Exposure Enabled with MODE button (2 to 6 exposures); can be cancelled. More exposures may be dialed in before exposure set is complete.
Custom Functions The "FUNCTION" key and "F1" key are data imprint function settings to turn viewfinder indicators on and off, and to turn the dial lock on and off. The "F2" key sets the date and time and initializes the index number. For each setting, a digital dial is used in combination with the "SET" button, which can be used alone to check current settings.
Power Source 6 AA batteries (alkaline-magnesium or lithium)
Dimensions 6"(W) x 5"(H) x 7"(D) (153 x 128 x 184mm)
Weight 61oz. (1730g). w/o batteries
Special Features 3 CCD line sensors (area indicated on the focusing screen)
