Manfrotto
Used

Bogen 303sph Qtvr Spherical Pan Head

SKU: US 613257
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

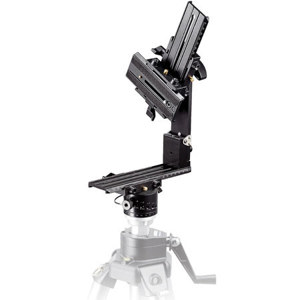

Manfrotto 303SPH: Picture 1 regular
image does not represent actual item

About the Manfrotto 303SPH

Further advances in software technology made it possible to stitch together photographs taken on more than one horizontal row, in order to create immersive 360° x 360° "cubic" or "spherical" panoramic VR environments. This in turn has led to demand from the market for a dedicated support system, capable of rotating ANY camera (traditional or digital) around its nodal point on both horizontal and vertical axes.

The answer is the 303SPH Multi Row Pan Head. Taking advantage of the introduction of this new head, Manfrotto/Manfrotto has re-designed some of the key components of the existing range, starting from the heart... the 300N pan head (old code: 3414), which is used as the rotation unit for all models in the family, as well as being a stand-alone product.

The 303SPH is a multi-row (spherical) panoramic photography head. It has sliding plates to position the camera over the panoramic axis of rotation, plus a sliding plate which rotates around the front/back tilt axis. This allows the camera to be rotated on both horizontal and vertical axes around the camera/lens nodal point, so multi-row panoramic photo sequences (cubic VR photos) can be taken accurately and easily.

Using the 303SPH ensures that software used for photo stitching produces a precisely composed VR environment with minimum post-production intervention or software correction.

The 303SPH's vertical bracket can be unlocked and rotated through 90° (then re-locked) so that the head takes up less space in transport, and so that the sliding plate mechanisms are protected against knocks and bumps. The 303SPH comes complete with a extra set of sliding plates for use with cameras of different sizes.

The Head weighs 4.4 lbs and is 12.5" high , its dimensions are 10.3" x 5.5" x 7.8", with a maximum load capacity of 8.8 lbs.



Manfrotto 303SPH Features

  • Suitable for:
    Multi Row Cubic / Spherical Panoramas
    Mono row Panoramas
    Object Panoramas
  • Three sliding plates for precise nodal point positioning on all planes/axes.
  • Short plates included for more convenient use with compact cameras.
  • Long plates included for use with larger SLR or medium format cameras.
  • Camera attachment via 1/4 - 20" and 3/8" male screw.
  • 3/8" female tripod fitting.
  • Dual graduated scale to set the angle of rotation to any of the following: 90°, 60°, 45°, 36°, 30°, 24°, 20°, 15°, 10°, 5° (respectively equivalent to 4, 6, 8, 10, 12, 15, 18, 24, 36, 72 photos to achieve a full 360° rotation) - on upper part of 300N rotation unit.
  • Graduated scale from 0° to 360° on lower part of 300N rotation unit.
  • By removing vertical brackets, the 303SPH can also be used as an object turntable.
  • Vertical bracket folds down and removes for compact size during transport.
