Panasonic AVCCAM AG-AF100 Micro 4/3's Professional HD Camcorder (105 Hours)

SKU: US 683216
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

We’re sorry, this item is no longer available. See similar Items

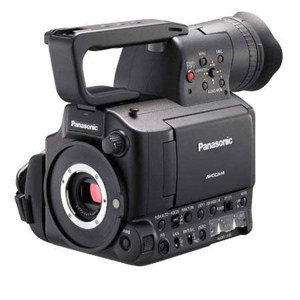

Panasonic AVCCAM: Picture 1 regular
image does not represent actual item

About the Panasonic AVCCAM

Panasonic's AG-AF100 Micro Four Thirds Professional HD Camcorder represents an impressive leap forward in affordable, cinema-quality video imaging. Providing all the professional features expected in an interchangeable-lens camcorder--manual video and audio control, variable frame rates, HD-SDI and HDMI output, XLR inputs, timecode--the AG-AF100 plays its trump card with a large, 4/3"-type image sensor. At 13 times the size of comparably priced 1/3" sensors (and almost 4 times larger than the 2/3" sensors found in cameras costing more than twice as much), the AG-AF100's sensor brings the richness of DSLR video into a professional form factor.

Until now, if you wanted a camera that could shoot video with the deep colors, enhanced light sensitivity, and shallow depth-of-field achievable with large-sensor imaging, you had one of two options: an ungainly DSLR kitted out with any number of expensive support accessories, or access to a large bank account. The AG-AF100 not only delivers the image quality, versatility, and control that professional shooters have been clamoring for, but at a price well within most pro-level budgets. No doubt about it: the large-sensor, interchangeable lens camcorder has finally arrived!

Panasonic AVCCAM Features

  • 4/3"-type Image Sensor with Digital Still Camera Technology: The same digital single lens still camera technology that's gathering widespread attention for its innovative techniques has been applied to this camcorder
  • Micro Four Thirds Lens Mount: A wide variety of lenses for Micro Four Thirds standard digital SLR cameras can be used for shooting movies. With the mount adapter, it's also possible to mount 35mm film camera lenses and prime lenses, for rendering images that maximize lens characteristics
  • Extended Recording in AVCHD High-Quality PH Mode: The AVCHD recording format used by the AG-AF100 includes a professional PH mode with maximum AVCHD bit rate for stunning image quality. Two SD card slots allow continuous recording for up to 12hrs PH mode/48 hours in HE mode (2 - 64GB cards)
  • Multi HD Format & New VFR Recording Function: Recording can be made in multiple HD formats: 1080 60i/50i/30p/25p/24p; 720 60p/50p/30p/25p/24p. The new VFR (Variable Frame Rate) recording function in full HD (1920 x 1080) progressive mode is also supported
  • A Professional Design with HD-SDI, XLR & Other Interfaces: The AG-AF100 features HD-SDI and HDMI output, XLR 2-channel audio input and other interfaces that are typically found on professional camcorders. Timecode recording also supports precise video production
  • Design Based on Professional Camcorders: The professional camcorder design with grip, handle, large-sized high quality viewfinder (0.45" / 1.226 million dot equivalent [852 x 480 x 3 (RGB)]) on a lightweight, compact body
  • High-definition 16:9 color LCD panel (3.45" / 921,000 dot (1920 x 480)) supports smooth camera operation
  • Internal ND filter: 1/4, 1/16, 1/64 or Off (rotary switch)
  • Focus-assist function: edge coloration, focus bar display
  • DRS (Dynamic Range Stretch): automatically reduces compression of black or blown highlights in high contrast scenes
  • Thumbnail viewing, clip deletion and SD card to SD card copying and metadata recording functions
  • Pre-rec and Interval rec functions
  • Relay recording: Relay recording from one SD card to another without interrupt
  • WFM display function: the wave form of the video being recorded is easily displayed on an LCD monitor
  • Shot mark function: the useful shot mark function allows marking of clips as good, bad or others
  • User buttons: three user buttons allow high-frequency functions to be performed with a single push
  • Audio volume: allows manual adjustment of audio inputs (2 ch)
  • Pre-record
  • Intervalometer function that can be set for up to 24 hours
  • Smart Battery interface for recording up to four hours with a 5400mA battery
  • Metadata recording

Panasonic AVCCAM Specifications

Image Device 4/3"-type MOS (2x 35mm Crop Factor)
Video Recording System NTSC/PAL, AVCCAM (AVCHD) at 24Mbps (max), 4:2:0 Color Space
Built-in Filters Neutral Density 1/4, 1/16, 1/64 or OFF (rotary switch)
Recording Modes: PH 1920 x 1080 / 1280 x 720
21Mbps (average), 24Mbps (max)
LPCM/2ch or Dolby Digital/2ch
Recording Modes: HA 1920 x 1080
17Mbps (average)
Dolby Digital/2ch
Recording Modes: HE 1440 x 1080
6Mbps (average)
Dolby Digital/2ch
Maximum Recording Time PH Mode: approx. 720 mins
HA Mode: approx. 960 mins
HE Mode: approx. 2880 mins (Using 2 64GB SDXC Cards)
Video Formats 1080: 1080/60i, 1080/50i
Only in PH mode: 1080/30p (over 60i), 1080/25p (over 50i), 1080/24p (native)
720 (only in PH mode): 720/60p, 720/50p, 720/24p (native), 720/25p (over 50i), 720/30p (over 60i)
Frame Rates 12p, 15p, 18p, 20p, 21p, 22p, 24p, 25p, 26p, 27p, 28p, 30p, 32p, 34p, 36p, 40p, 44p, 48p, 54p, 60p
Inputs/Outputs HD-SDI: BNC (x1 Output)
HDMI: HDMI Type A (x1 Output)
USB: USB 2.0 Type B (x1)
Line/Mic: XLR +48V (x2 Input)
Audio L/R: RCAx2 (x1 Output)
Headphone: 3.5mm Mini Jack (x1 Output)
Remote: Super Mini Jack (x1 Input)
Memory Card Slot (2) SD/SDHC/SDXC Slots
Power Requirements 7.2VDC
Power Consumption 12.5W
Dimensions (W x H x D) 6.4" x 7.7" x 8.3" /16.3 x 19.5 x 21 cm
Weight 2.64 lbs / 1.2kg
