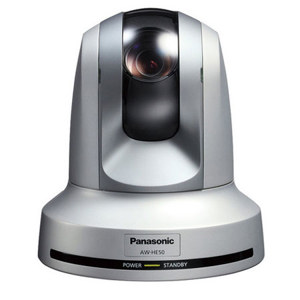

The Panasonic AW-HE50SN 1/3" Full HD MOS Integrated PTZ Camera is an all-in-one unit that forms the key component in a complete IP and Serial-control capable system. The integrated pan-tilt-zoom mechanism can be operated remotely by Panasonic AW series controllers, computers, or control systems from third-party manufacturers, all via RS-422 serial control. A full 1920 x 1080 MOS sensor and 18x optical zoom lens deliver HD or SD imagery in a variety of resolutions, achieving exceptionally natural results due to Dynamic Range Stretch (DRS), Hybrid Noise Reduction and a new Flesh Tone function. The video can be output over professional HD/SD-SDI or, using an optional breakout cable, composite or component connections.
Fast, precise and accurate, the AW-HE50S offers a variety of other powerful features, such as electronic shutter, 7-step chroma level adjustment, 3-step gamma correction, genlock and tally light. Easy to set up and even easier to control (when combined with a camera controller), this is the perfect tool for multi-camera systems as well as applications like cable and TV production, live sports, houses of worship and AV/conference facilities.
|Image Device||1/3" Full HD MOS|
|Lens||18x HD Zoom
F1.6 - 2.8 (f=4.7 - 84.6mm, 35mm equivalent: 36.9 - 664.5mm)
|Horizontal Resolution||850 TV Lines|
|Minimum Illumination||3 lux (50 IRE, F1.6, +36 dB)|
|Signal System||NTSC [60 Hz] HD: 1080/59.94i, 720/59.94p SD: 480/59.94i|
|Shutter Speed||Step 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Syncro-scan 60.24 - 646.21 Hz
|Gain Selection||0, 3, 6, 9, 12, 15, 18 dB/AGC
0dB, 6dB, 12dB, 18dB (Integral mode)
|White Balance||AWB A, AWB B, ATW|
|Rotation||Pan: -175 to +175deg.
Tilt: -30 to +90deg.
|Rotational Speed||Over 90deg./s (max)|
|Inputs/Outputs||HD/SD-SDI: BNC (x1 Output)
Ext Sync: BNC (x1 Input)
Multi-I/F: Composite, HD/SD Analog Component (x1 Output)
|Interface||LAN: 10BASE-T/100BASE-TX, IPv4RJ45 x 1
RS-422: AW-series protocol, plus selected third-party support
|Power Requirements||12VDC +-10%|
|Operating Temperature||32 - 104deg.F
0 - 40deg.C
|Dimensions (W x H x D)||6.3 x 7 x 6.5" (16 x 17.8 x 16.5 cm)|
|Weight||3.1 lbs (1.41 kg)|
