Panasonic
Used

Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder. (363 Hours)

SKU: US 656543
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

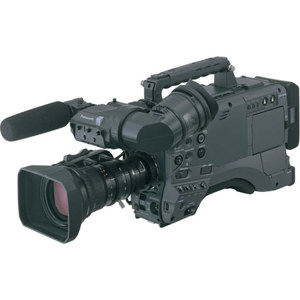

Panasonic AG-HPX500: Picture 1 regular
image does not represent actual item

About the Panasonic AG-HPX500

The Panasonic AG-HPX500 is a 2/3" CCD high definition camcorder designed for use with the P2 memory-based recording system. The camera truly shines in a wide variety of applications previously only possible on the highest-end Varicam. The unit is lightweight enough to take almost anywhere while still conforming to the shoulder-mounted form factor professionals require. Four P2 slots allow for up to 256 minutes of continuous recording.

Unlike similar priced camcorders, the AG-HPX500 can shoot a variety of standard definition and high definition resolutions, including 720p, 1080i and 1080p. All footage is recorded to the industry-standard DVCPRO, DVCPRO50, DVCPRO HD formats, which can be used in almost every professional editing suite.

It Features such as variable frame rates, 60p, chromatic aberration compensation (CAC), cine-like gamma and many others provide limitless possibilities for dramatic, news and sports productions. No matter what the task the AG-HPX500 has it covered.

Panasonic AG-HPX500 Features

  • P2 Flash Memory Recording Storage: The AG-HPX500 is the first high definition ENG camcorder to feature P2 (professional plug-in) capability. P2 was developed as a recording system for professionals and is widely used amongst broadcasters and independent videographers
  • High-Quality 2/3" CCDs: Borrowing technology from the highly acclaimed AG-SDX900, the AG-HPX500's advanced 2/3" progressive CCDs provide the kind of high sensitivity not available in comparably cameras
  • Advanced Digital Signal Processor: The AG-HPX500 digital signal processor uses 14-bit A/D conversion and 19-bit inner processing to attain unprecedented accuracy. While camera does not record 1080/60p, it is from this capture that all other signals are made, which includes both 1080/24p and 1080/30p
  • DVCPRO HD Codec: Thanks to a low compression ratio at a bit rate of 100 Mbps (1080/59.94i, 720/59.94p) along with the easy-to-edit intraframe compression system, DVCPRO HD is suitable for recording fast-moving subjects with no motion artifacts whatsoever, making it ideal for slow-motion capture
  • Professional Camera Features: The camera features almost every conceivable input, including HD-SDI. Serial Digital Interface (SDI) allows users to output and view digital video without any digital to analog conversion
  • Chromatic Aberration Compensation: Chromatic aberration (CA) usually appears as a hard pink glow at and around high contrast areas and lines. The phenomenon often results from imperfections in the camera lens' optics
  • Super Reliable Work Flow Process: The P2 card is a new solid state recording media that Panasonic developed to bridge the gap between information technology and professional video. About the same size as a PC card, the P2 card stores large amounts of video and audio data in MXF-format files

Panasonic AG-HPX500 Specifications

Signal System 1080/60i, 30p, 24p
1080/50i, 25p
720/60p, 30p, 24p
720/50p, 25p
720pN Variable Frame Rates
60 Hz mode: 12, 18, 20, 22, 24, 26, 30, 32, 36, 48, 60 fps
50 Hz mode: 12, 18, 20, 23, 25, 27, 30, 32, 37, 48, 50 fps
NTSC: 480/60i, 30p, 24p
PAL: 576/50i, 25p
Image Device 2/3" 3CCD
Lens No
Horizontal Resolution 1080 Lines
Sensitivity F10 at 2000 lux
Built-in Filters ND: Clear, 1/4, 1/16, 1/64
LCD Monitor 3.5"
Viewfinder 1.5" CRT B/W, NTSC/PAL Switchable
Scan Matching Yes, Different Ranges for Different Record Modes
Memory Card Slot SD Memory Cards for Scene-File Sharing
4 P2 Card Slots for Video
Shutter Speed Range 1/12 to 1/2000 sec (Range depends on Record Mode)
Gain Selection 0-18 dB Range
Audio Signal Format 16 bit/48kHz Four Channels
Audio Frequency Response 20Hz to 20kHz
Input and Output Connectors Composite: BNC (x1 Output)
Component: D4 Terminal (x1 Output)
SDI/HD-SDI: BNC (x1 Output)
Timecode: BNC (x1 Input, x1 Output)
FireWire: 6-Pin
DC Power: XLR (x1 Input, x1 Output)
Remote: 10-Pin
Lens: 12-Pin
EVF: 20-Pin
USB 2.0: 4-Pin (Type-B)
Microphone: XLRx2 (x1 Input)
Analog Audio: XLRx2 (x1 Input)
Line Out: Pin Jack
Headphone: 3.5mm Stereo Mini Jack
Power Requirements 12 VDC (11-17V)
Power Consumption 23W
Operating Temperature 32-104 Deg. F (0-40 Deg. C)
Dimensions (W x H x D) 5.6 x 10.4 x 12.6" (14 x 26.1 x 31.8 cm)
Weight 8.4 lb (3.8 kg)
