Sony EVI-D70 1/4" CCD Pan Tilt Zoom Color NTSC Three Video Camera System With Sound Control Technologies RC1-Sx Kit.

SKU: US 605518
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

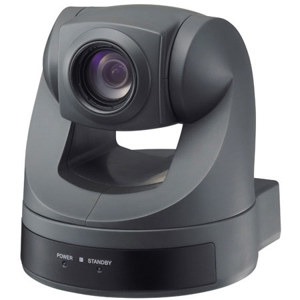

Sony EVI-D70: Picture 1 regular
image does not represent actual item

About the Sony EVI-D70

Take control with Sony's robotic pan/tilt/zoom color video camera - the EVI-D70 - the successor to the industry leading EVI-D30. The EVI-D70 combines a high quality 1/4 type EXview HAD CCD color camera with the flexibility of a remote pan/tilt/zoom operation, all in a compact easy-to-use package. Compared to its predecessor, this superior EVI-D70 camera incorporates a wider pan/tilt range with an 18x optical zoom lens and a faster pan/tilt mechanism, making them ideal for distance learning, video conferencing, houses of worship, courtrooms, hospitals and nursing homes, events and concert halls, and just about any other remote shooting application. And best of all, it's ceiling mountable - a first for Sony's popular EVI cameras!

Sony EVI-D70 Features

  • Signal System: NTSC.
  • Image Sensor: 1/4" IT CCD with EXview HAD technology.
  • Effective Pixels: 768 (H) x 494 (V).
  • Horizontal Resolution: 470 TV lines (wide end).
  • Synchronization: INT.
  • Angle of View (H): 2.7° (tele end) - 48° (wide end).
  • Min. object distance: 10mm (wide end), 800mm (tele end).
  • Pan/Tilt: Pan: +/- 170° (max. speed: 100°/s) Tilt: -30° to + 90° (max. speed: 90°/s).
  • Lens: Focal Length - f=4.1 mm (tele) - 73.8 mm (wide), F1.4 - F3.0 Zoom - 18xD. Zoom - 12x.
  • Minimum Illumination: 1 lux, F1.4.
  • Image Range: 100 - 100,000 lux.
  • S/N Ratio: More than 50dB.
  • Shutter Speed: 1/1 - 1/10,000 sec.
  • White Balance: Auto / ATW / Indoor / Outdoor / One push WB / Manual WB.
  • Position Preset: 6 Positions.
  • Analog Output: VBS (pin jack), Y/C (4 pin MiniDIN).
  • Camera Control: RS-232C / RS-422 VISCA (protocol).
  • Power Requirement: DC 10.8 to 13.2 Volt.
  • Dimensions (WxHxD): 132 x 144 x 144 mm (5-1/4 x 5-3/4 x 5-3/4 inches).
  • Weight: 950 g (2 lb. 2 oz.).
