Canon 16x Manual Zoom XL 5.4-86.4mm Servo Video Lens for XL-2 / XL-1 / XL-1S

SKU: US 638066
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

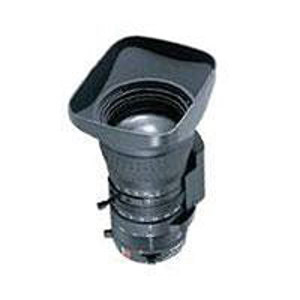

Canon 16x Manual Zoom XL 5.4-86.4mm Servo Video...: Picture 1 regular
image does not represent actual item

About this item

This manual lens gives you the flexibility of calibrated power zoom, power iris, 2 built-in ND filters and calibrated manual focus.

Technical Specs

Focal Length f5.4 - 86.4 mm (16x) F = 39 - 624 mm (equivalent to 35mm camera)
Lens Configuration 13 groups, 17 elements (no aspherical elements).
Coating Multi-coating
Zoom ratio 16X
F number F1.6
Mount Bayonet mount with internal contacts/electronic mount. XL format system is standard 7-pin
External dimensions 81 mm diameter x 158 mm (not including lens hood). Max. diameter
Filter Diamerter 72mm, P0.75 (hood filter diameter: 82mm, P0.75).
Color Black
Mount diameter  44 mm
Iris Operated with aperture ring, six blades (auto-iris capability).
Power Supply Power supplied by camera, 5.1 V - 10V.
Focus System TV-AF (video signal AF) compliant, a manual focus ring
Current consumption 300mA or less
Focusing Operated with focus ring
Zoom Operated with zoom ring, power zoom capability
Macro mechanism Yes. Operated with the Macro button located on the zoom ring.
Flangeback adjustment mechanism Yes. Operated with the flangeback adjustment ring.
ND Filter Switching Mechanism Yes. Two-step density switching type filter (built-in type). *ND densities 0.8 (light volume approx 1/6) and 1.5 (light volume approx. 1/32).
Focusing Range Entire zoom range: 1 m - infinity. Wide/macro: 50 mm - infinity.
Weight Approx. 920 grams (without lens hood) * Lens hood: approx. 50 grams
Effective image size 4.8 x 3.6 (1/3-inch CCD image size).
Angle of coverage Wide: 47° 55' x 26° 52'
Tele: 3° 11' x 2° 23'
Close-up field of coverage Wide: 796 x 597 mm (diagonal 995 mm).
Tele: 52.1 x 38.9 mm (diagonal 64.9mm).
Wide/macro 71 x 53.2 mm (diagonal 88.7mm).
