Bogen 501hdv Head / 3046 Tripod System

SKU: US 598091
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available.

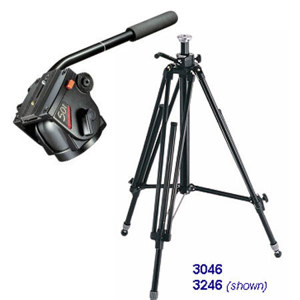

Bogen 501hdv Head / 3046 Tripod System: Picture 1 regular
image does not represent actual item

About this item

Strong, sturdy and reliable, the 3046 tripod is the ideal studio tripod. The geared center column has a non roll-back feature and has a threaded 3/8" mount on the bottom of the column to allow low-angle shots. Twin shark leg design, built-in spirit level and rubber feet with retractable spikes.

The 501 Pro Video Head 3433/501 is designed to support the latest range of small, professional digital cameras as well as cameras with longer lenses and spotting scopes. The 501 gives best-in-the-market value and performance for payloads up to an ample 13.2 lbs. The light but positive fluid movement provides exceptionally smooth control. It has added Teflon friction adjustment to increase drag and separate pan tilt locks.

Design practicality also features a quick-release sliding plate with VHS pin, a single pan handle and flat base with 3/8" tripod fixing. The 501 Pro Video Head also features a quick-release sliding plate with VHS pin, a single pan handle and a flat base with 3/8" tripod mount.

Technical Specs

Tripod Legs 3046 Specifications
Max Height w/extended column 89.4 inches
Max Height w/closed column 70.5 inches
Minimum Height 30.4 inches
Closed Length 32.3 inches
Leg Sections 3
Max Load Capacity 26.5 lbs
Weight 9.2 lbs
Notes Head Mount: 3/8" threaded mount
Levelling Bubble: Yes
Leg Diameter: 25, 20, 19 mm
Foot Type: Rubber feet w/ retractable steel spike
Tripod Head 501 Pro Fluid Head (3433) Specifications
Max load Capacity 13.3 lbs
Head height 4.2"
Quick Release QR Plate Supplied 3433PL
Weight 3.4 lbs.
Notes Pan 360°
Pan Drag: 1 step plus Variable Teflon Friction
Independent Pan Lock: Yes
Pan Handle: 1
Tilt: +90°, -60°
Tilt Drag 1 step plus variable Teflon friction
Independent Tilt Lock: Yes.
