Manfrotto 504HD VD Fluid Video Head with 546B Aluminum Tripod Legs,

SKU: US 691268
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

We’re sorry, this item is no longer available. See similar Items

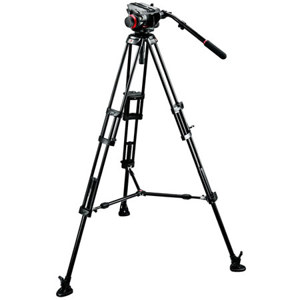

Manfrotto 504HD: Picture 1 regular
image does not represent actual item

About the Manfrotto 504HD

The Manfrotto 504HD Head with 546B 2-Stage Aluminum Tripod System combines the innovative and stylish 504HD Fluid Video Head with the 2-stage aluminum 546B Pro Video Tripod--creating an ideal combo of affordability, stability and smooth, precise control. This compact, versatile system was designed with independent video and DSLR shooters in mind and provides the level of ergonomics and support required by today's small crews and one-man bands.

Manfrotto 504HD Features

  • Wider, longer platform for your camera and accessories.
  • High rigidity structure delivers maximum response and strength.
  • Ergonomic controls for easy use in all conditions.
  • Easy-link connections for accessories.
  • 4-step counterbalance system ensures a quick set-up with optimal balance.
  • Ball Bearing drag system for precise, smooth movements.
  • Light weight modern materials for optimum balance of strength and weight.

Manfrotto 504HD Specifications

504HD Head: additional pan handle 504HLV
504HD Head: attachment 3/8'' male thread attachment type
504HD Head: attachment number 1/4'' and 3/8'' screws attachment type
504HD Head: balance control 4 step: 0Kg - 2.5Kg - 5Kg - 7.5Kg
504HD Head: front tilt -60° / +90° tilt range
504HD Head: half ball diameter 2.95 in
504HD Head: independent pan lock yes
504HD Head: independent tilt lock yes
504HD Head: leveling bubble illuminated
504HD Head: load capacity 19.84 lbs
504HD Head: maximum working temperature 60
504HD Head: minimum working temperature -20
504HD Head: pan bar positions 2 number
504HD Head: pan bars included (no.) 1 number
504HD Head: pan drag continuously adjustable from 0 to max level
504HD Head: panoramic rotation 360 °
504HD Head: plate type 504PL
504HD Head: quick release yes
504HD Head: secondary safety system yes
504HD Head: sliding travel of plate 3.27 in
504HD Head: tilt drag continuously adjustable from 0 to max level
546B Tripod Leg: Material Aluminum
546B Tripod Leg: carry loads up to 20kg (44lb)
504HD Head: height 6.10 in
504HD Head: weight: 6.39 lbs
Kit: load capacity 19.84 lbs
Kit: maximum height 65.94 in
Kit: minimum height 17.32 in
Kit: weight 13.89 lbs
