Panasonic AJ-HD1400 Compact DVCPRO HD VTR (810 Hours)

SKU: US 641142
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

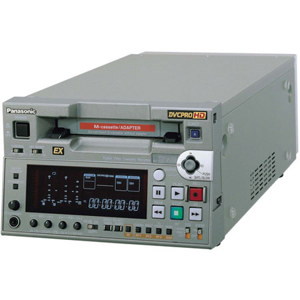

Panasonic AJ-HD1400: Picture 1 regular
image does not represent actual item

About the Panasonic AJ-HD1400

The Panasonic AJ-HD1400 Compact DVCPRO HD VTR records at 100 Mbps with 4:2:2 color sampling and intra-frame compression in multiple U.S. and worldwide HD/SD formats including 1080/59.94, 1080/50i, 720/60p, 720/59.94p and 720/50p. Designed with comprehensive editing features, this AC/DC-powered recorder features HD SDI digital input/output and IEEE 1394 input/output, a 9-pin remote interface for use in assemble/insert editing and a built-in up/down converter. This lightweight VTR offers a handle for on-the-go use and its compact design makes it a great space-saver for desktop use and in-studio editing.

Panasonic AJ-HD1400 Features

  • Multi-format HD/SD system records in 1080/59.94p, 1080/50i, 720/60p, 720/59.94p and 720/50p
  • Converts from a VariCam 50p recording (over 60p) source with native 720p/50 or PAL output
  • IEEE 1394 input/output interface transfers DVCPRO HD native video to NLE systems without image quality degradation
  • HD-SDI input/output and SDI output for applications such as line recording and in-studio production
  • Built-in up/down/cross converter for playing back DVCPRO 50/DVCPRO/DV/DVCAM tapes and for outputting a converted HD signal
  • Supports assemble/insert editing with 9-pin remote control and IEEE 1394
  • Supports VANC metadata (UMID, CC, etc.)
  • Multi-format HD/SD system records in 1080/59.94p, 1080/50i, 720/60p, 720/59.94p and 720/50p Supports Encoder Remote (component style/composite style)
  • 64 minutes of recording time on an AJ-P126L cassette. Accepts DVCPRO (L/M) and Mini-DV cassettes (AJ-CS455 cassette adaptor required for Mini-DV cassette playback.)
  • Compact and lightweight
  • AC or DC operation
  • High-quality 16-bit digital audio with up to eight embedded channels

Panasonic AJ-HD1400 Specifications

Recording Format DVCPRO HD-LP
Recording Video Signal 1080i/59.94Hz, 1080i/50Hz, 720p/59.94Hz, 720p/50Hz and 720p/60Hz (Varicam) switchable
Recording Audio Signal 48 kHz, 16 bit, 8 CH
Recording Track Video: 1080 i/ 720 p
Audio: 8 channels
TC: Subcode area
Cue: 1
longitudinal track
CTL: 1 longitudinal track
Tape Speed 67.64 mm/s
Rec/Play Time Max. 64 minutes
Tape 1/4" metal particle
FF/REW Time Approximately 90 seconds with AJ-HP64ELG
Video: Sampling Frequency Y: 74.25/1.001 MHz, Pb/Pr: 37.125/1.001 MHz
Video: Quantization 8 bits
Video: Compression Method DCT + Adaptive quantization
Video: Compression Ratio 1/6.7
Video: Bit Rate 100 Mbps
Audio: Channel 8 channels
Audio: Sampling Frequency 48 kHz
Audio: Quantization 16 bits
Audio: Frequency Response 20 Hz to 20 kHz, ±1.0 dB (reference level)
Audio: Dynamic Range More than 85 dB (1kHz, emphassis off, "A" weighted)
Audio: Distortion within 0.1 % (1kHz, emphassis off, reference level)
Audio: Cross Talk Less than -80 dB (1 kHz, between any 2 ch)
Audio: Headroom 20 dB (AJ-HD1400P) 18 dB (AJ-HD1400E)
Video Input/Output HD SDI In:
BNC x 1
SMPTE 292M/296M/299M
HD Reference In:
BNC x 2 (loop-through), 75Ohms auto (tri level sync)
SD (B.B.) auto switching
SDI Out: BNC x 2, superimpose on/off, SMPTE 292M/296M/299M
SD SDI Out:
BNC x 1, superimpose on/off, SMPTE 259M-C/272M-AITU-R BT.656-4
Component Out: BNC x 3 (Y/Pb/Pr), superimpose on/off
Composite Out: BNC x 2 (Y connector), superimpose on/off (VIDEO 2)
Audio Input/Output Analog In:
XLR x 2 (CH1/CH2), +4/0/-20/-60 dBu switchable, 600 Ohms/high-impedance switchable
HD SDI In:
BNC x 1, (CH1 to CH8)
SMPTE 299M embedded audio
Analog Out: XLR x 2 (CH1/CH2), +4/0/-20 dBu switchable, low-impedance
HD SDI Out:
BNC x 2, (CH1 to CH8)
SMPTE 299M embedded audio
SD SDI Out: BNC x 1, SMPTE 272M-A//ITU-R BT.656-4
Monitor Out:
XLR x 2, +4/0/-20 dBu switchable, low-impedance
Phono x 2, -8dBV
Phones Out: M3, variable level control, 8Ohms
Other Connector DVCPRO/DV In/Out:
6-pin x 1, transfer rate selectable; 400/200/100 Mbps
IEEE 1394-1995, IEC61883-Part 1, Part 2
In: BNC x 1, 0.5 to 8.0 Vp-p, 10kOhms
Timecode Out: BNC x 1, low-impedance, 2.0 ±0.5 Vp-p
Remote In: D-sub 9 pin, RS-422A Interface
Encoder Remote: D-sub 15 pin
In: 4 pin x 1, DC12V
Out: DC12V, 250mA, for AJ-A95
Video Signal Adjustment Range-1 Component style:
HD SDI Y Out Gain: - infinity to + 3 dB
HD SDI Pb Out Gain: - infinity to + 3 dB
HD SDI Pr Out Gain: - infinity to + 3 dB
HD SDI Y Out Black Level: ±10%
HD Component Y Out Gain: - infinity to + 3 dB
HD Component Pb Out Gain: - infinity to + 3 dB
HD Component Pr Out Gain: - infinity to + 3 dB
Component Y Out Black Level: ±10%
SD SDI Y Out Gain: -infinity to + 3 dB
SD SDI Pb Out
Gain: -infinity to + 3 dB
SD SDI Pr Out Gain: -infinity to + 3 dB
Video Signal Adjustment Range-2 SD SDI Y Out Black Level: ±10%
Composite Out Gain: - infinity to + 3 dB
Composite Out Chroma Gain: - infinity to + 3 dB
Composite Hue/Chroma Phase: ±30deg.
Composite Y Out Black Level: ±10%
Composite style:
HD SDI
Video Out Gain: - infinity to + 6 dB
HD SDI Chroma Out Gain: - infinity to + 3 dB
HD SDI Chroma Phase: ±30deg.
HD SDI Y Black Level: ±10%
Video Signal Adjustment Range-3 SD SDI Video Out Gain: - infinity to + 6 dB
SD SDI Chroma Out Gain: - infinity to + 3 dBv SDI Chroma Phase: ±30deg.
SD SDI Y Out Black Level: ±10%
Composite Video Out Gain: - infinity to + 6 dB
Chroma Out Gain: - infinity to + 3 dB
Composite Chroma Phase: ±30deg.
Y Out Set Up: ±10%
System Phase:
HD SDI Out/HD Component Out:
1080_59.94, 60i: ±0.5H (±1100 sample/13.5 ns step)
Video Signal Adjustment Range-4 1080_50i: ±0.5H (±1320 sample/13.5 ns step)
1080_23.98,24psf: ±0.5H (±1375 sample/13.5 ns step)
720_59, 60p: ±0.5H (±825 sample/13.5 ns step)
720_50p: ±0.5H (±990 sample/13.5 ns step)
SD SDI Out:
NTSC: ±0.5H (±858 sample/37 ns step)
PAL: ±0.5H (±864 sample/37 ns step)
Composite Out:
NTSC: ±0.5H (±858 sample/37 ns step)
PAL: ±0.5H (±864 sample/37 ns step)
Out SC: more than ±180deg.
Power Supply AC (100-240) V ±10%, 50 to 60 Hz
Power Consumption AC: 85 W, DC: 64 W
Operating Temperature 41 deg.F to 104 deg.F (5 deg.C to 40 deg.C)
Operating Humidity 10 % to 85 % (non dew)
Dimensions (W x H x D) 8.5 x 5.2 x 17.4" (21.4 x 13.2 x 44.2 cm)
Weight 18.74 lbs (8.5 kg)
