Grass Valley ADVC-HDM1 HD-SDI to HDV Converter

SKU: US 517913
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

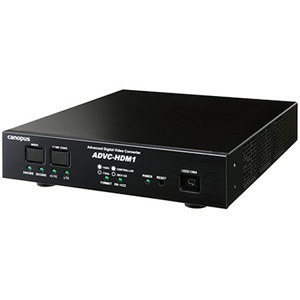

Grass Valley ADVC-HDM1: Picture 1 regular
image does not represent actual item

About the Grass Valley ADVC-HDM1

The Grass Valley / Canopus ADVC-HDM1 provides high-quality, bi-directional conversion between HD-SDI and HDV signals, complete with embedded audio. It's perfect for recording from HD-SDI sources to the Turbo intelligent digital disc recorder (iDDR) - or for use as a standalone converter without a computer. It can also encode HD MPEG-2 transport streams up to a full 1920x1080 resolution using one of eight different bit-rate settings that best suits your workflow.

The ADVC-HDM1 unit also lets you input external time-code information when encoding in HDV; control HD-SDI decks via HDV and vice versa with AV/C-RS-422 device control conversion; and use simple, two-button control for its encoding/decoding and time-code mode via the front panel. Convenient half-width, 19-inch rack, 1 RU form factor.

Grass Valley ADVC-HDM1 Features

  • Converts HD-SDI to HDV with embedded audio
  • Converts HDV to HD-SDI with embedded audio
  • Encode MPEG-2 transport streams with a choice of eight different bitrate settings, from 11Mbps to 40Mbps
  • Supports HD video resolutions up to and including 1920x1080
  • Input external timecode when encoding HDV
  • Control HD-SDI decks via HDV and vice versa, with AV/C-RS422 device control conversion
  • Simple, two-button control for encoding/decoding and timecode mode via the front panel
  • Perfect for recording from HD-SDI sources to a Thomson Grass Valley Turbo iDDR
  • Compatible with Windows- and Mac OS-based NLE software applications that support HDV/HD-SDI
  • Can be used as a stand-alone bidirectional HD-SDI/HDV video converter without needing a computer
  • Solid 8-inch, half-1U rack mount

Grass Valley ADVC-HDM1 Specifications

Digital Video 4-pin FireWire
6-pin FireWire
Supported Encoding formats MPEG-2 transport stream
HDV (auto select)
HD1: 720/30p, 720/25p (video bit rate: 18.3 Mb/s; audio stream: stereo MPEG Audio Layer 2, 384 kb/s)
HD2 1080/59.94i, 1080/50i (video bit rate: 25 Mb/s; audio stream: stereo MPEG Audio Layer 2, 384 kb/s)
Additional formats (dip switch select)
Video bit rate: 11-, 14-, 16-, 18-, 20-, 25-, 30-, 40 Mb/s
Audio stream: MPEG Audio Layer 2, 384 kb/s
Supported Decoding formats MPEG-2 transport stream
HDV (auto select)
HD1: 720/30p, 720/25p
HD2: 1080/59.94i, 1080/50i
Additional formats (dip-switch select)
Profile/Level: MP @ HL, MP @ H14
Resolution/frame rate: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
HD-SDI in (BNC)
HD-SDI active-through (BNC)
2x HD-SDI out (BNC)
Digital Audio Input HDV 2-channel
HD-SDI 2-channel embedded audio (SMPTE 299M Ch1, Ch2 only)
Digital Audio Output HDV 2-channel
HD-SDI 2-channel embedded (SMPTE 299M stereo, 16 bit, 48 kHz, locked)
Time Code LTC in (BNC)
LTC out (BNC)
DVITC in (decoded from HD-SDI input)
DVITC out (encoded in HD-SDI output)
Reference Input (BNC)
Loop-through (BNC)
Device Control AV/C over 1394
RS-422A (control)
RS-422A (device)
RS-232C (external control)
Display Front-panel status
Mode select
Power Includes DC adapter (12V, 2A)
Operating temperature 10 to 35°C
Storage temperature -20 to 60°C
Maximum humidity 80% (no condensation)
Width 215 mm (8.46 in.)
Height 44 mm (1.73 in.)
Depth 241 mm (9.49 in.)
Warranty Grass Valley / Canopus 1 year limited warranty
