NewTek TriCaster TCXD300 HD TV Studio for HD Portable Live Production, Full Unit

SKU: US 561290
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

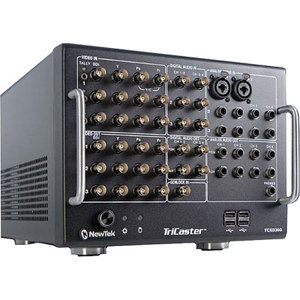

NewTek TriCaster TCXD300 HD TV Studio for HD Po...: Picture 1 regular
image does not represent actual item

About this item

NewTek TriCaster TCXD300 makes it possible for you to broadcast, project, live stream or record full HD programming. TriCaster TCXD300 is a high definition, network-quality portable live production solution. In one small box you gain multi-channel HD switching, HD network-style virtual sets, HD titling, HD digital disk recording, audio mixing, HD editing, full HD streaming and more.

It represents the state-of-the-art in portable live production systems with the highest quality 32-bit floating point, 4:4:4:4 video processing. TriCaster TCXD300 accepts high definition video in both 1080i and 720p along with SDI, Y/C, component and composite. Whether you work with a team or operate on your own, TriCaster TCXD300 is easy to set up & portable.

Key Features

  • End-to-end HD 1080i video pipeline, including effects and virtual sets
  • Video processing employs 32-bit floating-point precision, 4:4:4:4 video processing and component (YCbCrA) color (well beyond industry standard 10-bit)
  • Four-channel audio processed at 48 kHz, 32-bit floating point
  • Extensive audio input/output flexibility including Embedded SDI on all video channels, four channels of AES/EBU and professional level balanced XLR/phone connectors
  • All video inputs can be Proc-Amped, keyed and frozen, including titles and DDRs
  • Integrated full field rate Waveform Monitor and Vectorscope with full color beam tracing
  • Individual processing controls for both Main and VGA outputs
  • Pristine capture of video or stills with support for full 4:2:2 up to 1920 x 1080 resolution at very high bit-rates
  • Next-generation optimized user-interface design with key live production tools readily available, supported by the ability to quickly access controls to configure each source
  • Five Virtual Input functions, each similar to advanced mix/effects bus with positioning and overlay capabilities
  • Use "virtual cameras" by populating multiple Virtual Inputs from a single camera source (and switch between them)
  • Each source has a Proc Amp, keying, garbage matte and alpha channel support
  • Layer up to five live video or CG sources (internal or supplied by network)
  • Independent zoom and pan controls for each source that make composition and camera placement easy
  • All Virtual Inputs provide an additional overlay channel with independent transitions and scaling capabilities
  • Insert live video inputs into live virtual sets with ease
  • Zoom the virtual camera smoothly and easily either interactively, or using automatic control to user specified zoom preset levels
  • Presets provide quick convenient access to numerous Virtual Input setups
  • HD-SDI and HD component plus SD-SDI, component, Y/C and composite input/output
  • Mix source resolutions and aspect ratios (including HD and SD video)
  • Simultaneous HD and SD video output with Proc Amp control
  • iVGA supports unlimited networked computers as live inputs to the switcher
  • Simple live HD streaming with Adobe Flash or Windows Media in either push or pull
  • Record 18 hours of full HD 1080i video in high quality 100Mbps I-Frame only MPEG at up to 4:2:2 color precision
  • Genlock input for broadcast system integration supports bi-level and tri-level references

Technical Specs

Video Input 3 Simultaneous Inputs. Any combination of: HD-SDI, HD Component, SD-SDI, SD Component, Y/C (BNC) and Composite
Video Output 3 HD/SD-SDI
3 HD/SD-Component
Video Processing 32-Bit Floating Point, YCbCrA 4:4:4:4
Supported Formats Standard: 1080i59.94, 720p59.94, 480i59.94 (16:9 and 4:3)
Multi-Standard: 1080i50, 720p50, 576i50 (4:3 and 16:9)
Presets Numerous Preset Bins Including Individual Production Sessions
Video Ingest 1, 6-pin IEEE FireWire
iVGA Network Selections Unlimited
Virtual Set Support Yes; 15 HD Virtual Sets Included
Virtual Input Overlay 1 Channel with Transitions
On-screen ISO Preview Monitors All Sources, or "Preview and FX" or "Scopes with Preview" (full-time, tabbed)
Projector Output Yes; 16:9 and 4:3 Aspects
Full HD 720p 16:9 streaming Yes
Media Player 1 Each DDR, Stills, Titles with Alpha Channel Assignable to Downstream Key
Waveform Monitor Yes
Nonlinear Editor Yes
File Formats AVI, DV, MPEG-2, QuickTime, HDV, JPG, PNG and More
Recording Capacity ~ 18 Hours 1080i HD
Audio Input 2 Balanced Combination XLR/Phone Jacks
2 x 4 Balanced Phone Jacks
3 x 2 AES3/EBU BNC Connectors 3 x SDI Embedded
Phantom Power Option
Audio Output 4 Balanced Phone Jacks (Program Out)
4 Balanced Phone Jacks (Auxiliary Out)
2 AES/EBU (Program Out)
2 AES/EBU (Auxiliary Out)
3 SDI Embedded
1 Stereo Headphone Jack
Audio Quality 24-bits, 48 kHz, 4 Channels
Mix HD/SD Sources Yes
Tally 3 Tally Light Connections (Program, Preview and both)
16:9 Video Support Yes
iVGA Input 1 Ethernet Network Connection
Virtual Inputs (M/E - Style) 5 with Presets
Main Overlay 2 Downstream Key Channels with Independent Transitions
Integrated Character Generator Yes
Projector Resolutions Up to 1920 x 1200
Live Webcasting Yes; Adobe Flash and Push or Pull Windows Media with VC-1 support
Recorder Simultaneous Full Resolution MPEG-2 + Stream
Vectorscope Yes
Render Outputs AVI, DV, MPEG-2, DVD, QuickTime, MP4 (iPod and PSP)
Accessory Options LiveControl LC-11
Dimensions 17.5" D x 8.5" H x 10.4" W
Weight 20 lbs
Warranty NewTek warranty
