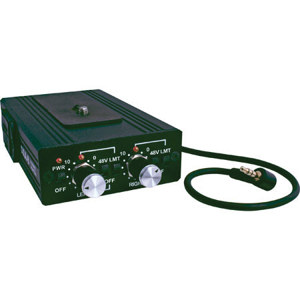

Beachtek Dxa-8 Xlr Adapter W/phntm Pwr: Picture 1 regular
image does not represent actual item
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The DXA-8 Ultimate Adapter is a superb front end for DV camcorders. Low noise preamps provide gain for strong, crisp audio levels from virtually any microphone. The preamps boost audio levels in the camcorder to the "sweet spot" which improves the signal to noise ratio.

The no fuss limiters on each channel eliminate distortion caused by overly hot inputs for great sound every time. Easy to set up - only requires the adjustment of one gain control for each channel.

Limit indicating LED's ensure proper gain setting. Dual 48 volt phantompower for professional microphones. Ideal for DV camcorders that have manual audio controls such as the Sony VX2100, Canon GL2, etc.

Key Features

  • Dual no fuss limiters with LED indicators
  • Dual preamps with adjustable gain
  • Dual switchable 48 volt phantom power
  • Dual balanced XLR inputs
  • One unbalanced mini-jack input
  • Transformer isolated inputs and outputs
  • Uses one 9 volt battery with LED indicator
  • Sturdy extruded aluminum chassis
  • Easily mounts to camera and tripod
  • Extremely easy to set up and use
  • Superb Sound

Technical Specs

Gain: Adjustable from -10 dB to +15 dB
Frequency response: 20 Hz to 20 KHz, +/-3 dB (limiter on)
Output noise level: less than -80 dBu
Input level before clipping: +1.5 dBu (min gain with limiter on)
-27 dBu (max gain with limiter on)
Maximum output level : -30 dBu (limiter off)
-36 dBu (limiter on)
Phantom Power: Dual regulated 48 volt power supplies Current to 14 mA (direct short)
Battery type / duration: One standard 9 volt alkaline battery
10 hours typical (no phantom) LED battery indicator
Current draw: 35 mA typical (no phantom)
Case: Powder coated aluminum
Dimensions: 5.25" L x 3.5" W x 1.25" H
Weight: 16 oz.
