Blackmagic Design ATEM 1 M/E Production Switcher, Analog Video and Audio Input, SDI/HDMI Output

SKU: US 613698
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

We’re sorry, this item is no longer available. See similar Items

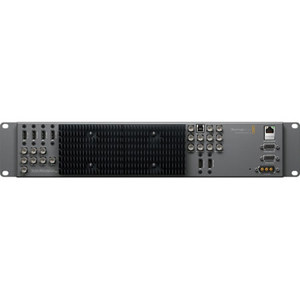

Blackmagic Design ATEM 1 M/E: Picture 1 regular
image does not represent actual item

About the Blackmagic Design ATEM 1 M/E

Get the workflow of a traditional 1 M/E SDI switcher combined with a very portable compact 2 RU size and a software control panel you can run on your laptop! Includes 4 SDI inputs, 4 HDMI inputs for consumer cameras or computers, analog input and SDI, HDMI and analog outputs including down converted SDI output and USB 3.0! You even get a complete frame resynchronizer on every input! You also get professional features such as stinger and DVE transitions, 6 keyers, multi view, built in media players and more!

Blackmagic Design ATEM 1 M/E Features

  • ATEM uses a familiar M/E style of operation so you get an instantly familiar workflow that's fast and easy to use. ATEM is affordably priced because you can start with the chassis only with software based control panel for Mac and Windows!
  • For the highest quality video with extremely low processing delay, ATEM features a fully digital 10-bit design. This means you get the highest quality available from cameras, servers and character generators with true 10-bit video quality maintained throughout the entire signal path
  • ATEM is the most creative solution for live switching! All transitions are instantly available with a button push on the control panel and include the same cut, mix and wipe found on traditional mixers! Plus you also get extra innovative ATEM transitions including dip, DVE, graphic wipe and stinger!
  • For the ultimate in portability, every ATEM production switcher includes beautifully designed control panel software for Mac and Windows, so you can even use your switcher from your laptop!
  • With USB 3.0 becoming more popular on Windows computers, ATEM includes support for USB 3.0 capture direct to your PC! Get the most incredible quality 10-bit captures in full HD resolution for a direct file based master of your production
  • The ATEM 1 M/E model gives you 8 video inputs, 3 Aux outputs, SDI, HDMI and analog program outputs, SDI and HDMI multi view outputs, USB 3.0 as well as down converted SDI and composite outputs

Blackmagic Design ATEM 1 M/E Specifications

Total Video Inputs 8
SDI Video Inputs 4 x 10 bit SD/HD switchable
HDMI Video Input 4 x HDMI 1.4a 10 bit SD/HD switchable
Analog Video Input 1 x 10 Bit Component/S-Video/Composite. Component SD/HD switchable
Audio Input 2 Ch analog balanced XLR via breakout cable
Sync Input Tri-Sync or black burst
Internal Frame Synchronizers 8. All inputs
Total Outputs 14
SDI Program Outputs 1 x 10 bit SD/HD switchable
HDMI Program Outputs 1 x HDMI 1.4a 10 bit, SD/HD switchable
Analog Program Outputs 1 x Component SD/HD switchable and 1 permanently down converted composite NTSC/PAL output
Down Converted SDI Program Outputs 1 x 10 bit SDI
Down Converted Composite Program Outputs 1 x NTSC/PAL
SDI Preview Outputs 1 x 10 bit SD/HD switchable
SDI Aux. Outputs 3 x 10 bit SD/HD switchable
SDI M/E 2 Program Output No
Computer Output 1 x USB 3.0 from Aux. 1 output. Media Express for Windows included
Qty of Multi View's 1
Outputs Per Multi-View 1 x HD-SDI and 1 x HDMI
SDI Audio Outputs 2 Ch embedded into SDI output
Analog Audio Outputs 2 Ch balanced XLR via breakout cable
Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network
Serial Communication Outputs 1 x RS-422
Software Updates Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility
Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis
Colorspace Conversion Hardware based real time
HD Down Conversion Built in, high quality hardware down converter always outputs to SD-SDI and composite outputs when working in HD video formats. Component output can be switched between HD or SD. Selectable between letterbox, anamorphic 16 9 and center cut 4 3 styles
HD Format Support 1080i50, 1080i59.94, 720p50, 720p59.94
SD Format Support 625/25 PAL, 525/29.97 NTSC
SDI Compliance SMPTE 259M, 292M
Video Sampling 4:2:2 10 bit
Color Precision 4:2:2 10 bit
Color Space 4:2:2 YUV
Media Players 2
Channels 2x for fill and key
Media Pool Still Image Capacity 32 with fill and key
Media Pool Clip Capacity 2 with fill and key
Maximum Clip Length in 1080i 180 Frames
Maximum Clip Length in 720p 360 Frames
Maximum Clip Length in NTSC/PAL 900 Frames
Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF
Media Pool Video File Format QuickTime and AVI
Media Pool Audio File Format WAV, MP3, AIFF
Number of Windows 1 x 10
Routable Windows 8
Tally Red for program and green for preview indication
Window Source Labels Yes
HDMI Input Resolutions for Computers 720 x 480 59.94Hz, 720 x 576 50Hz, 1280 x 720 59.94Hz 50Hz and 1920 x 1080 59.94Hz 50Hz
Redundant Power No
Input Voltage 12V
Power Consumption 50W
Size 2 Rack Units
Dimensions (W x H x D) 19" x 3.5" x 2.5"/482mm x 88mm x 62mm
Weight 5.2 lbs or 2.4 kg
