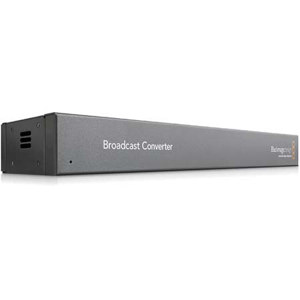

Blackmagic Design Broadcast: Picture 1 regular
image does not represent actual item

About the Blackmagic Design Broadcast

The Blackmagic Design Broadcast Converter combines most mini converters features into a 1 rack unit chassis that allows bi-directional conversion. Convert SDI to analog/HDMI while at the same time converting analog to HDMI to SDI. Broadcast Converter is a complete solution for connecting analog decks such as Betacam SP to SDI based systems in a compact rack mount design.

Blackmagic Design Broadcast Features

  • Bi-Directional SDI to Analog/HDMI Conversion: Use this device to convert SDI video signals to analog/HDMI or vice versa
  • Embedded Audio: This unit can embed SDI audio from balanced analog audio inputs

Blackmagic Design Broadcast Specifications

SDI Video Input Switchable between SD, HD and 3 Gb/s SDI
SDI Video Outputs Switchable between SD, HD and 3 Gb/s SDI
Dual Rate Support Auto detection of HD or standard definition SDI inputs
Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
Re-clocking Yes
Analog Audio 2 channels of professional balanced analog audio with XLR connections
HDMI HDMI in and out
Analog Video Component, NTSC, PAL and S-Video
SDI Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
SDI Video Sampling 4:2:2
SDI Video Rates SDI video connections are switchable between standard definition and high definition
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI
Analog Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
Analog Color Precision 4:2:2
Analog Color Space YUV
HDMI Format Support 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60
HDMI Color Precision 4:2:2 and 4:4:4
HDMI Color Space YUV and RGB
Software Control Mac OS X and Windows software upgrade via USB
Settings Control Via USB software
Firmware Upgrade Via included firmware updater application
Power Supply +12V universal power supply included; Cable tie point
Warranty Blackmagic Design 3 Year Limited Warranty
