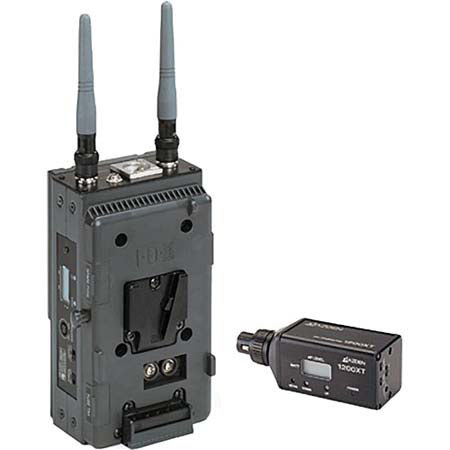

Azden 1200VMX UHF Plug-In System with 1200URX/VM On-Camera Receiver and 1200XT Plug-in Transmitter

Mfr. Part: 1200VMX     SKU: VDAZ1200VMX

Azden 1200VMX UHF Plug-In System with 1200URX/VM On-Camera Receiver and 1200XT Plug-in Transmitter
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes

Azden 1200URX/VM Slot-In Receiver for V-Mount - 1200XT Plug-in Transmitter - Azden Warranty

Description

The Azden 1200 Series Slot-In Portable Wireless Microphone System is designed for professional applications and centered around the 1200URX diversity, slot-in UHF receiver. The receiver is designed in a few versions in order to accommodate owners of slot-in cameras, Anton Bauer, Gold Mount and V-Mount users. This system includes the 1200XT plug-in transmitter and 1200URX/VM slot-in receiver for use with IDX V-Mounts.

In addition to the receiver's slot-in design, the 1200-series also offers 188 user selectable, DTV compliant frequencies. True-diversity technology with two complete front-ends and high-gain antennas maximize reception and range while greatly reducing interference and drop-out. Both transmitter and receiver feature multi-function digital displays and rugged construction.

The receiver uses 12VDC camera power and the transmitter is powered via 2-AA alkaline batteries for up to 8-hours. The slot-in design of the receiver and flexible feature set make the Azden 1200 Series a viable choice for broadcast, ENG, EFP, video & film shoots, etc.

Features

Compander circuit for more natural sound
True diversity system with 2 complete front-ends and high-gain antennas
Dielectric filters throughout, for improved image rejection and superior diversity isolation
High 5th-order filters for improved S/N ratio
Multi-function LCD shows channel, frequency, battery info, AF level and diversity operation
DTV-compatible (188) frequencies covering 4 UHF TV bands
MicroComputer Controlled PLL Synth
Noise Reduction Expander (THAT)

Specifications

RF Carrier Frequency Range188 steps ~ 638.125 - 661.875 MHz
Effective Operating Range200 - 300 ft ~ 60 - 100m
Frequency Response50 - 15kHz (± 1.5dB)
RF Sensitivity(12dB SINAD) 1.2µV
Adjacent Channel Selectivity> 70dB (± 250kHz)
Image Rejection> 93dB
IF Rejection> 93dB
Audio THD< 0.8%
Audio Output40dBm ± 40kHz Deviation
Output Impedance600O
Signal/Noise Ratio> 62dB (± 5kHz Deviation) "A" Weighted
Operating Temperature Range-50 - +122 F ~ -10 - +50 C
Max Modulation Sensitivity+20dBM ~ 0dBm
MIC Level / Imped. (Dynamic)-60dBm / 2.2kO (± 5kHz Dev.)
Phantom Power48V ±2V @ 2mA
Power Requirements11 - 15V DC @ 220mA (Receiver)
3V DC (2 "AA" Alkaline) @ < 180mA - 290 mA w/Phantom Power ON
Dimensions68W x 84H x 18D mm- 1200URX/Si insertion (82W x 150H x 60D mm - 1200URX/VM(Receiver)
1.57 (W) x 4.49 (H) x 1.57 (D) inches / 40 (W) x 114 (H) x 40 (D) mm
Weight6.35 ounces ~ 180g w/battery
26.45ounces ~ 750g for 1200URX/VM
4.00 lbs
WarrantyAzden warranty
