Azden 200r VHF Receiver

Mfr. Part: 200R     SKU: VDAZ200R

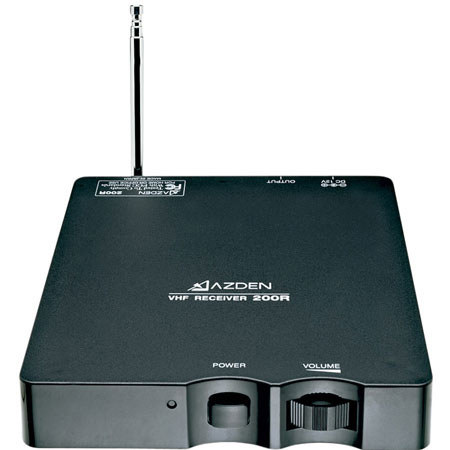

Azden 200r VHF Receiver
enlarge image

Product Rating Write a Review

Item Includes
VHF receiver

Description
The result of our years of design and manufacturing experience in quality wireless, and is our new "value" leader. Housed in a durable ABS case, with Power On-Off, volume control, and available in 25 frequencies, it gives you excellent RF performance at an attractive price. The available transmitters are the 31 LT (bodypack lavalier), 31HT (handheld), 31XT (plug-in), or the new 32BT (bodypack lavalier).

Specifications
Frequency Range25 VHF Channels (169.505 - 195.975 MHz)
Frequency Response40Hz to 18KHz (+/- 3dB)
Audio Distortionless than 1.0% (± 15K deviation)
Dynamic Rangebetter than 100dB
S/N Ratiobetter than 95dB
Operating Temperatures0° C to 45° C
Operating Range100m under ideal conditions
OscillatorCrystal Controlled
Diversity TypeTrue Space Diversity
Receiver TypeSuper Heterodyne
Image Rejection> 60dB
Reception Sensitivity> 15dBµV
Reception Selectivity± 150KHz
Audio Output Adj. Range-30dB, ctr 0dB, +6dB
Audio Output Impedance2.2 k ohms
Power Requirements12V DC 300mA
Dimensions5.55"W x 5.1"D x 0.95"H - (141 x 129.5 x 24mm)
Weight12oz - (340.2g)
