Azden 211VLT AC-Powered VHF Wireless System
Azden

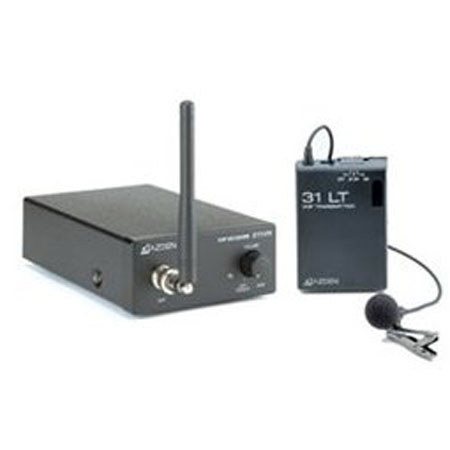

Azden 211VLT AC-Powered VHF Wireless System, Includes 211VR with 31LT and EX-503

SKU: VDAZ211VLT MFR: 211VLT
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$270.00
Free shipping
Qty:

Add to Wishlist

About this item

This AC powered VHF receiver delivers excellent RF performance even under adverse conditions and audio quality formerly associated with much more expensive equipment. With Power (red) to Receiving (green) LEDs and 1/4" output jack with volume adjustment.

What's Included With This Item

  • Azden 211VR Receiver
  • 31LT VHF Wireless Body-Pack Transmitter
  • EX-503 Electret Condenser Lavalier Microphone
  • Azden 2 Years Warranty

Key Features

  • One-Channel VHF Receiver in Metal Case: Designed using the newest wireless technology the 211VR delivers excellent RF performance even under adverse conditions, and audio quality formerly associated with much more expensive equipment
  • Power/Receiving LED Indicator: When the receiver is plugged in, the Power/Receiving LED will turn RED. When the transmitter is turned on and is within reception range of the receiver the Power/Receiving LED will turn from RED to GREEN indicating that the transmitter signal is being received
  • 12V DC Input, Supplied AC Adapter: Plug the supplied AC adapter into the 12 volt input on the receiver then into a 110-120V AC electrical outlet
  • Output Adjustment: Rotate the knob clockwise to increase, or counterclockwise to decrease volume level
  • Unbalanced Output: The 211VR features a 1/4-inch output jack
  • Compact and Unobtrusive Transmitter Unit In Durable ABS Case With Snap-Off Metal Belt Clip: The 31LT transmitter comes with a belt clip. It is small enough to also be tucked into a jacket or pants pocket
  • Audio Input Level Control: The audio input level control enables you to adjust the input level of the microphone. Turn clockwise to increase, or counter-clockwise to decrease the input level. A small screwdriver is supplied to make these adjustments
  • 3-Position Power Switch With Standby: The power OFF position disables all transmitter functions while STANDBY position turns the audio off and on. Switching the transmitter to STANDBY will cause the audio to mute, allowing the microphone to be handled with no noise
  • Mini-Plug Connector: A standard 3.5mm mono jack can be used

Technical Specs

Receiver: Frequency Range 25 VHF Channels (169.505 - 197.325 MHz)
Receiver: Frequency Response 40Hz to 18kHz ±3dB
Receiver: Audio Distortion Less than 1.0% ±15K deviation
Receiver: Dynamic Range Better than 100dB
Receiver: S/N Ratio Better than 95dB
Receiver: Operating Temperature 32-113 deg.F (0-45 deg.C)
Receiver: Operating Range 100m under ideal conditions
Receiver: Oscillator/Modulation Crystal Controlled/FM
Receiver: Diversity Type True Space Diversity
Receiver: Receiver Type Super Heterodyne
Receiver: Image Rejection Better than 60dB
Receiver: Reception Sensitivity Better than 15dBmicrovolt
Receiver: Reception Selectivity ±150kHz
Receiver: Audio Output Adj. Range Min. -30dB, center 0dB, Max +6dB
Receiver: Audio Output Impedance 2.2 k ohms
Receiver: Power Requirements 12V DC 300mA
Transmitter: Frequency Range 25 VHF Channels (169.505 - 197.325 MHz)
Transmitter: Frequency Response 40Hz to 18kHz ±3dB
Transmitter: Audio Distortion Less than 1.0% @± 15K deviation
Transmitter: Dynamic Range Better than 100dB
Transmitter: S/N Ratio Better than 95dB
Transmitter: Operating Temperatures 0 to 45 deg.C
Transmitter: Operating Range Up to 300 feet
Transmitter: Oscillator/Modulation Crystal Controlled/FM
Transmitter: Antenna External Antenna
Transmitter: Pre-emphasis 50 Micro Sec.
Transmitter: MAX Input Level 0dBm - 10dBm
Transmitter: RF Output Power 30mW (50mW MAX)
Transmitter: Input Impedance 2.2 k ohms
Transmitter: Audio Adj. Range +30dB
Transmitter: Oscillator PLL synthesized
Transmitter: Battery 9V (006p)
Transmitter: Battery Life 8 to 10 hours with Alkaline Battery
Included Microphone Unit EX-503 electret condenser lavalier microphone
Receiver: Dimensions (W x D x H) 3.9" x 6.3" x 1.9" (98.4 x 160.4 x 47.6 mm)
Receiver: Weight 17.6oz (500g)
Transmitter: Dimensions 2.4" x 3.4" x 0.85"(60 x 86 x 21.5 mm) (W x D x H)
Transmitter: Weight 3.9 oz (112g) (Without Battery, Mic, Cable)
