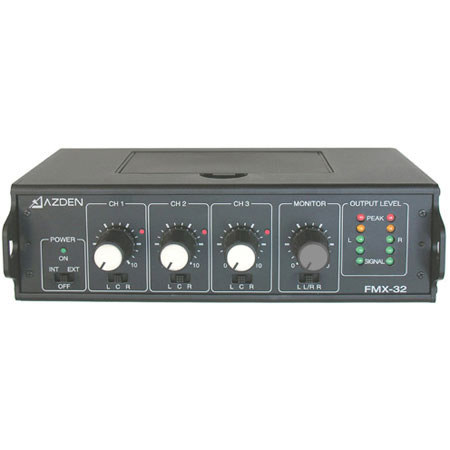

Azden FMX32 3 Channel Professional Field Mixer with 3 XLR Inputs, 2 XLR Outputs plus a Mini-plug Output.

Mfr. Part: FMX32     SKU: VDAZFMX32

Azden FMX32 3 Channel Professional Field Mixer with 3 XLR Inputs, 2 XLR Outputs plus a Mini-plug Output.
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes
Hook-and-loop Fastener

Description
· A portable 3-channel field mixer with phantom power, the FMX-32 is designed for use by the professional videographer. The small (1.96 x 6.69 x 4.33 inches), all metal, battery operated (6-AA) mixer can be attached directly to the camera with supplied hook-and-loop mounting tape.

The FMX-32 has the following features: enhanced circuitry for improved signal-to-noise ratio, 5-step LED array for easy signal monitoring, a 12V DC input for external power, switchable input limiter to reduce the possibility of overload distortion, channel-addressable outputs and a 1/4" monitor headphone jack with level control.

It also has: 3 balanced XLR mic inputs each with switchable phantom power, 2 channel addressable balanced XLR line-level outputs with level controls, a stereo mini-jack (3.5mm) output, and a POWER On/Off/Low Battery LED indicator.

Features
Professional field mixer w/3 XLR assignable inputs
2 XLR outputs plus a mini-plug output
Adjustable input level
Headphone monitor w/volume control
LEDs for Peak Level, power and battery condition
Supplied w/hook-and-loop fastener

Specifications
Frequency ResponseMain and Unbalanced Output: 40-17,000Hz (-3dB)
Monitor Output: 50-17,000Hz (-3dB)
Noise LevelLeft & Right Channel: -114dBu (A weighted, Input Equivilent Level)
T.H.D.Less than 0.05% @ 1KHz (+10dBu output)
MIC Input LevelElectronic Balanced: -50dBu
Balanced Output LevelElectronic Balanced:
-0dBu (100K ohm load)
-6.5dBu (600 ohm load)
Unbalanced Output Level3.5mm Stereo: -50dBu (100K ohm load)
Monitor Output3.5mm Stereo: -4dBu (32 ohm load)
(Recommended load 16-100 ohms)
Maximum Output LevelBalanced Output:
+14dBu (100K ohm load
+6.5dBu (600 ohm load)
Unbalanced Output
-36dBu (100K ohm load)
Battery Type/Duration6-"AA" Alkaline - 15 hours
Current Drain47mA nominal (Phantom Power Off)
100mA maximum (Phamtom Power On)
Phantom Power Voltage48VDC (+/- 4VDC)
Size50H x 170W x 110D mm (1.96 x 6.69 x 4.33 inches)
Weight w/o Battery27.9 ounces (791 grams)
Weight3.00 lbs
