Azden SGM-PDII Mini Shotgun Microphone with Phantom Power and XLR Connection

Mfr. Part: SGMPDII     SKU: VDAZSGMPDII

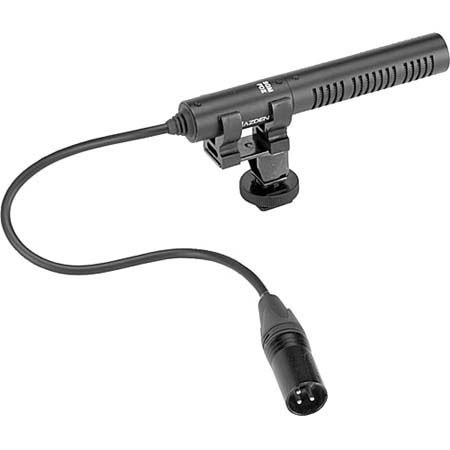

Azden SGM-PDII Mini Shotgun Microphone with Phantom Power and XLR Connection
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes
Azden SGM-PDII Microphone with fixed XLR cable, Shock absorbing Shoe Mount, Windscreen, Carry-Pouch, User Manual

Description
The new Azden SMX-PDII is a mini shotgun microphone with a balanced 3-pin XLR mic output. The SMX-PDII works perfectly with broadcast and prosumer cameras that offer phantom power. The SGM-PDII is 150 mm long, has a 21mm diameter, uni-directional mono mic pick-up and a frequency range of 80Hz-18kHz. The SGM-PDII microphone requires phantom power from the camera (or mixer). If your camera has phantom power on its XLR audio connections, then it should work with this microphone.

Features
Compact Design for ENG camera mounting
Easily attached to DV cameras with attached XLR cable
Powered by 11~52V phantom power

Specifications
ElementElectric Condenser
Frequency response:80Hz-18kHz
Sensitivity:Cardioid: -33dB @ 1kHz (0db=1V/Pa)
Maximum Input Sound Level120dB SPL (1kHz @ 1% THD)
Signal-to-Noise Ratio70dB (1kHz @ 1Pa)
Phantom Power Requirements11~52V
Impedence1.5k @ 1kHz
Output ConnectorFixed 3-pin XLR cable (33cm long
Dimensions150 mm long, 21mm diameter
Weight:110g
