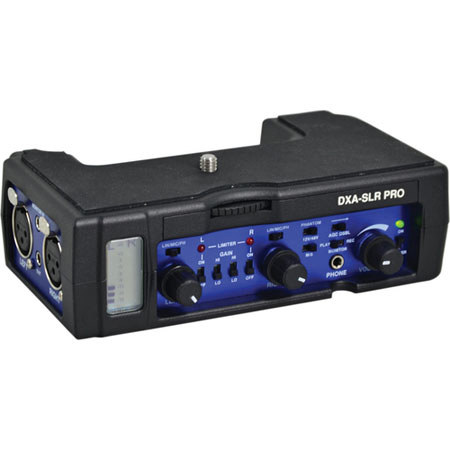

About BeachTek DXA-SLR PRO HDSLR Audio Adapter
The BeachTek DXA-SLR PRO HDSLR Audio Adapter is designed to enhance audio quality with virtually any HDSLR camera by providing high quality XLR inputs, AGC disabling, built-in limiting, headphone monitoring, comprehensive metering and more. Connect up to two microphones and provide 12 or 48 V phantom power to professional condenser microphones.
Each channel features a gain control switch with 0 and 15 dB settings and the low-noise preamplifiers and throughput ensure pristine audio quality, wide frequency response and detail. The AGC (Automatic Gain Control) disabling feature eliminates audio level fluctuations that can ruin an otherwise good take. The unit is built tough, mounts to the base of HDSLR cameras and its rear mounted VU meter displays level in 3 dB increments.
BeachTek DXA-SLR PRO HDSLR Audio Adapter Features
- Two XLR Inputs: High quality Neutrik XLR inputs allow you to connect professional grade microphones
- Phantom Power: 12 or 48 V phantom power can be sent to each channel for powering condenser microphones
- Gain: Each channel features a switchable 15 dB gain switch
- Limiters: Limiters protect against noise and distortion caused by unpredictable peaks and loud signals
- AGC Disable: The AGC Disable feature allows the camera to record clean audio without wavering levels caused by the camera's AGC compensation
- VU Meter: Comprehensive VY metering with an intuitive LCD screen mounted on the back. The meter levels in 3 dB increments
- Headphone Output: The headphone output enables the monitoring from the adapter during recording. The camera's audio playback can be monitored with the A/V output connected to the adapter, rather than having to listen via the camera's built-in speaker
- Low Noise preamplifiers: The adapter's low-noise, low distortion and wide-frequency response preamps ensure superb audio quality
