Blackmagic Design

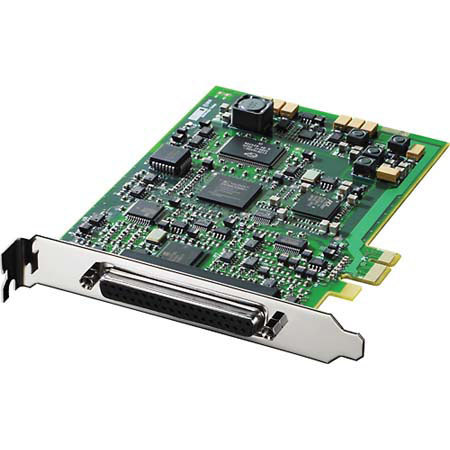

Blackmagic Design Decklink Extreme PCIe Uncompressed 10-Bit SD-SDI Video Capture PCIe Card, NTSC/PAL, Mac/Win
Mfr. Part: BDLKEXTPCIE SKU: VDBMDLEXP
$850.00 Before $30.05 Savings
|
|
 |
|
|
|
Item Includes
Blackmagic Design DeckLink Extreme PCIe PCI Card - AV Breakout Cable - Full Suite of Plug-ins for Adobe Premiere Pro - Genlock Input - RGB QuickTime Preview Output - Photoshop Plug-in - Blackmagic Design Warranty
|
Description
| The Blackmagic Design DeckLink Extreme PCIe features high quality 10-bit uncompressed SD-SDI & analog video for the Mac and Windows platform through the use of a 2.5GHz PCI-Express slot. DeckLink Extreme PCIe is the perfect solution for connecting to high end broadcast digital and analog decks such as Digital Betacam/Betacam SP, D5 and D1. True 10-bit SDI/YUV capture retains all the subtle detail in your images, even during the heaviest multi generation rendering and video processing. |
Features
 |
Connect to Digital Video & Analog Monitoring: Featuring the highest quality 10-bit uncompressed SD-SDI, DeckLink Pro is perfect for connecting to high end decks such as Digital Betacam, D1 and DVCPRO 50 |
|
Built-In Professional Quality Audio: The DeckLink Pro features unbalanced AES digital audio out for incredible quality and sample accurate AV sync. DeckLink Pro unbalanced AES audio outputs is also compatible with S/PDIF consumer audio, so you can use inexpensive HiFi equipment for audio monitoring |
|
Choose Windows XP or Mac OS X: DeckLink Pro can be plugged into either Windows XP or Mac OS X systems. You can move the DeckLink Pro between operating systems allowing you to constantly reconfigure your facility as your needs change |
|
True 10-Bit Uncompressed SDI Capture & Playback: DeckLink Pro supports full 10-bit SDI uncompressed video capture and playback for great image quality. Ideal for Digital Betacam , D1 and Panasonic DVCPRO 50 decks, uncompressed 10-bit is the highest quality possible from the SDI television system |
|
Flexible File Formats: When used with Mac OS X and Windows XP operating systems, you can select from the highest quality 10-bit uncompressed and 8-bit uncompressed |
|
Design & Effects: High quality effects and design work has never been easier. The DeckLink Pro card is fully compatible with the standard software tools for broadcast designers, such as Adobe After Effects, Apple Shake, Apple Motion, Combustion and Photoshop |
|
Broadcast Paint & Graphics: Broadcast graphics-work demands absolute quality and seamless integration with software for speed. Adobe Photoshop has become the tool of choice for broadcast designers worldwide because of its industry standard interface and powerful tool set |
|
HD to SD Down Conversion: The DeckLink Pro card supports playback, software, down conversion from HDTV1080 and HDTV720 to SDTV. Software down conversion can be enabled or disabled with a software switch in the System Preferences>Blackmagic DeckLink on a Mac G5 system |
|
Flexible File Formats: When used with Mac OS X and Windows XP operating systems, you can select from the highest quality 10-bit uncompressed and 8-bit uncompressed. When used on Mac OS X, DeckLink Extreme PCIe includes support for DV and JPEG compressed video formats |
Specifications
| Type | SD-SDI 4:2:2 & analog video, audio capture and playback card |
| Compatible with | iDVD
DVD Studio Pro
Adobe Premiere Pro
Apple Final Cut Pro HD
Adobe After Effects
Combustion
Shake |
| Video System | NTSC & PAL |
| SD | 720x576 @25fps PAL
720x486 @29.97fps NTSC |
| Video Formats | Uncompressed 10-bit SD-SDI/Analog YUV |
| Audio Formats | 48 kHz, 24-bit |
| Host Connection | PCI-Express x1, x4, x8 and x16 slot |
| Video Digital | 1 x BNC SD-SDI, in
1 x BNC SD-SDI, out |
| Video Analog | 3 x BNC YUV, in
3 x BNC YUV, out
1 x BNC Composite, monitoring out |
| Input and Output Connectors | Audio Digital: 1 x RCA AES-S/PDIF, monitoring out
8-Ch. SDI embedded audio, I/O |
| Analog | 2 x XLR L/R Balanced, in
2 x XLR L/R Balanced, out |
| Deck Control | 1 x 9-pin RS-422 |
| Genlock | 1 x BNC Genlock, in |
| Real-Time Output | Yes |
| Real-Time Layers | Application Dependent |
| Hardware Real-Time Effects | Application Dependent |
| WYSIWYG Support | Yes |
| Macintosh System Requirements | Software:Mac OS X 10.4.3
Final Cut Pro HD v5.0.3
QuickTime 7.0.3
DeckLink v5.1.2 drivers
Hardware:Any PowerMac G5 with PCI-Express (PCIe) slots |
| Windows System Requirements | Software:Windows XP SP2
DirectX 9.0
Quicktime 7.0.3 |
| Warranty | Blackmagic Design warranty |
| | |
|
|
|
|
|
|
|
|
|
