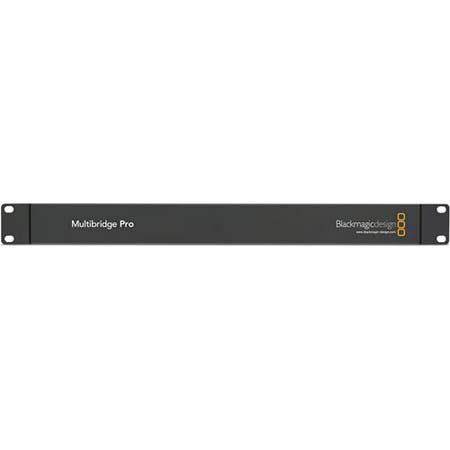

Capture and Playback: Multibridge connects to your computer via PCI Express and works just like a capture and playback card that plugs into your Mac or PC. All electronics are contained in a compact external chassis connected to your computer via an included PCI Express cable and plug in board |
|
Connect to Anything: All Multibridge models support SDI, HDMI and analog video input and output. Capture and playback from any SDI, HDMI or analog broadcast deck, camera or monitor |
|
More audio connections: No other editing system has such a wide range of audio connections and metering. Multibridge Eclipse supports a massive 12 channels of AES/EBU digital audio on balanced XLR connectors, as well as 4 channels of pro balanced analog audio on XLR connectors |
|
3 Gb/s SDI Connections: Multibridge Eclipse and Multibridge Pro are the first editing solutions to include high speed 3 Gb/s SDI connections. 3 Gb/s SDI is the latest version of the SDI video standard that allows 4:4:4 RGB and 2K film connection with a single BNC type connection |
|
The All-in-one Converter: When you disconnect the PCI Express cable from the host computer you have the ideal solution for converting analog equipment to SDI-based digital systems, as all Multibridge models will instantly switch into a bi-directional broadcast video and audio converter |
|
Built in HDMI: You'll love the full resolution HDMI input and output built into every Multibridge model. Use the HDMI output for connecting to any HDMI television or video projector for full HD resolution monitoring at much lower cost than a dedicated HD broadcast monitor |
|
World's Highest Quality: Fully compatible with SDI and HD-SDI 4:2:2, Multibridge Eclipse also features Dual Link HD-SDI 4:4:4 connections for feature film quality. Dual Link 4:4:4 is used on the latest Sony HDCAM SR decks |
|
Standard Definition, HDTV or 2K Film: All Multibridge models feature dual rate SDI and are completely format independent, so you can switch between high definition or standard definition instantly. Easily connect to 270 Mb/s standard definition SDI equipment such as Digital Betacam |
|
Compatible with all Video Software: Multibridge models include a high speed PCI Express connection so you can connect to a host computer and then use a wide range of video software for video capture and playback |
|
Down Conversion and Real Time Effects: Multibridge features massive processing power, that is fantastic for broadcast quality HD down conversion and other processing based features. Down conversion is great when it is plugged into Mac OS X & Windows platforms via the built-in PCI Express connection |
|
Connect to a Host Computer: Multibridge has many uses and one of the most exciting, is to connect the built-in PCI Express connection to a host computer for a perfect editing and design system. All outputs will play back video and you can capture video from any of the analog or digital inputs |
|
Connecting to a Traditional Analog World: Connecting to older analog decks such as a Betacam SP is easy using Multibridge. The bi-directional SDI to analog and analog to SDI connections, allows you to connect to and from the deck use bidirectional simultaneously |
|
Full Resolution HD Monitoring Solution: You'll love the full resolution HD monitoring that's included with Multibridge via the built in HDMI output connection. Connect any HDMI television or video projector for full HD resolution monitoring at much lower cost than a dedicated HD broadcast monitor |
|
Dual Rate Analog CRT Monitoring: One of the biggest monitoring problems in a modern facility is not being able to switch between standard definition and high definition quickly |
|
Non Linear Editing: Multibridge is the perfect companion for editing software such as Apple's Final Cut Pro on Mac OS X and Adobe Premiere Pro on Windows or Mac OS X. Blackmagic Design works closely to support all the special features in these software applications |
|
Design and Effects: High quality effects and design work has never been easier. Multibridge with PCI Express is fully compatible with the standard software tools for broadcast designers, such as After Effects, Fusion, Combustion and Photoshop |
|
Broadcast Paint and Graphics: Broadcast graphics work, demands absolute quality and seamless integration with software for speed. Adobe Photoshop has become the tool of choice for broadcast designers worldwide because of its industry standard interface and powerful tool set |
| Connections | Multibridge Pro 2 |
| SDI Video Input | 2 x 10 bit SD, HD, 3Gb/s HD and 2K switchable Usable as Dual Link HD-SDI for 4:2:2 or 4:4:4 connection or 3 Gb/s for HD-SDI 4:4:4 or 2K |
| SDI Video Output | 2 x 10 bit SD, HD, 3Gb/s HD and 2K switchable Usable as Dual Link HD-SDI for 4:2:2 or 4:4:4 connection or 3 Gb/s for HD-SDI 4:4:4 or 2K |
| Supported SDI Formats | 525 NTSC, 625 PAL, 720HD, 1080HD and 2K 2048 x 1556 switchable |
| Analog Video Input | Component YUV, NTSC, PAL and S-Video switchable between SD and HD in Component |
| Analog Video Output | Component YUV, NTSC, PAL and S-Video switchable between SD and HD in Component |
| Supported Analog Formats | 525 NTSC, 625 PAL, 720HD and 1080HD switchable |
| SDI Audio Input | 16 Channels in HD and 2K capture and playback mode; 8 Channels supported in SD
16 Channels de-embedding supported from SDI input in converter mode |
| SDI Audio Output | 16 Channels in HD and 2K capture and playback mode; 8 Channels supported in SD
16 Channels embedding supported to SDI output in converter mode |
| Analog Audio Input | 2 Channels of professional balanced XLR analog audio |
| Analog Audio Output | 2 Channels of professional balanced XLR analog audio
2 Channels of unbalanced RCA analog audio for monitoring |
| AES/EBU Audio Input | 4 x inputs on DB-25 for 8 audio channels; Sample rate converted |
| AES/EBU Audio Output | 4 x outputs on DB-25 for 8 audio channels |
| HDMI Audio Input | 2 Channels |
| HDMI Audio Output | 2 Channels |
| Audio Capture Support | 16 Channels in HD and 2K, 8 channels in standard definition |
| Audio Playback Support | 16 Channels in HD and 2K, 8 channels in standard definition |
| HDMI Video Input | Direct HDMI connection supports HDMI capture from HDMI compatible cameras, set top boxes, decks and video games |
| HDMI Video Output | Direct HDMI connection supports HDMI digital compatible displays, such as a TV or video projector Includes both audio and video |
| HDMI Configuration | HDMI automatically configures to connected display |
| HDMI Resolution | Pixel for pixel HD resolution input to connected device |
| HDMI Color Precision | 4:2:2 10 bit Y,B-Y,R-Y and 10 bit RGB |
| Multi Rate Support | SDI and component analog video connections are switchable between standard definition and high definition SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI |
| 2K Film Support | 2048 x 1556 at 24fps and 23.98fps capture and playback via SDI |
| Sync Input | Blackburst in SD or TriSync HD |
| Device Control | Sony compatible RS422 deck control port
Serial ports TxRx direction-reversible under software control |
| SD Format Support | 625/25 PAL, 525/29.97/23.98 NTSC |
| HD Format Support | 720p50, 720p59.94, 1080PsF23.98/24, 1080i48, 1080i50 and 1080i59.94 |
| 2K Format Support | 2048 x 1556/23.98 and 24 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 372M |
| Video Sampling | 4:2:2 and 4:4:4 SDI & analog switchable |
| Color Precision | 4:2:2 10 bit and 4:4:4 10 bit |
| Color Space | 4:2:2 YUV, 4:4:4 YUV and 4:4:4 RGB |
| Analog Composite | NTSC/PAL 14 bit and 5x Over-sampled Output |
| SDI Metadata Support | VITC read for 3:2 pulldown removal with DeckLink driver; VANC capture and playback using up to 3 lines of video in file when used with DeckLink driver |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| Colorspace Conversion | Hardware based real time |
| HD Down Conversion | Supports playback from HD to SD; Supports down conversion on capture from HD video input to SD files; Anamorphic and letter box formats selectable |
| HD Up Conversion | Supports capture from SD and 720HD video input to 1080HD files |
| Real Time Effects | Apple Final Cut Pro internal effects on Mac OS X
Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed edit formats |
| Configuration Software | Blackmagic Design System Preference and Control Panel |
| Software Included | Deck Control, Disk Speed Test and Blackmagic driver |
| Installation | Connected via PCI Express cable and plug in adapter card on compatible PCIe Windows systems. Connected via PCI Express cable and plug in adapter card on PCIe Apple Mac OS X systems |
| Software Control | Multibridge Utility included free for Windows XP, Windows Vista and Mac OS X |
| Firmware Upgrade | Automatically upgrades when new software is installed |
| Installation | Rack Mount; Adhesive rubber feet included |
| Warranty | Blackmagic Design 3 year limited warranty |
| | |
