Blackmagic Design
Blackmagic Design Decklink SP PCIe Uncompressed 10-bit Analog Video Capture PCI Card with SDI Output, NTSC/PAL, Mac/Win
Mfr. Part: BDLKSPPCIE SKU: VDBMDLSPP
enlarge image
$565.00 Before $30.05 Savings
|
|
 |
|
|
|
Item Includes

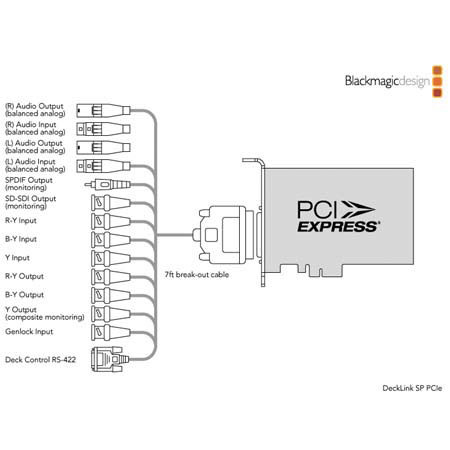

Blackmagic Design DeckLink SP PCIe PCI Card - 7 ft. AV Breakout Cable - Installation Disc - Deck Control Software - Disk Speed Test Software - LiveKey - FrameLink - Blackmagic Driver - Blackmagic Design Warranty
|
Description
| The Blackmagic Design Decklink SP PCIe Video Capture PCI Card features high quality 10-bit uncompressed analog audio & video I/O and SD-SDI monitoring for the Mac and Windows platform through the use of a 2.5GHz PCI-Express slot. DeckLink SP PCIe is the perfect solution for connecting to high end broadcast analog decks such as Betacam SP and outputting to digital formats like, Digital Betacam, D5 and D1. True 10-bit YUV/RGB capture retains all the subtle detail in your images, even during the heaviest multi generation rendering and video processing. |
Features
 |
Connect to Digital Video & Analog Monitoring: Featuring the highest quality 10-bit uncompressed SD-SDI, DeckLink Pro is perfect for connecting to high end decks such as Digital Betacam, D1 and DVCPRO 50 |
|
Built-In Professional Quality Audio: The DeckLink Pro features unbalanced AES digital audio out for incredible quality and sample accurate AV sync. DeckLink Pro unbalanced AES audio outputs is also compatible with S/PDIF consumer audio, so you can use inexpensive HiFi equipment for audio monitoring |
|
Choose Windows XP or Mac OS X: DeckLink Pro can be plugged into either Windows XP or Mac OS X systems. You can move the DeckLink Pro between operating systems allowing you to constantly reconfigure your facility as your needs change |
|
True 10-Bit Uncompressed SDI Capture & Playback: DeckLink Pro supports full 10-bit SDI uncompressed video capture and playback for great image quality. Ideal for Digital Betacam , D1 and Panasonic DVCPRO 50 decks, uncompressed 10-bit is the highest quality possible from the SDI television system |
|
Flexible File Formats: When used with Mac OS X and Windows XP operating systems, you can select from the highest quality 10-bit uncompressed and 8-bit uncompressed |
|
Design & Effects: High quality effects and design work has never been easier. The DeckLink Pro card is fully compatible with the standard software tools for broadcast designers, such as Adobe After Effects, Apple Shake, Apple Motion, Combustion and Photoshop |
|
Broadcast Paint & Graphics: Broadcast graphics-work demands absolute quality and seamless integration with software for speed. Adobe Photoshop has become the tool of choice for broadcast designers worldwide because of its industry standard interface and powerful tool set |
|
HD to SD Down Conversion: The DeckLink Pro card supports playback, software, down conversion from HDTV1080 and HDTV720 to SDTV. Software down conversion can be enabled or disabled with a software switch in the System Preferences>Blackmagic DeckLink on a Mac G5 system |
|
Streaming Video: The DeckLink Pro card is ideal for streaming as you get a clean uncompressed video source for your streaming files. Uncompressed source video also means you don't waste CPU time de-compressing video, so you get faster rendering of your streaming files |
|
DVD Authoring: With DVD's replacing VHS tapes as the most popular consumer format, creating DVDs from your work has become important. DVDs from uncompressed media are much higher quality and all media files used on the DeckLink Pro are QuickTime or AVI |
|
Great for Monitoring: The DeckLink Pro card makes a great combination for monitoring in your edit suite. Even if you don't have a deck or camera connected to your computer, DeckLink Pro makes a great high quality way to monitor your edit as you work |
|
Live Broadcast Graphics Presentation: Use the built-in keyer for overlaying graphics live over the video input. Even if you're only adding station indents, internal keying makes it easy. Use the Blackmagic LiveKey application for controlling key levels and even adjusting the opacity of keys |
Specifications
| Type | Analog video and audio capture and playback card with SD-SDI 4:2:2 monitoring |
| Compatible with | iDVD
DVD Studio Pro
Adobe Premiere Pro
Apple Final Cut Pro HD
Adobe After Effects
Combustion
Shake |
| Video System | NTSC & PAL |
| SD | 720x576 @25fps PAL
720x486 @29.97fps NTSC |
| Video Formats | Uncompressed Analog YUV/RGB
10-bit 4:2:2 SD-SDI |
| Audio Formats | 48 kHz, 24-bit |
| Host Connection | PCI-Express x1, x4, x8 and x16 slot |
| Video Digital | 1 x BNC SD-SDI, monitoring out |
| Video Analog | 3 x BNC YUV, in
3 x BNC YUV, out
1 x BNC Composite, monitoring out |
| Input and Output Connectors | Audio Digital: 1 x RCA AES-S/PDIF, monitoring out
8-Ch. SDI embedded audio, I/O |
| Analog | 2 x XLR L/R Balanced, in
2 x XLR L/R Balanced, out |
| Deck Control | 1 x 9-pin RS-422 |
| Genlock | 1 x BNC Genlock, in |
| Real-Time Output | Yes |
| Real-Time Layers | Application Dependent |
| Hardware Real-Time Effects | Application Dependent |
| WYSIWYG Support | Yes |
| Macintosh System Requirements | Software:Mac OS X 10.4.3
Final Cut Pro HD v5.0.3
QuickTime 7.0.3
DeckLink v5.1.2 drivers
Hardware:Any PowerMac G5 with PCIe slots |
| Windows System Requirements | Software:Windows XP SP2
DirectX 9.0
Quicktime 7.0.3 |
| Warranty | Blackmagic Design warranty |
| | |
|
|
|
|
|
|
|
|
|
