Item Includes
Blackmagic Design DeckLink SDI 10 Bit SD/HD-SDI Capture Card - Deck Control Software - Disk Speed Test Software - LiveKey Software - FrameLink Software - Blackmagic Driver - DeckLink Studio Breakout Cable - Blackmagic Design 1 Year Limited Warranty
|
Description

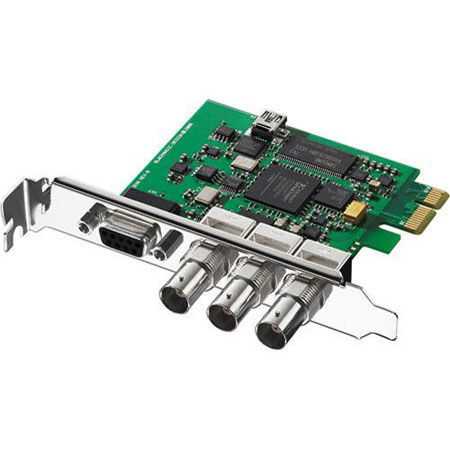

The Blackmagic Design DeckLink SDI gives you incredible quality SD/HD-SDI capture and playback on any PCI Express Windows or Intel-based Mac Pro computer. It is perfect for use with SDI decks, or in large facilities with SDI routers. The world's smallest and most affordable 10 bit SDI video card works in both SD and HD and includes blackburst, tri-sync reference input, 8 channels of SDI embedded audio and RS422 deck control.
DeckLink SDI is perfect when combined with routers such as Broadcast Videohub, SDI monitoring such as HDLink and video converters such as Blackmagic Design's Mini Converter range. |
Features
 |
Editing on Mac OS X with Final Cut Pro: Edit in Final Cut Pro while using the highest quality 10 bit HD-SDI video connection to HD decks including, HDCAM, HD-D5 and DVCPRO HD, as well as SD decks such as Digital Betacam |
|
DeckLink SDI is qualified by Apple for Final Cut Pro compatibility. Blackmagic Design works closely with Apple on developing the QuickTime drivers, so you know you're getting the best combination for high end editing |
|
Move between Standard Definition and HDTV: DeckLink SDI supports dual rate SDI so you can instantly switch between SD and HD. This is ideal for modern workflows where HD may be a smaller part of the market for most people |
|
Input and output 10-bit SD/HD SDI video |
|
Hardware downconversion of HD video |
|
Realtime HD video effects |
|
Integrated SD keyer |
|
Mac and Windows compatibility |
|
Supports Final Cut Pro, Premiere Pro, After Effects, Photoshop, Motion, Combustion, iDVD, DVD Studio Pro, Color Finesse, Cleaner and others |
Specifications
| SDI Video Input | 1 x 10 bit SD/HD switchable |
| SDI Video Output | 1 x 10 bit SD/HD switchable |
| Supported Video formats | 525i NTSC, 625i PAL, 720HD and 1080HD |
| Multiple Rate support | Standard definition SDI and high definition SDI |
| Sync Input | Blackburst in SD and 1080i50, 720p50, 1080i59.94, 720p59.94 HD formats or TriSync in all HD formats |
| Device Control | Sony compatible RS422 deck control ports
Serial ports TxRx direction reversible under software control |
| Settings Control | DeckLink System Preferences (Intel Mac OS X) and DeckLink Control Panel (Windows) |
| Updates | Firmware for cards built into software driver. Loaded at system start, or via updater software |
| HD Format Support | 1080PsF23.98/24, 1080i50, 1080i59.94, 720p50 and 720p59.94 |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC |
| SDI Compliance | SMPTE 259M, 292/296M |
| Video Sampling | 4:2:2 |
| Color Precision | 4:2:2 10-bit |
| Color Space | 4:2:2 YUV |
| SDI Metadata Support | VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file. HD RP188 |
| Audio Sampling | Television rate of 48kHz at 24 bit |
| Card type | PCI Express 1 lane, compatible with 1,4,8 and 16 PCIe slots |
| Colorspace Conversion | Hardware based real time |
| HD Down Conversion | Software based down conversion |
| HD Up Conversion | Real-time up conversion from 720HD to 1080HD during video capture |
| Real time effects | Apple Final Cut Pro internal effects in DV, ProRes and uncompressed on Intel Mac OS X
Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed |
| Software Included | Deck Control, Disk Speed Test, LiveKey, FrameLink and Blackmagic driver |
| Firmware Upgrade | Firmware for cards built into software driver. Loaded at system start, or via updater software |
| Installation | PCI Express 1 lane, compatible with 1, 4, 8, 16 lane PCI Express slots |
| Warranty | Blackmagic Design 1 year limited warranty |
| | |
|
