Item Includes
Blackmagic Design DeckLink Studio SD/HD Capture Card - Deck Control Software - Disk Speed Test Software - LiveKey Software - FrameLink Software - Blackmagic Driver - DeckLink Studio Breakout Cable - Media Express Software - Blackmagic Design 3 Years Limited Warranty
|
Description

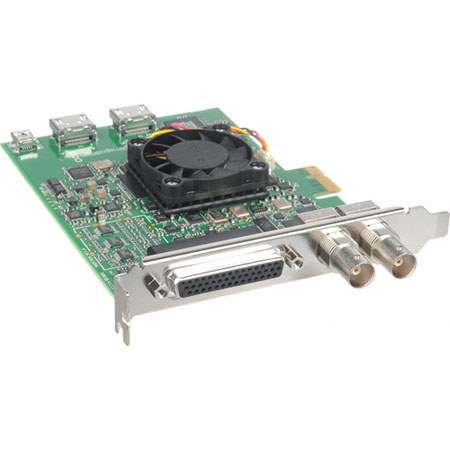

| The Blackmagic Design DeckLink Studio SD/HD Capture Card is a 10 bit video card that works in SD and HD. DeckLink Studio includes SDI, HDMI and analog video, analog and digital audio, keying in SD, a hardware down converter all in a compact and incredibly low cost solution that's perfect for broadcast editing, paint and design. DeckLink Studio supports both SD and HD and plugs into any PCI Express Windows or Intel-based Mac Pro computer. DeckLink Studio includes SD/HD-SDI, SD/HD component, composite, S-Video, 4 ch balanced analog audio, 2 ch AES/EBU, blackburst and tri-sync reference input and RS-422 deck control connections. |
Features
 |
Incredible Analog Connections: Only DeckLink Studio has enhanced analog connections to make it easy to connect to a wider range of analog broadcast equipment. You can simultaneously connect to analog component, S-Video & composite equipment, because it has independent connections for each |
|
True Professional Quality Audio: DeckLink Studio features a massive 4 channels of balanced professional analog audio in and out, as well as 2 channels of AES/EBU digital audio in and out, for broadcast quality and sample accurate AV sync |
|
High Quality: For highest quality digital broadcast workflows, DeckLink Studio includes incredible 10 bit SD/HD-SDI video with low SDI jitter, combined with AES/EBU digital audio with a high performance linear phase digital filtered sample rate converter |
|
More HD Real Time Effects: DeckLink Studio's super fast 2.5 Gb/s 1 lane PCI Express connection plugs directly into Final Cut Pro and Premiere Pro's real time effects processing engine. Unlike FireWire products, you get all your CPU time dedicated to more multi layer HD real time effects |
|
Built in SD Keyer: When working in standard definition, DeckLink Studio includes the most amazing quality digital internal keyer that lets you key RGBA images over the video input |
|
Compatible with Popular Video Software: DeckLink Studio is perfect for editing, broadcast graphics and digital effects work with built in support for your favorite video software such as Apple Final Cut Pro, Adobe Premiere Pro, Adobe After Effects, Adobe Photoshop, eyeon Fusion and many more |
|
Loads of Free Software Utilities: DeckLink Studio's included deck control software lets you control a deck remotely via RS-422 for capture and playback of clips with timecode accuracy |
|
Connect to Anything: DeckLink Studio includes highest quality 10 bit SDI video combined with enhanced analog connections to support a massive range of video equipment. DeckLink Studio includes fully independent connections for SDI, analog component, S-Video and composite video |
|
Access VANC Blanking Data: Capture and playback any line of blanking, using any of the top three lines of your media file. This lets you store test signals, timecode, subtitles and many other custom types of data |
|
Real Time Effects with Final Cut Pro: Many exciting real time effects include Cross Dissolve, Non Additive Dissolve, Additive Dissolve, Fade in Fade out, Dip to Color, Sepia, Desaturate, Brightness and Contrast, Proc Amp, Tint, Gamma Correction and 3 way color correction |
|
Built in Live Keying: DeckLink cards can be switched to keying mode with the Blackmagic LiveKey application |
|
NTSC, PAL 720HD and 1080HD: DeckLink cards have been designed to instantly switch between NTSC (USA and Japan) and PAL ( Europe and Asia), as well as all 720HD and 1080HD standards |
|
Chrysalis: A compelling thriller by author, Ray Bradbury, Chrysalis was produced by Roger Lay, Jr. and edited by Cheyenne Pesko |
|
10:1 Cost Advantage: Traditional systems for editing and design in post production and broadcast are sold as a complete system, so you have no choice in the components or even what software and storage you can use |
|
Metalocalypse: The extremely popular animated series on Adult Swim/Cartoon Network and a huge hit with the male 18-34 segment, Metalocalypse takes HD into a whole new world |
|
Frame Accurate: Editing systems based on Final Cut Pro or Premiere Pro using DeckLink, may be inexpensive but they're certainly professional. Editors demand frame accurate batch capture and perfect AV sync |
|
Uncompressed Video Quality: SDI uses a higher data rate than DV, so it's got the speed to handle full resolution video in standard definition or high definition, completely uncompressed |
|
Insert Automatic Titles: Use LiveKey with DeckLink's SD keying mode to automatically output fill and key using the SDI video outputs. LiveKey has an automatic mode that lets you fade graphics up and down with programmable times |
|
Archiving: By archiving your work onto disk with DeckLink, your work is online whenever you need to view it. File formats such as QuickTime and AVI have been around for longer than many current tape formats and are great for archiving |
|
Most Affordable: All DeckLink cards are built in house with the high speed multi million dollar SMT manufacturing facility, for dramatically lower cost and higher quality products |
|
DeckLink Studio includes fully independent connections for SDI, HDMI, analog component, S-Video and composite video. Both the SDI and analog component connections auto switch between SD and HD, plus there's an extra SD SDI output via a built in hardware down converter for when you're working in HD. |
Specifications
| SDI Video Input | 1 x 10 bit SD/HD switchable |
| SDI Video Output | 1 x 10 bit SD/HD switchable
1 x 10-bit SD only, down converted or key |
| Supported Video formats | 525i NTSC, 625i PAL, 720HD and 1080HD |
| Analog Video Input | 1 x Component video on 3 BNCs
1 x S-Video video on S-Video connector
1 x Composite NTSC/PAL on 1 BNC |
| Analog Video Output | 1 x Component video on 3 BNCs
1 x S-Video video on S-Video connector
1 x Composite NTSC/PAL on 1 BNC |
| AES/EBU Audio Input | 2 channel unbalanced AES/EBU digital audio with sample rate converter |
| AES/EBU Audio Output | 2 channel unbalanced AES/EBU digital audio
Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU audio channels out when using this feature |
| SDI Audio Input | 8 channel embedded in SD and HD |
| SDI Audio Output | 8 channel embedded in SD and HD |
| Analog Audio Input | 4 channels of professional balanced analog audio via 1/4" jack connectors |
| Analog Audio Output | 4 channels of professional balanced analog audio via 1/4" jack connectors.
Channels 3 and 4 can switch to AES/EBU outputs |
| HDMI Audio Input | 2 channels |
| HDMI Audio Output | 2 channels |
| HDMI Video Input | Direct HDMI connection supports HDMI capture from HDMI compatible cameras, set top boxes, decks and video games |
| HDMI Video Output | Direct HDMI connection supports HDMI digital compatible displays, such as a TV or video projector. Includes both audio and video |
| HDMI Configuration | HDMI automatically configures to connected display |
| HDMI Resolution | Pixel for pixel HD resolution input to connected device |
| HDMI Color Precision | 4:2:2 10 bit |
| Multiple Rate support | Standard definition SDI and high definition SDI |
| Sync Input | Blackburst in SD and 1080i50, 720p50, 1080i59.94, 720p59.94 HD formats or TriSync in all HD formats |
| Device Control | Sony compatible RS422 deck control ports
Serial ports TxRx direction reversible under software control |
| Settings Control | DeckLink System Preferences (Intel Mac OS X) and DeckLink Control Panel (Windows) |
| Updates | Firmware for cards built into software driver. Loaded at system start, or via updater software |
| HD Format Support | 1080p23.98/24, 1080i50, 1080i59.94, 720p50 and 720p59.94 |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC |
| SDI Compliance | SMPTE 259M, 292/296M |
| Video Sampling | 4:2:2 |
| Color Precision | 4:2:2 10-bit |
| Color Space | 4:2:2 YUV |
| SDI Metadata Support | VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file. HD RP188 |
| Audio Sampling | Television rate of 48kHz at 24 bit |
| Card type | PCI Express 1 lane, compatible with 1,4,8 and 16 lane PCIe slots |
| Copy Protection | For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP |
| Colorspace Conversion | Hardware based real time |
| HD Down Conversion | Built in hardware down conversion. High quality down converter always outputs to SD-SDI, Composite and S-Video outputs when working in HD video formats. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles |
| HD Up Conversion | Real-time up conversion from 720HD to 1080HD during video capture |
| Real time effects | Apple Final Cut Pro internal effects in DV, ProRes and uncompressed on Intel Mac OS X
Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed |
| Software Included | Media Express, Disk Speed Test, LiveKey, FrameLink and Blackmagic driver |
| Firmware Upgrade | Firmware for cards built into software driver. Loaded at system start, or via updater software |
| Installation | PCI Express 1 lane, compatible with 1, 4, 8, 16 lane PCI Express slots |
| Warranty | Blackmagic Design 3 years limited warranty |
| | |
|
