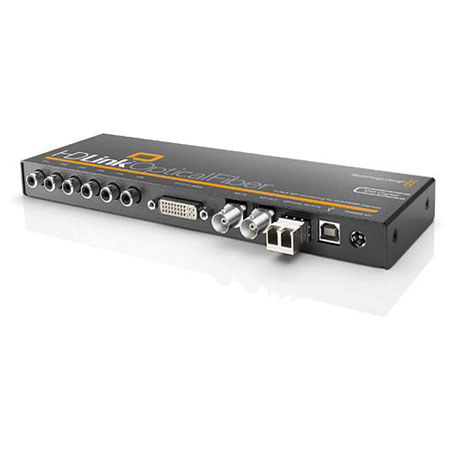

Full Resolution HD Monitoring: HDLink connects SDI video directly to any supported DVI-D based LCD computer monitor for incredible true HDTV resolution video monitoring. HDLink includes 3 Gb/s SDI for high resolution 2K film monitoring when connected to a large 30 inch DVI display. |
|
Supports both DVI and HDMI: HDLink supports all DVI-D based digital computer displays and now also includes HDMI video support. HDMI supports video at 1080i/50, 1080i/59.94 and 720p/59.94 on any HDMI device. DVI-D supports displays at 1920 x 1200 (16:10) resolution for all 1080 HDTV formats. |
|
World's Highest Quality 3 Gb/s SDI in 4:4:4: It is first full HDTV resolution 4:4:4 monitoring solution that supports both standard definition SDI, HD-SDI and HD-SDI 4:4:4 for full resolution color monitoring. HD-SDI 4:4:4 features twice the color resolution. |
|
Built in Optical Fiber: It is the world's first broadcast monitoring solution with built in optical fiber SDI connections. Optical fiber easily handles long distances, is low cost and optical fiber cables last virtually forever because you can keep plugging them into faster equipment in the future. |
|
Standard Definition, HDTV or 2K: HDLink supports all SDI based formats from standard definition NTSC/PAL to HD-SDI 1080 and 720 and even 2K film resolution when used with DVI displays. HDLink features 3 Gb/s SDI. |
|
Color Management via 3D Lookup Tables: It features more advanced 3D lookup tables. Advanced 3D lookup tables increase color control because a blend of red, green and blue video can be output to each primary color on the connected display. |
|
Supports LCD Displays: It supports DVI-D based digital computer displays. For 1080 and 720 HDTV formats, a 1920 x 1200 (16:10) resolution display is recommended. However, if you're working in 720 HDTV formats only, then a 1280 x 800 resolution display is recommended. |
|
Analog Audio Monitoring Output: Audio outputs are de embedded from the SDI input and then converted to analog at an incredible 24 bit. It supports 6 channels out allowing easy monitoring of 5.1 sound audio. Audio is output on RCA connectors so you can easily connect to standard HiFi systems. |
| SDI Video Input | 1 x BNC input switches between SD-SDI, HD-SDI 4:2:2, HD-SDI 4:4:4 and 2K via SDI |
| SDI Video Output | 1 x BNC active loop through output switches between SD, HD 4:2:2, HD 4:4:4 and 2K |
| Optical Fiber Video Input | 1 x LC connector switches between SD-SDI, HD-SDI 4:2:2, HD-SDI 4:4:4 and 2K via SDI |
| Optical Fiber Video Output | 1 x LC connector active loop through output switches between SD, HD 4:2:2, HD 4:4:4 and 2K. Use Single mode for 25 km output |
| SDI Audio De-embedding | 6 channels out de-embedded from SDI input |
| Multi Rate SDI Support | 270 Mb/s standard definition, 1.5 Gb/s high definition 4:2:2, 3 Gb/s 4:4:4 high definition and 2K film |
| Analog Audio Output | 6 x unbalanced 24 bit analog outputs on RCA connectors -10db |
| DVI-D Video Output | Supports Dual Link DVI-D displays up to 30 inches 2560 x 1600 in size |
| DVI-D Configuration | Automatic adjustment using VESA E-EDID1.3
Manual override of display configuration via HDLink Utility software |
| DVI-D Resolution | Pixel-for-pixel display on LCD displays |
| DVI-D Connection | Via any DVI-D. Compatible with single-link and dual-link DVI cables.
DVI-D video support only. Audio via RCA analog outputs |
| HDMI Audio Output | Audio combined with video in HDMI connection |
| HDMI Video Output | Supports HDMI displays, such as a TV or video projectors up to 1920 x 1080 resolution |
| HDMI Configuration | Automatically configures to connected display |
| HDMI Resolution | Pixel for pixel HD resolution input to connected device |
| HDMI Connection | Via included DVI-D male to HDMI Type A female adaptor. Plug into HDLink when connecting to HDMI devices. HDMI video supports HDMI audio |
| Gamma Correction | Independently adjustable 3D lookup tables per color component. Interactive real time adjustment of lookup tables |
| Updates and Configuration | USB 2.0 High Speed (480Mb/s) interface |
| HD Format Support via DVI-D | 1080PsF23.98, 1080PsF24, 1080i48, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60, 2048 x 1556p23.98 and 2048 x 1556p24 |
| HD Format Support via HDMI | 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60 |
| SD Format Support via DVI-D | 625/25 PAL and 525/29.97 NTSC |
| SD Format Support via HDMI | 625/25 PAL and 525/29.97 NTSC |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 425M-B, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Color Precision | 4:2:2 10 bit and 4:4:4 10 bit |
| SDI Color Space | 4:2:2 YUV, 4:4:4 YUV and 4:4:4 RGB |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| Software Control | HDLink Utility included free for Windows XP, Windows Vista and Mac OS X Universal Binary for Intel and PowerPC based Macs. |
| Firmware Upgrade | Automatically when new HDLink Utility is installed. |
| Real Time Processing | Adaptive pull-down processor guarantees smooth motion display. |
| Video Scaling via DVI-D | Pixel for pixel display. Scale up SD to fill display. Scale up HD to fill display. |
| Installation | Small brick style compact design. |
| Power Supply | 12 Volt universal power supply included. IEC power cable required. |
| Interface | DVI-D digital type connection to LCD computer monitor or HDMI Type A digital type connection to HDMI display, e.g. TV or video projector |
| Resolution via DVI-D | 1920 x 1200 required for HD1080 video SDI formats. 1280 x 800 recommended for HD720 video SDI formats. Please note that few, if any, DVI-D displays support 720p50. 2560 x 1600 required for 2K feature film formats |
| Resolution via HDMI | The HDMI input of a display must accept either: 1920 x 1080 for HD1080 video SDI formats or 1280 x 720 for HD720 video SDI formats |
| Refresh Frame Rate for DVI | Nominal 60Hz, however 48 to 72 Hz recommended |
| Warranty | Blackmagic Design 3 years limited warranty |
| | |
