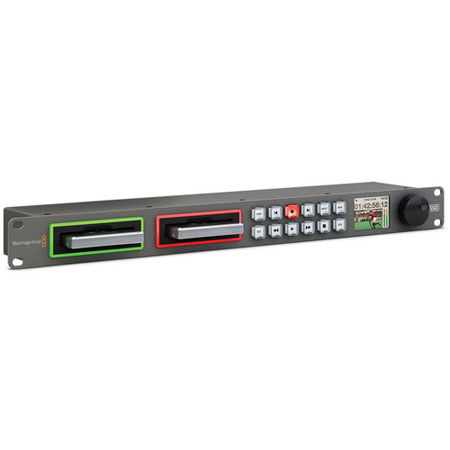

The Blackmagic Design HyperDeck Studio Pro is a file-based deck that records uncompressed in QuickTime and compressed in ProRes and DNxHD, storing the files onto two 2.5" SSDs. Two SSD slots are available and allow continuous recording - the second disk automatically begins recording when the first becomes full. The disks can afterwards be hooked up to a computer by USB.
A diverse set of connections consists of 3G SDI, component, HDMI, XLR, RCA, Thunderbolt, USB and RS422. SD, HD and 2K formats are supported and capacity is additionally available for 4K playback from an SSD in ProRes. Color options are SD and HD 10-bit 4:2:2 and 4:4:4. Recording in 4:2:2 uncompressed offers higher dynamic range and thus more precision in color correction. Alternatively, recording in compressed ProRes or DNxHD allows five times longer recording and all the same maintains 10-bit color and full frame 1920 x 1080 sampling.
The panel controls and overall functionality of the HyperDeck Studio Pro are very similar to those of traditional tape decks. The transport buttons are illuminated crystal; a jog/shuttle wheel is available; and an integrated LCD displays timecode and transport information, full color thumbnail previews of the clips being recorded or played back and also format, frame rate and audio levels.
| SDI Video Input | 4 x 10-bit SD/HD/3 Gb/s SDI switchable |
| SDI Video Output | 4 x 10-bit SD/HD/3G Gb/s SDI switchable 1 x 10-bit SD/HD/3 Gbs/SDI switchable Monitor Output |
| Analog Video Input | 1 x Component YUV on 3 BNCs, supports HD and SD |
| Analog Video Output | 1 x Component YUV on 3 BNCs, supports HD and SD |
| HDMI Video Input | 1 x HDMI type A connector |
| HDMI Video Output | 1 x HDMI type A connector |
| Analog Audio Input | 2 x XLR connectors for professional balanced analog audio 2 x RCA connectors for unbalanced analog audio from consumer equipment |
| Analog Audio Output | 2 x XLR connectors for professional balanced analog audio |
| SDI Audio Input | 16 channels embedded in SD and HD in QuickTime files 2 channels in Avid DNxHD MXF files |
| SDI Audio Output | 16 channels embedded in SD and HD in QuickTime files 2 channels in Avid DNxHD MXF files |
| HDMI Audio Input | 8 channels embedded in SD and HD in QuickTime files 2 channels in Avid DNxHD MXF files |
| HDMI Audio Output | 8 channels embedded in SD and HD in QuickTime files 2 channels in Avid DNxHD MXF files |
| Timecode Input | 1 x XLR connector for timecode input |
| Timecode Output | 1 x XLR connector for timecode output |
| SSD Interface | 2 x 2.5" SATA 6Gb/s |
| Sync Input | Blackburst or Tri-Sync |
| Device Control | Sony compatible RS422 deck control port |
| Recorder Control | 12 buttons and jog wheel for local control of HyperDeck Studio Pro or use either RJ45 Ethernet or USB 2.0 high speed interface |
| Recorder Configuration | Use USB 2.0 high speed interface |
| Computer Interface | 1x Thunderbolt port for capture of video and audio 1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control |
| SD Format Support | 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| 2K Format Support | 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25 |
| 4K Playback Format Support | 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30 4K playback is supported from a single ProRes QuickTime file |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M |
| SDI Metadata Support | HD RP188 and closed captioning |
| Audio Sampling | Television standard sample rate of 48kHz and 24 bit |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| Multiple Rate support | SDI, HDMI and component analog video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content |
| Codec Support | Uncompressed QuickTime, Apple ProRes 422 (HQ) QuickTime, Avid DNxHD QuickTime, Avid DNxHD MXF |
| Displays | Built-in LCD for video, audio and timecode monitoring |
| Physical Installation | 1 rack unit size. Less than 7 inches deep |
| Battery | No |
| Power Supply | 1 x built-in international AC power supply with IEC C14 inlet. 110-240V, 50-60Hz |
