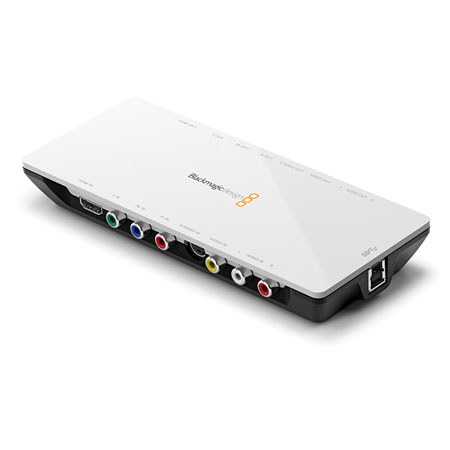

Blackmagic Design Intensity Shuttle, USB 3.0 Computers
Blackmagic Design

Blackmagic Design Intensity Shuttle for USB 3.0 Computers, Capture and Playback Professional Quality HDMI and Component Analog Video in Both SD and HD (Requires x58 based computer or better)

SKU: VDBMIS MFR: BINTSSHU
(1 review) 4
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$189.05
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech SpecsReviews

About this item

Blackmagic Design Intensity Shuttle, the world's first 10 bit HD/SD editing solution for USB 3.0 Windows computers. Simply plug in Intensity Shuttle and get access to incredible quality 10 bit HDMI, analog component, composite and s-video capture and playback. Intensity Shuttle's innovative design is compact and portable, plus you can plug inline with your cables because input connections are on one side and output connections on the other! Intensity Shuttle powers from the USB 3.0 connection so you don't need cumbersome power supplies. Intensity Shuttle comes ready with advanced video technology such as HDMI 1.3 and 1080p electronics, so it will grow as faster high performance USB 3.0 computers are released in the future!

Summary of Customer Reviews

Write a review Read all reviews
(1)
Customers most agreed on the following attributes:
Pros:
Compact (1) , High quality (1) , Improves performance (1) , Lightweight (1) , Professional quality (1) , Versatile (1)
Cons:
Above average setup (1)
Best Uses:
Home movies (1) , Independent films (1) , In the studio (1)
Reviewer Profile:
Editor (1) , Enthusiast (1) , Video professional (1)

Key Features

  • Professional Performance: Go beyond the limits of your AVCHD or HDV camera! Simply plug in using HDMI or analog and capture direct from your camera's CCD! You get incredible quality that completely bypasses the camera's video compression.
  • True HDMI Digital Connections: Intensity features HDMI-in for connecting to cameras and digital set-top boxes for the highest quality capture.
  • Go Beyond AVCHD and HDV Quality: Connect to cameras and digital set top boxes via HDMI for the highest quality. Get incredible quality video from cameras by bypassing the compression chip for professional quality video captured direct from the image sensor.
  • Use Popular Video Software: Intensity Pro works with the software you love to use! Use DirectShow and QuickTime software, or the world's most popular editing software such as Final Cut Pro and Premiere Pro!
  • Professional Video Standards: Intensity will instantly switch between HD and SD video standards including HDTV 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, NTSC and PAL.

Technical Specs

Digital Video Input 1 x HDMI input.
Digital Video Output 1 x HDMI output.
Supported HDMI formats 525 NTSC, 625 PAL, 720HD and 1080HD switchable.
HDMI Audio Input 8 Channels.
HDMI Audio Output 8 Channels.
Analog Video Input Independent connections for component and composite and s-video.
Analog Video Output Independent connections for component and composite and s-video.
Analog Audio Input 2 Channel RCA HiFi audio in 24 bit.
Analog Audio Output Analog Audio Output
SPDIF Audio Output None
Dual Rate support HDMI and Analog Component switches between high definition and standard definition.
Sync Input None
Device Control None. FireWire may be used for controlling some cameras.
Computer Interface USB 3.0
HD Format Support 1080i50, 1080i59.94, 1080i60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 720p50, 720p59.94, 720p60
SD Format Support 625i/50, 625p PAL and 525i/59.94, 525p NTSC, 480p.
HDMI Video Sampling 4:2:2
HDMI Color Precision 4:2:2
HDMI Color Space YUV 4:2:2
HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
Copy Protection For legal reasons HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Colorspace Conversion Hardware based real time.
HD Down Conversion Real time 1080HD and 720HD to standard definition during video playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3.
HD Up Conversion Real time standard definition to 1080HD and 720HD during video capture.
Real Time Effects Adobe Premiere Pro internal effects in DV, DVCPRO HD, MJPEG and uncompressed edit formats.
Firmware Upgrade Firmware built into software driver. Loaded at system start, or via updater software.
Installation Installation: USB 3.0. Requires x58 based computer or better with a USB 3.0 connection. Does not support USB 2.0 capture and playback. Please check the Blackmagic Design website for system compatibility information.
Operating System Compatibility Compatible with Microsoft Windows.
