Blackmagic Design SDI Distribution Open Gear Converter
Blackmagic Design

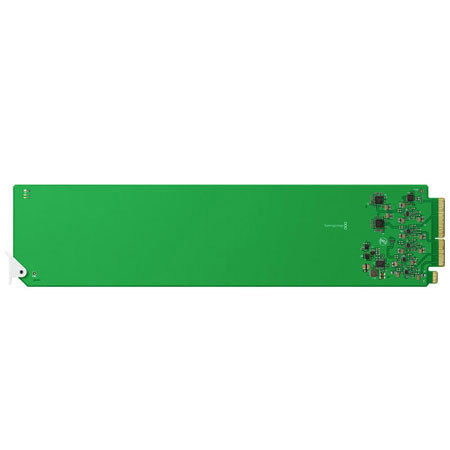

Blackmagic Design SDI Distribution Open Gear Converter

SKU: VDBMOGCSDID MFR: CONVOPENGSDIDA
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$470.25
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

When needing to send the same signal to several devices at once, OpenGear Converter SDI Distribution handles the task perfectly. Supports SD-SDI, HD-SDI, 2K and 3Gb/s SDI video formats. OpenGear Converter SDI Distribution also handles ASI. What's more, it's compatible with ancillary data and embedded audio.

Key Features

  • Open Architecture Converters! Blackmagic OpenGear Converters are fully compatible with the OpenGear standard. OpenGear is an open standard for rack mount converters and processing for television broadcasters
  • High Quality: Blackmagic OpenGear Converters are built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra low noise analog video and audio for a true broadcast quality solution
  • New 3 Gb/s SDI Technology: The latest 3 Gb/s SDI technology built into Blackmagic OpenGear Converters and new standards can be uploaded via the USB port. 3 Gb/s SDI is also fully compatible with all your SD and HD equipment
  • Auto Switching SD and HD: Blackmagic OpenGear Converters instantly switch between all SD and HD video formats the instant the video input changes. A huge range of standards are supported and new formats can be added via USB
  • Redundant SDI Input: Blackmagic OpenGear Converter models SDI to Analog and SDI to Audio, feature a unique redundant SDI input for mission critical or live broadcast tasks
  • Built in AES/EBU or Analog Audio: Blackmagic OpenGear Converters feature 24 bit analog and 24 bit digital audio. You can select either analog or AES/EBU digital audio via mini switches, or remotely via the DashBoard network control software
  • Hardware Down Converter: If you have older standard definition analog equipment in your facility then you'll know how hard it is when modern SDI equipment unexpectedly changes between SD and HD
  • Easy to Use: Blackmagic OpenGear Converters are similar, so they're easy to understand. With advanced 3 Gb/s SDI technology, every card is fully compatible with all your SD and HD equipment, plus you can update new formats via USB

Technical Specs

SDI Video Output 9 outputs automatically match the SDI video input.
SDI Video Input Switchable between SD, HD and 3 Gb/s SDI.
Analog Video No
HDMI No
Optical Fiber Video Input No
Optical Fiber Video Output No
Optical Fiber Audio Input No
Optical Fiber Audio Output No
Analog Audio No
AES/EBU Digital Audio No
SDI Redundant Input No
Reference Input No
Multi Rate Support Auto detection of HD or standard definition inputs.
Updates and Configuration No
Re-clocking Yes
SDI Format Support NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p and 2K PsF
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
SDI Video Rates SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling 4:2:2 and 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 4:2:2 and 4:4:4
SDI Color Space YUV and RGB
SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
ASI Support Yes
Analog Format Support No
HDMI Format Support No
Software Control No
Settings Control No
Firmware Upgrade No
Format Conversion No
