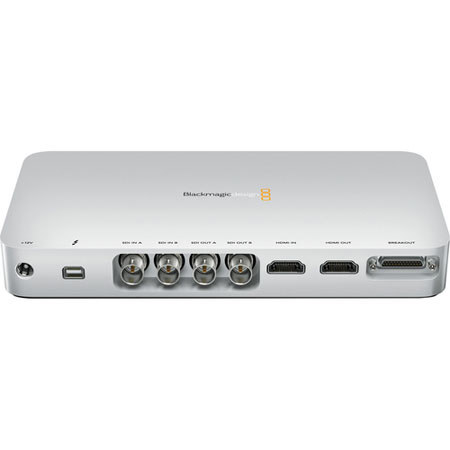

Blackmagic Design UltraStudio 3D is a Mac-compatible 3G/HD-SDI capture & playback device that connects to your computer via Thunderbolt and supports two streams of 1080p HD video for stereoscopic 3D workflows. The compact, handsome, machined-aluminum device includes all necessary capture/playback software and drivers, so setup is a breeze.
The device captures uncompressed 10-bit 4:4:4 RGB and 4:2:2 YUV video from any deck, broadcast router, or video camera with SDI output and plays it back to broadcast-quality SDI monitors. With both dual- and single-link 3G-SDI supported, resolutions up to 2K are supported, for feature film work. The Thunderbolt connection supports data rates up to a blazing 10 Gb/s, which is plenty fast to effect a direct high-speed connection to your video editing software's real-time effects processing, even for dual-stream stereoscopic productions.
UltraStudio 3D also features an HDMI 1.4a input for capture and an HDMI 1.4a output for monitoring via an HDMI-enabled television, computer monitor, or projector. RS-422 deck control is included for controlling HDCAM SR, Digital Betacam, HDCAM, D5, DVCPRO HD and other VTRs. For genlock, the device accepts a blackburst or tri-sync reference signal.
All UltraStudio 3D files are open standard DPX and QuickTime format, so you can edit with just about any software, including Apple Final Cut Pro, The Foundry's Nuke, eyeon Fusion, Digidesign Pro Tools and Adobe Premiere Pro, Photoshop and After Effects. UltraStudio 3D is qualified by Apple for Final Cut Pro compatibility, so you can batch capture from decks and play back FCP timelines with RT Extreme real-time effects. Other supported Final Cut Pro features include 10-bit rendering, 16-channel audio, deck control and support for ProRes, JPEG, DV, DVCPRO, DVCPRO HD and 8- & 10-bit uncompressed video.
Blackmagic Design UltraStudi Features
- UltraStudio 3D includes high quality HDMI 1.4a and dual HD-SDI connections for full-resolution frame-packed 3D capture and playback. Work in side-by-side, line-by-line and top & bottom formats, even with previous-generation 3D devices
- Connect all your I/O devices with single- and dual-link 3 Gb/s HD-SDI, HDMI 1.4a and analog video in and out, as well as 16 channel SDI audio I/O, genlock for bi- and tri-level sync and serial deck control
- UltraStudio 3D supports uncompressed YUV 4:2:2 and RGB 4:4:4 workflows up to full resolution 2K, so you can handle any job that comes through your door
- Built on Thunderbolt technology, UltraStudio 3D has a blazingly fast 10 Gb/s connection that's up to 20 times faster than USB 2.0. Thunderbolt also brings low latency and highly accurate time synchronization, so UltraStudio 3D is perfect for demanding stereoscopic 3D workflows
- With UltraStudio 3D's third-party software compatibility, you can seamlessly edit on your favorite NLE software such as Final Cut Pro or Premiere Pro. For compositing and broadcast design, UltraStudio 3D works with After Effects, Nuke and Photoshop
- UltraStudio 3D includes a universal power supply complete with a cable tie-down point and a set of international socket adapters for all countries. Take your editing suite with you anywhere without the need to purchase third-party adapters
- UltraStudio 3D includes everything you need for editing, paint, or broadcast design. There's a full set of drivers for capture and playback with real-time effects in Premiere Pro. There's also a set of included Blackmagic Utilities: Disk Speed Test, LiveKey and the Blackmagic software codec
- Media Express lets you batch capture and play back 2D and dual-stream stereoscopic 3D in DPX, ProRes, uncompressed YUV and RGB, DVCPRO HD and MJPEG files. You can even create your own playlist
- LiveKey lets you insert logos and other graphics in real time using SDI outputs by switching UltraStudio 3D into a standard-def or high-def keyer card. Disk Speed Test checks your disk array and gives you an easy-to-understand speed test with the results in video frames per second
