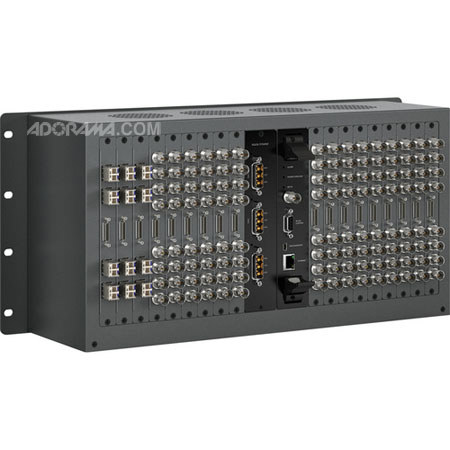

Black Magic Universal Videohub 72,Up to 72 x SDI/HD-SDI
Blackmagic Design

Black Magic Universal Videohub 72, Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI

SKU: VDBMUVH72 MFR: VHUBUV/72CH
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,845.25
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

Universal Videohub 72 is a fully scalable 3G/HD/SD and deck control routing switcher. Add either regular copper SDI or optical fiber SDI interface cards as you need, up to a 72 x 72 SDI size router. The Universal Videohub 72 rack frame is only 5 RU and 6 inches deep and can support a single 72 x 72 crosspoint card and a single power supply card.

You get full auto standard detection, re-clocking, 3 Gb/s SDI support, 72 x 72 deck control, ethernet/serial control and more. Universal Videohub 72 is a fantastic medium sized router that lets you grow. When you're ready to upgrade, all SDI interface cards, crosspoint and power supply cards can be installed into the larger Universal Videohub 288 chassis!

Key Features

  • Build it Yourself: Universal Videohub ships unpopulated, without any cards plugged in, so you are free to build your router any way you want!
  • 24/7 Broadcast Reliability: Universal Videohub is the router you need for true 24/7 reliability because its card based design lets every electronic component be easily replaced in the rare event of failure
  • True Multi Fault Redundancy: Universal Videohub 288 also offers true multiple fault redundancy, where different faults in both crosspoint cards can be handled
  • SDI Re-Clocking: Videohub also includes built in SDI re-clockers on each SDI input which regenerate the SDI video signal. Every inch of video cable from your SDI video devices degrades the SDI signal
  • Simultaneous SD, HD or 3 Gb/s Video: Videohub makes it easy to run Standard Definition and High Definition equipment now and add 3 Gb/s SDI equipment in the future
  • World's Highest Quality 3 Gb/s SDI: With the exciting new 3 Gb/s SDI connections built in, Videohub allows twice the SDI data rate than normal HD-SDI

Technical Specs

SDI Video Input Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI. Can be BNC SDI or optical fiber SDI
SDI Video Output Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI
Multi Rate Support Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI
Device Control Up to 72 bidirectional Sony compatible RS-422 deck control ports via breakout cable
Router Control Use either RJ45 Ethernet or USB 2.0 high speed interface or Smart Control shared over IP network
Router Configuration Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network
RS-422 Router Control 1 x input for controlling router crosspoint switching
Updates USB 2.0 high speed (480Mb/s) interface
Re-clocking On all SDI outputs
Reference Input Blackburst and TriSync for SD, HD and 2K
SD Format Support 625/25 PAL and 525/29.97 NTSC
HD Format Support 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
2K Format Support 2048 x 1556/23.98/24/25
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
SDI Video Sampling 4:2:2 and 4:4:4
SDI Video Rates SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI
SDI Color Precision 4:2:2 and 4:4:4 10 bit
SDI Color Space YUV or RGB
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
SDI Auto Switching Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard
Software Control Router control included free for Windows and Mac OS X
Firmware Upgrade Via included firmware updater application
Installation 5 rack unit size. Less than 6 inches deep
Power Supply Redundant power supply options are available. GPI alarm for connecting external alarms
Power Fail Protection Router connections preserved and restored instantly at power on independently of host computer
