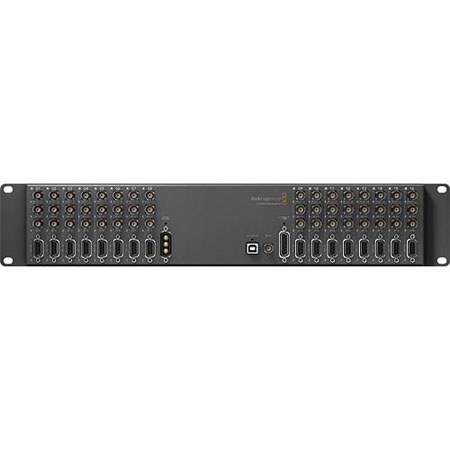

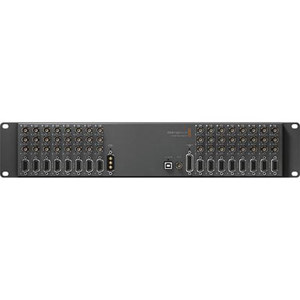

Blackmagic Design Power Supply Studio Videohub Router

SKU: VDBMVHUBST MFR: VHUB/ST
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
What's Included
What's Included With This Item:
  • Blackmagic Design Studio Videohub Router
  • 1 x Universal Power Supply
  • Controller Software (Windows & Mac)
  • Blackmagic Design 3 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,845.25
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Blackmagic Design Studio Videohub is perfect for smaller workgroups who need compact size at an affordable cost. Studio Videohub has the exact same high performance features of the larger models, including 3 Gb/s SDI, auto standard detection for SD, HD and 3 Gb/s HD-SDI formats, re-clocking and more. Studio Videohub features 16 inputs, 32 outputs and 16 deck control ports all packed into a tiny 2 rack unit size less than an inch thick. Studio Videohub uses the same power supply as the larger models and the same powerful software.

What's Included With This Item

  • Blackmagic Design Studio Videohub Router
  • 1 x Universal Power Supply
  • Controller Software (Windows & Mac)
  • Blackmagic Design 3 Years Limited Warranty

Key Features

  • No Manual Patching!: Videohub eliminates this problem because everyone is permanently connected and no cables need to be physically changed ever. All video connections are changed from an easy to use software application right from your computer desktop.
  • Industrial Strength Routing Switcher: All Videohub routers include SDI re-clocking so even the longest distance equipment from your router can be connected together. Combined with redundant power supplies, power fail protection and high reliability single PCB construction.
  • SDI Re-Clocking: Videohub also includes built in SDI re-clockers on each SDI input which regenerate the SDI video signal. Every inch of video cable from your SDI video devices degrades the SDI signal. Expensive premium grade "digital" cables can help.
  • Simultaneous SD, HD or 3 Gb/s Video: Videohub makes it easy to run Standard Definition and High Definition equipment now and add 3 Gb/s SDI equipment in the future. That's because Videohub handles mixed SD, HD and 3 Gb/s SDI connections all on the same router at the same time.
  • Independent Monitoring: Because most editors love monitoring direct from the router, Videohub has up to 144 independent SDI outputs totally dedicated for monitoring. Independent monitoring outputs are great when you need to quickly look at decks and other editing systems in your facility.
  • Deck Control Routing: With up to 144 independent Sony compatible RS-422 serial control ports included, each editing system can control any deck in your facility. Each deck control connection is independently reversible via software control.
  • World's Highest Quality 3 Gb/s SDI: With the exciting new 3 Gb/s SDI connections built in, Videohub allows twice the SDI data rate than normal HD-SDI. Use 3 Gb/s SDI for high resolution real time 2048 x 1556 feature film editing. 3 Gb/s SDI has full compatibility with SD, HD or 2K in 4:4:4 or 4:2:2
  • Network Router Control: Videohub uses software control panels that run on Windows and Mac OS X. This lets you control the router from the same system you edit on. Videohub connects to any computer via USB and is then shared over your local network.

Technical Specs

SDI Video Input 16 x 10 bit SD-SDI, HD-SDI, 3Gb/s HD and 2K switchable
SDI Video Outputs 32 x 10 bit SD-SDI, HD-SDI, 3Gb/s HD and 2K switchable
Multi Rate Support Auto detection of SD, HD or 3 Gb/s SDI
Simultaneous routing of 2K, HD and SD video
Device Control 16 x bidirectional Sony compatible RS-422 deck control ports
Serial ports TxRx pin reversible under software control
Router Control USB 2.0 high speed interface shared over IP network
Updates and Configuration USB 2.0 high speed (480Mb/s) interface
Re-clocking On all SDI inputs, auto switching between standard definition, high definition or 3 Gb/s SDI video
SD Format Support 625/25 PAL and 525/29.97 NTSC
HD Format Support 1080p24, 1080p25, 1080p30, 1080i48, 1080i50, 1080i59.94, 720p30, 720p50, 720p59.94 and 720p60
2K Format Support 2048 x 1556/23.98 and 24
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
SDI Video Sampling 4:2:2 and 4:4:4 when using 2 routes
SDI Video Rates SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI
SDI Color Precision 4:2:2 and 4:4:4 10 bit when using 2 routes
SDI Color Space YUV, or RGB when using 2 routes
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
SDI Auto Switching Automatically selects between SD-SDI, HD-SDI and 3 Gb/s SDI on each input so that each input can be running a different television standard
Software Control Router control included free for Windows and Mac OS X
Firmware Upgrade Via included firmware updater application
Installation 2 rack unit size
Power Supply 1 x Universal power supply included (IEC power cable required)
Power Fail Protection Router connections preserved and restored instantly at power on independently of host computer
Warranty Blackmagic Design 3 years limited warranty
