Grass Valley Storm 3G Ref. In / TC Out Option
Grass Valley

Grass Valley Storm 3G Ref. In / TC Out Option

SKU: VDCA600612 MFR: 600612
What's Included
What's Included With This Item:
  • Grass Valley Storm 3G
  • EDIUS 6 Software
  • Grass Valley Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$799.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

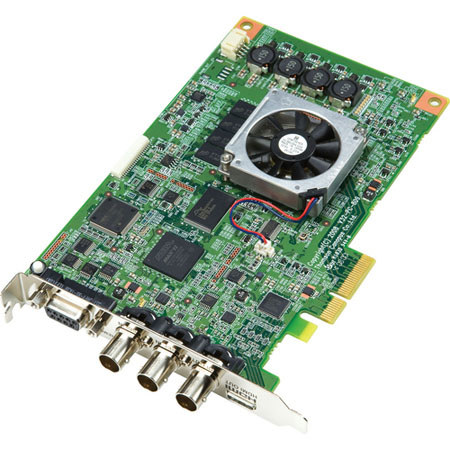

The Grass Valley STORM 3G is a PCI Express card that enhances EDIUS 6 post-production and tapeless workflows by providing 3G-SDI input/output, HDMI output with embedded audio, multi-format editing and real-time preview monitoring. Able to handle any mix of HD and SD formats--and any combination of real-time effects--the STORM 3G also supports reference input, blackburst and tri-level sync as well as machine control for ingesting from an external VTR.

With its ability to provide full-resolution effects previews directly from an EDIUS timeline to affordable HDMI monitors, the STORM 3G makes an invaluable--and cost-effective--asset to any postproduction application.

What's Included With This Item

  • Grass Valley Storm 3G
  • EDIUS 6 Software
  • Grass Valley Warranty

Key Features

  • 3G-SDI input and output with embedded audio and timecode
  • HDMI output for full-resolution, real-time monitoring from the included EDIUS NLE software
  • Embedded HDMI audio output for high-quality audio monitoring
  • Video and audio output stays perfectly in sync, with editing windows for accurate editing and trimming
  • Reference input supports bi-level or tri-level sync
  • RS-422 master or slave machine-control support 1
  • Edit any mix of SD and HD resolution video content together in real time
  • Works with many different native video formats, including AVCHD, AVC-Intra, MPEG-2, uncompressed and more
  • Supports newer file-based formats, including Infinity JPEG 2000, XDCAM HD and XDCAM EX, P2 (DVCPRO and AVC-Intra) and GFCam
  • Compatible with Windows 7 (32/64-bit), Windows Vista (32/64-bit) and Windows XP (32-bit) operating

Technical Specs

Device/Card Type and Interface PCI Express Rev. 1.1 x4 lane
Compatible Host Applications EDIUS 6 (included)
Video Formats: Input/Output (3G-SDI) 1920x1080p50/59.94
1920x1080i50/59.94
1920x1080psF23.98/24/25/29.97
1280x720p50/59.94
720x486i59.94
720x576i50
Video Formats: Output (mini HDMI) 1920x1080p50/59.94
1920x1080i50/59.94
1280x720p50/59.94
720x480i59.94
720x576i50
720x480p59.94
720x576p50
Audio Format LPCM 48kHz/24-bit
Connectors 3G-SDI Video/Audio/Timecode: BNC (x1 Input, x1 Output)
HDMI Video/Audio: Mini-HDMI (x1 Output)
Reference: BNC (x1 Input)
RS-422A Control: 9-pin D-Sub
3G-SDI Video: SMPTE-292M, SMPTE-259M-C
3G-SDI Embedded Audio: SMPTE-299M, SMPTE-272M-A
3G-SDI Timecode: LTC/VITC Packet (HD), D-VITC (SD)
Mini-HDMI Video: YCbCr 4:2:2 or RGB 4:4:4 (8-bit/10-bit)
Mini-HDMI Audio: LPCM 8-channel (24-bit/48 kHz)
Power Requirements +12V: 1.6A
+3.3V: 0.5A
Regulatory Compliance CE, FCC CLASS B, C-Tick
Minimum System Requirements 1 Any Intel Core 2 or Core iX CPU. Intel or AMD single core CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended). SSE2 and SSE3 instruction set supported.
Minimum System Requirements 2 1 GB RAM (2 GB or more recommended)
One free PCI Express x1 bus slot
800 MB or more space required for software installation
Drive with ATA100/7,200 rpm or faster capable of sustaining at least 20 MB/s data transfer
Available hard disk space should be twice the size of the file to be edited
A RAID stripe set of two or more hard disk drives is required for multiple HD stream output
Minimum System Requirements 3 A graphics card with at least 256 MB of graphics memory (512 MB recommended) with support for Direct3D 9.0c or later and PixelShader Model 3.0 or later is required (PixelShader Model 4.0 or later recommended)
Sound card with WDM driver support required
DVD-ROM drive is required for software installation. For writing onto DVD or Blu-ray disc, a compatible drive is required
Free USB port (1.1 or higher) is required for security key
Minimum System Requirements 4 Windows XP (SP3 or later, 32-bit)
Windows Vista (SP1 or later, 32-bit or 64-bit)
Windows 7 (32-bit or 64-bit)
Dimensions 4.4 x 6.6" (11.1 x 16.8 cm)
