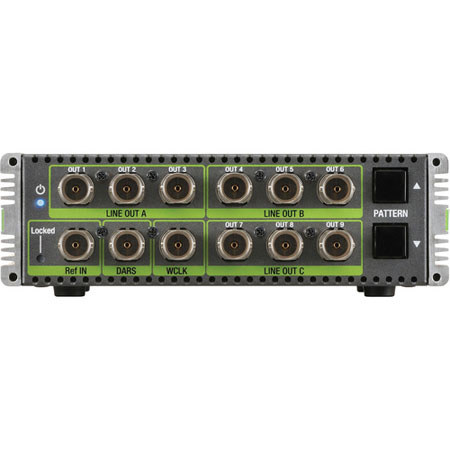

Grass Valley ADVC-G4 Sync Generator is more than just a compact and robust sync generator. The ADVC G4 has nine outputs that can be individually controlled in groups of three. For example, three outputs can be SD, the other six can be HD, or vice versa. The ADVC G4 also includes a 48 kHz wordclock as well as a reference input, which allows it to be used as an extender when more than nine outputs are needed, or when an extension from the main system is necessary.
| Inputs | Reference |
| Outputs | 9X outs, 48 kHz word-clock, DARS audio |
| HD Sync | Tri-level |
| SD Sync | Blackburst (BB) |
| AES | AES-11, 48 kHz, silent |
| Input/Output Formats | SMPTE 274M: 1080i60/59.94/50,1080p/ Psf30/29.97/25/24/23.98 SMPTE 296M: 720p60/59.94/50/30/ 29.97/25/24/23.98 NTSC: 480i/59.94 PAL: 576i/50 |
| Dimensions (W x H x D) | 142 x 43.1 x 98.8 mm/5.59 x 1.69 x 3.88" |
