Item Includes
Grass Valley / Canopus ADVC-HD50 Converter Unit - User Manual - 1 x FireWire Cable (6-pin - 6-pin) - Grass Valley / Canopus 1 Year Limited Warranty
|
Description

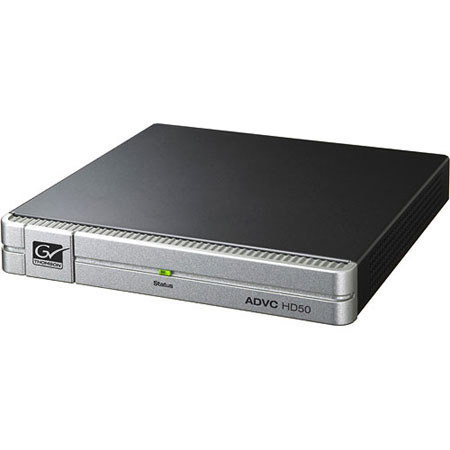

The Grass Valley / Canopus ADVC-HD50 converter lets you instantly convert uncompressed HD video and audio from HDMI devices to the HDV format, output via IEEE 1394 FireWire, for use in your nonlinear editor of choice. Carrying on the design philosophy already present with standard definition (SD) ADVC, the ADVC-HD50 converter sports a sleek, portable design with an emphasis on simplicity and compatibility; the converter does not require any drivers or software to set up and is compatible with both PC- and Mac-based editors.
The ADVC-HD50 converter will convert any uncompressed HDMI source, such as an AVCHD camcorder, to the HDV format for easier editing. This also reduces the need for a high-performance system or costly hard disk drive storage configurations to work with uncompressed HD video. The converter may also be used to convert non-HDCP-protected video from other HDMI sources, such as game consoles and set-top boxes. |
Features
 |
Connects HDMI-equipped video equipment to FireWire (IEEE 1394)-equipped computers and devices for video editing |
|
Converts 1280x720 HDMI to 1280x720 HDV and 1920x1080 to 1440x1080 HDV |
|
Compatible with Windows and Macintosh operating system-based HDV editors |
|
No need to install drivers or any software applications |
|
Powered by FireWire (IEEE 1394) connector |
|
NTSC- and PAL-compatible |
Specifications
| Digital Video/Audio Input | 1 x HDMI Connector (HDCP not supported) |
| Digital Video/Audio Output | 1 x 6-pin FireWire |
| Supported Video Input Resolutions | 920x1080 (59.94i, 50i), 1280x720 (59.94p, 50p)
720x480 (59.94p), 720x576 (50p), 640x480 (60p) |
| Supported Audio Input Formats | LPCM 2ch at 16-24bit, 32/44.1/48kHz |
| Video Output Formats | HDV Mode-1 (720p): 1280x720/59.94p, 1280x720/50p
HDV Mode-2 (1080i): 1440x1080/59.94i, 1440x1080/50i
IEC61883-4 MPEG Transport Stream |
| Audio Output Format | Stereo MPEG-1 Audio Layer 2 384kbps (multiplexed) |
| HDMI Output Devices | Cameras / Decks
Sony: HDR-HC7, HDR-SR1, HDR-UX1, HVR-V1J, HVR-M25J, HDR-HC9E, HDR-Z7J
Panasonic: HDR-SD3 (HDC-SD3-S), HDC-DX1-S
Converters
Gefen: Component Audio to HDMI Adapter
Kurotoshiko: RH2600PRO-E256HW
Other
Blackmagic Design: Intensity Pro capture card
Panasonic: DMR-BW200 Blu-ray Disc player |
| HDV Input Devices | Cameras / Decks
Sony: HVR-M25J, HVR-Z7J, HDR-HC7
PC (OHCI-compatible IEEE 1394 FireWire)
Windows-based (x86)
Windows XP SP2: EDIUS Pro/EDIUS Broadcast v4.60, Adobe Premiere Pro 2.0
Windows Vista: Windows Movie Maker
Windows Vista SP1: EDIUS Neo, Windows Movie Maker (ver 6.0.6000.16386)
Mac
Mac OS X (10.4.3, 10.5.2): iMovie 6.0.3, Apple Final Cut Pro 5, Apple Final Cut Pro 6.0
Other
Thomson Grass Valley HDCS7000 Video Distribution Unit |
| Power Source | IEEE 1394 bus powered or DC5V from EIAJ#2 DC jack |
| Power Usage | 8W |
| Dimensions | 152 x 153 x 23mm (W x D x H) |
| Weight | 400g (approx.) |
| Warranty | Grass Valley / Canopus 1 year limited warranty |
| | |
|
