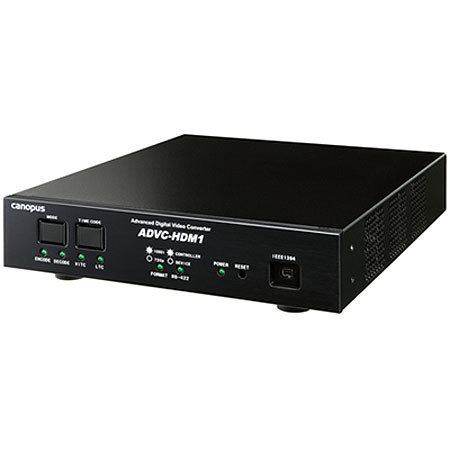

| Digital Video |
4-pin FireWire
6-pin FireWire |
| Supported Encoding formats |
MPEG-2 transport stream
HDV (auto select)
HD1: 720/30p, 720/25p (video bit rate: 18.3 Mb/s; audio stream: stereo MPEG Audio Layer 2, 384 kb/s)
HD2 1080/59.94i, 1080/50i (video bit rate: 25 Mb/s; audio stream: stereo MPEG Audio Layer 2, 384 kb/s)
Additional formats (dip switch select)
Video bit rate: 11-, 14-, 16-, 18-, 20-, 25-, 30-, 40 Mb/s
Audio stream: MPEG Audio Layer 2, 384 kb/s |
| Supported Decoding formats |
MPEG-2 transport stream
HDV (auto select)
HD1: 720/30p, 720/25p
HD2: 1080/59.94i, 1080/50i
Additional formats (dip-switch select)
Profile/Level: MP @ HL, MP @ H14
Resolution/frame rate: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
HD-SDI in (BNC)
HD-SDI active-through (BNC)
2x HD-SDI out (BNC) |
| Digital Audio Input |
HDV 2-channel
HD-SDI 2-channel embedded audio (SMPTE 299M Ch1, Ch2 only) |
| Digital Audio Output |
HDV 2-channel
HD-SDI 2-channel embedded (SMPTE 299M stereo, 16 bit, 48 kHz, locked) |
| Time Code |
LTC in (BNC)
LTC out (BNC)
DVITC in (decoded from HD-SDI input)
DVITC out (encoded in HD-SDI output) |
| Reference |
Input (BNC)
Loop-through (BNC) |
| Device Control |
AV/C over 1394
RS-422A (control)
RS-422A (device)
RS-232C (external control) |
| Display |
Front-panel status
Mode select |
| Power |
Includes DC adapter (12V, 2A) |
| Operating temperature |
10 to 35°C |
| Storage temperature |
-20 to 60°C |
| Maximum humidity |
80% (no condensation) |
| Width |
215 mm (8.46 in.) |
| Height |
44 mm (1.73 in.) |
| Depth |
241 mm (9.49 in.) |
| Warranty |
Grass Valley / Canopus 1 year limited warranty |
