Grass Valley / Canopus Pegasus and Procoder 3 Bundle
Grass Valley

Grass Valley / Canopus Pegasus & ProCoder 3 Bundle

SKU: VDCAPP3B MFR: 685268
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
What's Included
What's Included With This Item:
  • Grass Valley / Canopus Pegasus Bus Card
  • Pegasus Installation CD-ROM
  • Installation Guide
  • 1 x 15-pin D-sub RGB to 9-pin miniDIN Converter Cable
  • 1 x YPbPr Component to 7-pin miniDIN Converter Cable
  • 1 x RCA Composite to S-Video Connector
  • 1 x Ferrite Core
  • 2 x Grounding Gasket
  • 1 x 4-pin to 4-pin Internal Audio Cable
  • ProCoder 3 Software CD
  • ProCoder 3 USB Hardware License Key
  • ProCoder 3 Manual
  • Grass Valley / Canopus 1 Year (Pegasus) and 90 Days (ProCoder 3) Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$999.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

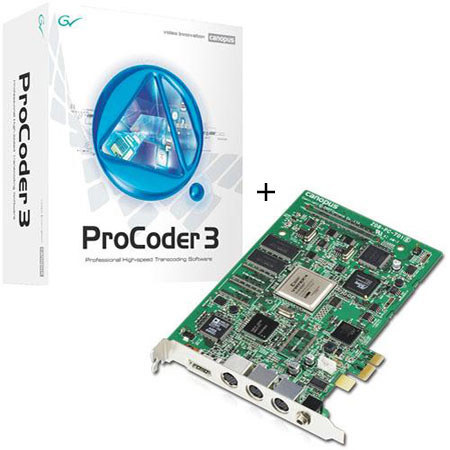

The Grass Valley / Canopus Pegasus is a high-quality video capture system comprised of PCI Express hardware and software. Capable of accepting input from a variety of standard definition (SD) and high definition (HD) sources, including PC graphics and featuring a Canopus HQ hardware codec chip, Pegasus lets you preview, capture and store footage in pristine quality - perfect for archiving or delivering out via SD and HD mediums.

The Grass Valley / Canopus Pegasus is an easy-to-use solution for capturing video for use in demonstration and training videos. Pegasus' inputs include S-Video, YUV and RGB analog and HDMI, making it ready for today's range of video game consoles. With the included converter cable, you can also capture VGA output - ideal for creating tutorials of your software. But it doesn't end there, as Pegasus can also capture external two-channel analog audio and up to eight channels of embedded audio via HDMI.

The Grass Valley ProCoder 3 software combines speed and flexibility into a streamlined video conversion tool. Widely acknowledged as the world's leading software transcoder, it features extensive input/output options, advanced filtering, batch processing and an easy-to-use interface.

Whether encoding MPEG video for DVD production, producing Windows Media for streaming, or transcoding between NTSC and PAL, ProCoder software makes video format conversion quick and easy. With it you can encode a single source to multiple targets simultaneously, run multiple conversion jobs back-to-back in batch mode, or use drag-and-drop preset icons to start conversion with a single click.

What's Included With This Item

  • Grass Valley / Canopus Pegasus Bus Card
  • Pegasus Installation CD-ROM
  • Installation Guide
  • 1 x 15-pin D-sub RGB to 9-pin miniDIN Converter Cable
  • 1 x YPbPr Component to 7-pin miniDIN Converter Cable
  • 1 x RCA Composite to S-Video Connector
  • 1 x Ferrite Core
  • 2 x Grounding Gasket
  • 1 x 4-pin to 4-pin Internal Audio Cable
  • ProCoder 3 Software CD
  • ProCoder 3 USB Hardware License Key
  • ProCoder 3 Manual
  • Grass Valley / Canopus 1 Year (Pegasus) and 90 Days (ProCoder 3) Limited Warranty

Key Features

  • High-quality capture of HD and SD video using an onboard Canopus HQ hardware encoding chip
  • Capture up to 1920x1080/60i, 50i and 1280x720/60p, 50p video
  • Capture PC display signals up to 1280x1024 without downscaling
  • Capture via HDMI, DVI, S-Video, YUV and RGB component inputs
  • Includes the HQ Recorder capture software, providing three capture modes: Auto capture (when an input signal is detected), Manual capture and Scheduled capture
  • Includes the Canopus Codec Pack, providing import of Canopus HQ AVI files in Windows-based video applications
  • Software Development Kit (SDK) for software engineers to create their own Pegasus-based solutions
  • Professional high-speed, high-quality encoding and conversion of video to all popular formats including MPEG-1, MPEG-2, Windows Media, QuickTime and more
  • Grid encoding for MPEG-2 (transport stream, program stream) - support for multiple CPUs within one PC (including dual and quad core CPUs). Applies to 'HDV Target' and 'Preview DVD target' settings NEW
  • Watch folder function for automated encoding
  • Job queuing manager with priority functions
  • Stitching of multiple source files to create a single file
  • Simultaneous creation of multiple target files
  • Aspect ratio conversion
  • NTSC/PAL conversion
  • Frame rate interpolation and conversion
  • Timecode creation and preservation NEW
  • Automatic adaptive deinterlacing
  • 3:2 pulldown
  • Inverse telecine NEW
  • Multi-pass VBR processing
  • Full HD support for MPEG and Windows Media
  • VOB file and DVD-Video image creation with chapter points
  • Save droplets for quick, drag-and-drop conversion
  • Separate audio import/export options including multiplexing

Technical Specs

Digital Video Input 1 x HDMI Connector (HDCP not supported)
Analog Video Input 1 x 7-pin miniDIN (Analog YPbPr component)
1 x 4-pin miniDIN (S-Video, composite video)
1 x 9-pin miniDIN (Analog RGB)
Analog Audio Input 1 x Stereo minijack
Analog Audio Output 1 x 4-pin connector for internal PC connection (AUX)
Supported HDMI Input Resolutions 1920x1080/59.94,60i
1920x1080/50i
1280x720/59.94,60p
1280x720/50p
720x480/59.94,60p
720x576/50p
720x480/59.94,60i
720x576/50i
640x480/59.94,60p
Supported DVI Input Resolutions 1280x1024/60p
1024x768/60p
800x600/60p
640x480/60p
Supported Analog RGB Input Resolutions 1280x1024/60p
1024x768/60p
800x600/60p
640x480/60p
Supported Analog Component Input Res 1920x1080/59.94i
1920x1080/50i
1280x720/59.94p
1280x720/50p
720x480/59.94p
720x576/50p
720x486/59.94i
720x576/50i
Supported Composite, S-Video Input Res 720x486/59.94i
720x576/50i
Video Capture File Format AVI(Canopus HQ, LPCM)
Video Capture Resolution 1920x1080
1440x1080 (1920 3/4)
1280x1080 (1920 2/3)
1280x1024
1280x720
960x720 (1280 3/4)
1024x768
800x600
720x576
720x486
720x480
640x480
Line In, Monitor Out Stereo at 24bit 48kHz
HDMI Input LPCM 2-8ch at 24bit 32/44.1/48kHz
Processor required Pegasus: Intel Pentium 4 2.80GHz CPU or faster (AMD CPU also supported)
ProCoder 3: Intel Celeron, Intel Pentium III, Intel Pentium 4, AMD Athlon, AMD Athlon XP or AMD Duron processor, 800 MHz CPU or faster (multiprocessor and hyper-threading support included)
Memory required Pegasus: 1GB RAM (2GB RAM recommended)
ProCoder 3: 256 MB RAM (512 MB of RAM required for HD encoding)
Hard drive space required Pegasus: 40MB free disk space for the drivers and application software
ATA 3GB/s, 7200rpm or faster hard disk for video capture (if capturing graphics output from the same PC, a second physical hard disk drive is recommended)
ProCoder 3: 80 MB free disk space
Operating System required Pegasus: Windows Vista x86 (Ultimate, Enterprise, Business, Home Premium/Basic), Windows XP Home or Windows XP Professional (Service Pack 2 or later)
ProCoder 3: Windows XP Home or Windows XP, Professional (SP2 or later, 32-bit), Windows Vista (SP1 or later, 32-bit or 64-bit), including the following operating systems:
Windows Vista Home Basic
Windows Vista Home Premium
Windows Vista Business
Windows Vista Ultimate
Graphics Card Pegasus: Graphics card with support for PixelShader Model 2.0 (i.e. DX9-based) or hardware-based DirectDraw overlay and 32-bit color display at a 1024x768 resolution
ProCoder 3:
PCI Slot required Pegasus: One free PCI Express bus slot
Other requirements (Pegasus) Pegasus & ProCoder 3: DirectX 9.0 or later

ProCoder 3: One free USB port (1.1 or higher)
Source Formats (ProCoder 3) Canopus DV
Canopus HQ
Microsoft DV
H.264
AVCHD
Dolby Digital
Video for Windows codecs
DirectShow codecs
QuickTime codecs
MPEG-1, MPEG-2
Macromedia Flash (video only)
Windows Media
DivX
MP3 and PCM .wav files
AVISynth script files
Still images including .bmp, .tga, .tif,.png and .jpg
Watch folder function for automated encoding
Target Formats (ProCoder 3) Canopus DV
Canopus HQ
Microsoft DV
H.264
Dolby Digital
iPod (MPEG-4)
MEDIAEDGE (MPEG-2, MPEG-4)
Most Video for Windows codecs
Most DirectShow codecs
Most QuickTime codecs
MPEG-1, MPEG-2 (using Canopus codec)
VOB (DVD-video image)
ACM codecs
Macromedia Flash video
Windows Media
RealVideo
MP3 and PCM .wav files
Video Filters (ProCoder 3) 601 to 709 color correction (ITU-R BT 601 SD to ITU-R BT 709-5 HD)
709 to 601 color correction (ITU-R BT 709-5 HD to ITU-R BT 601 SD)
601 correction - expand color space
601 correction - shrink color space
Adaptive de-interlace
Bitmap keying
Black/white correction
Blur
Circular blur
Color correction
Color safe
Crop
Fade in/out
Gamma correction
Gaussian blur
Median
Pull-down
Rotate
Sharpen
Temporal noise reducer
Audio Filters (ProCoder 3) Low pass
Normalize
Volume
Warranty Grass Valley / Canopus 1 year (Pegasus) and 90 days (ProCoder 3) limited warranty
