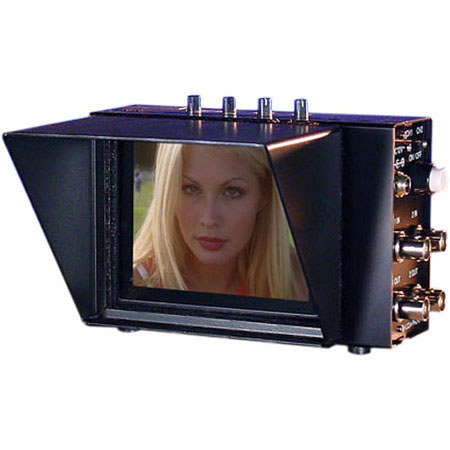

Glidecam L-4, DC Powered Pro 4" TFT LCD Monitor.
Mfr. Part: L4PRO SKU: VDGCL4
|
|
 |
|
|
|
Description
| The Glidecam L4-Pro active matrix, LCD monitor is ideal for use wherever a compact, lightweight, high quality picture, LCD monitor is required. The L4-Pro works perfectly when used as a remote viewing monitor on the base platform of either the Glidecam V-8, V-16, V-20 or 4000 Pro professional camera stabilizers. Weighing only 16 ounces, and easily powered by an external 12 volts DC 500mA battery or power supply, the L4-Pro can also be used directly on top of your camera as an oversized viewfinder or be attached virtually anywhere. |
Specifications
| Display Type | 4 inch TFT (thin film transistor) Active Matrix full color display (fast response, with no streaking, wide viewing angle). |
| Picture Elements | 234(V) x 480(H). |
| Back Light | Built in (CCFT). |
| Signal | Two NTSC inputs (or two PAL inputs on the PAL version). |
| Controls | Brightness, color intensity, tint, red drive, blue drive. |
| Dot Pitch | 0.171(W) x 0,264(H). |
| Mounting Holes | one 1/4" 20 threaded mounting hole is centrally located on the base. |
| Video I/O | Switchable dual video BNC inputs. |
| Power Connectors | Coaxial DC Jack (which requires an external Coaxial DC Plug with 2.1 mm I.D. x 5.5mm O.D.). |
| External Power Voltage | 12 Volts DC 500mA. |
| Weight | One pound (16 ounces). |
| Dimensions | 5.51" W x 3.62"H x 1.81" D. |
| | |
|
|
|
|
|
|
|
|
