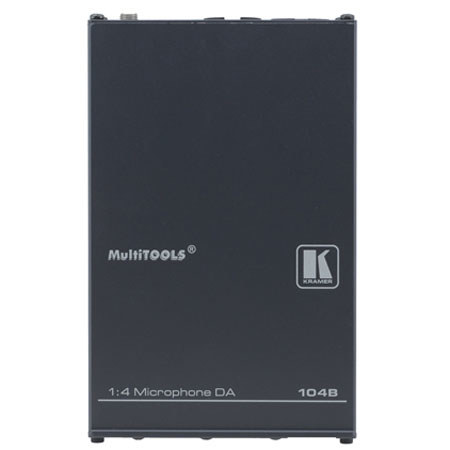

Kramer 104B 1:4 Microphone Distribution Amplifier
Kramer Electronics

Kramer 104B 1:4 Microphone Distribution Amplifier

SKU: VDKR104B MFR: 104B
What's Included
What's Included With This Item:
  • Kramer 104B 1:4 Microphone Distribution Amplifier
  • Power Supply
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$396.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer 104B is a high-quality distribution amplifier for balanced mono microphone signals on XLR connectors. It takes one microphone input and distributes the signal to four identical outputs.

What's Included With This Item

  • Kramer 104B 1:4 Microphone Distribution Amplifier
  • Power Supply
  • Kramer 7 Years Limited Warranty

Key Features

  • Mic Input Selector - Condenser or dynamic
  • Phantom Power - 48V DC
  • S/N Ratio - 86dB
  • Level (Gain) Control - Master -3.2dB to +6.7dB
  • Compact MultiTOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adapter

Technical Specs

Input 1 microphone mono balanced on an XLR female connector
Outputs 4 microphone mono balanced on XLR male connectors
Max. Output Level 5.5Vpp
Bandwidth (-3dB) >100kHz
S/N Ratio 86dB
Controls -3.2dB to +6.7dB level
Coupling AC (input), DC (output)
Audio THD + Noise 0.13%
Audio 2nd Harmonic 0.005%
Power Source 12V DC, 193mA
Dimensions 16. 2cm x 4.36cm x 10.7cm (6.36" x 1.72" x 4.2") (W x D x H)
Weight 0.15kg (0.55lbs) approx
Warranty Kramer 7 years limited warranty
