Kramer 104R 1:4 RF Distribution Amplifier
Kramer Electronics

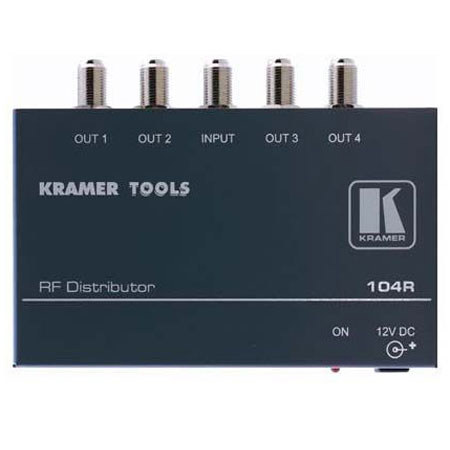

Kramer 104R 1:4 RF Distribution Amplifier

SKU: VDKR104R MFR: 104R
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer 104R 1:4 RF Distribution Amplifier
  • 12V DC Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$100.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Kramer 104R is a high-performance distribution amplifier for RF signals. It takes one RF (CATV/MATV) signal and distributes it to four identical outputs.

What's Included With This Item

  • Kramer 104R 1:4 RF Distribution Amplifier
  • 12V DC Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty

Key Features

  • High Bandwidth - 3000MHz
  • RF Gain - +6dB across band
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input 1 RF, 0.5Vpp/75 Ohm (max.) on an "F" type connector
Output 4 RF, 0.5Vpp/75 Ohm (max.) on "F" type connectors
Bandwidth (-3dB) 3000MHz
Coupling AC
RF Gain +6dB typical across band
Noise Figure 3.5dB
Power Source 12V DC, 80mA
Dimensions 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W x D x H
Weight 0.32kg (0.71lbs) approx
Warranty Kramer 7 years limited warranty
