Kramer Electronics 401C Y/C to Compost Format Converter
Kramer Electronics

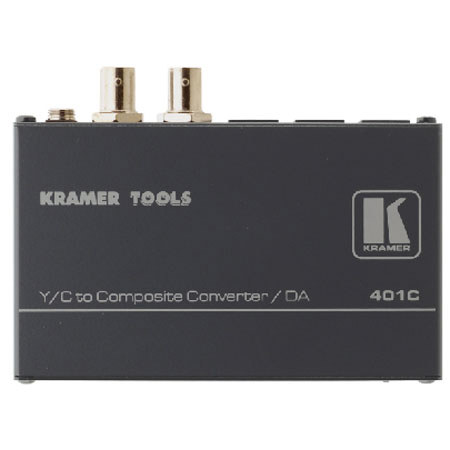

Kramer Electronics 401C Video Signal Converter and Distribution Amplifier, Y/C to Composite Video

SKU: VDKR401C MFR: 401C
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics 401C Y/C to Compost Format Converter
  • AC Power Supply
  • Kramer Electronics Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$140.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics 401C Video Signal Amp

The 401C is a combination of two video devices in one, it is a distribution amplifier and a format converter in one small package. This unit accepts a Y/C (s-video) signal in and distributes it to four outputs. Two of the four outputs are Y/C and the other two are converted to a composite signal.

Kramer Electronics 401C Video Signal Amp Includes

  • Kramer Electronics 401C Y/C to Compost Format Converter
  • AC Power Supply
  • Kramer Electronics Warranty

Kramer Electronics 401C Video Signal Amp Features

  • Video Distribution Capabilities: Accepting one Y/C(s-video) signal input the 401C distributes a very clean Y/C signal to two 4P outputs and also two composite BNC outputs
  • Format Changing: An S-video signal breaks into two parts Y(Luminance) and C(Chroma) on a 4P connector; this unit creates a format change to composite by combining the Y and C signals and outputing the composite video to BNC connectors
  • Compact Size: Part of the Comprehensive mini series, multiple units will fit into a single rack space using optional mounts
  • 12 Volt DC Operation: On location or in the field this unit will operate on most 12 VDC power sources making it incredibly portable

Kramer Electronics 401C Video Signal Amp Specifications

Input One s-video(Y/C)
(Y)1 Vpp @ 75 ohms
(C) 0.3 Vpp @ 75 ohms
on a 4P connector
Output Two s-video(Y/C), (Y) 1 Vpp @ 75 ohms, (C) 0.03 Vpp @ 75 ohms on 4P connectors
Two composite video 1Vpp @ 75 ohms on BNC connectors
Video Bandwidth 160 MHz -3 dB(Y)
Video Signal-to-Noise Ratio Better than 80 dB (Y channel)
Differential Phase 0.03deg.
Differential Gain 0.05%
Video Controls No
Power Source 12 VDC @ 60 mA on an AC adapter
Dimensions (W x D x H) 4.7 x 2.95 x 0.98"/ 12 x 7.5 x 2.5cm
Weight 0.62 lbs
0.28 kg
